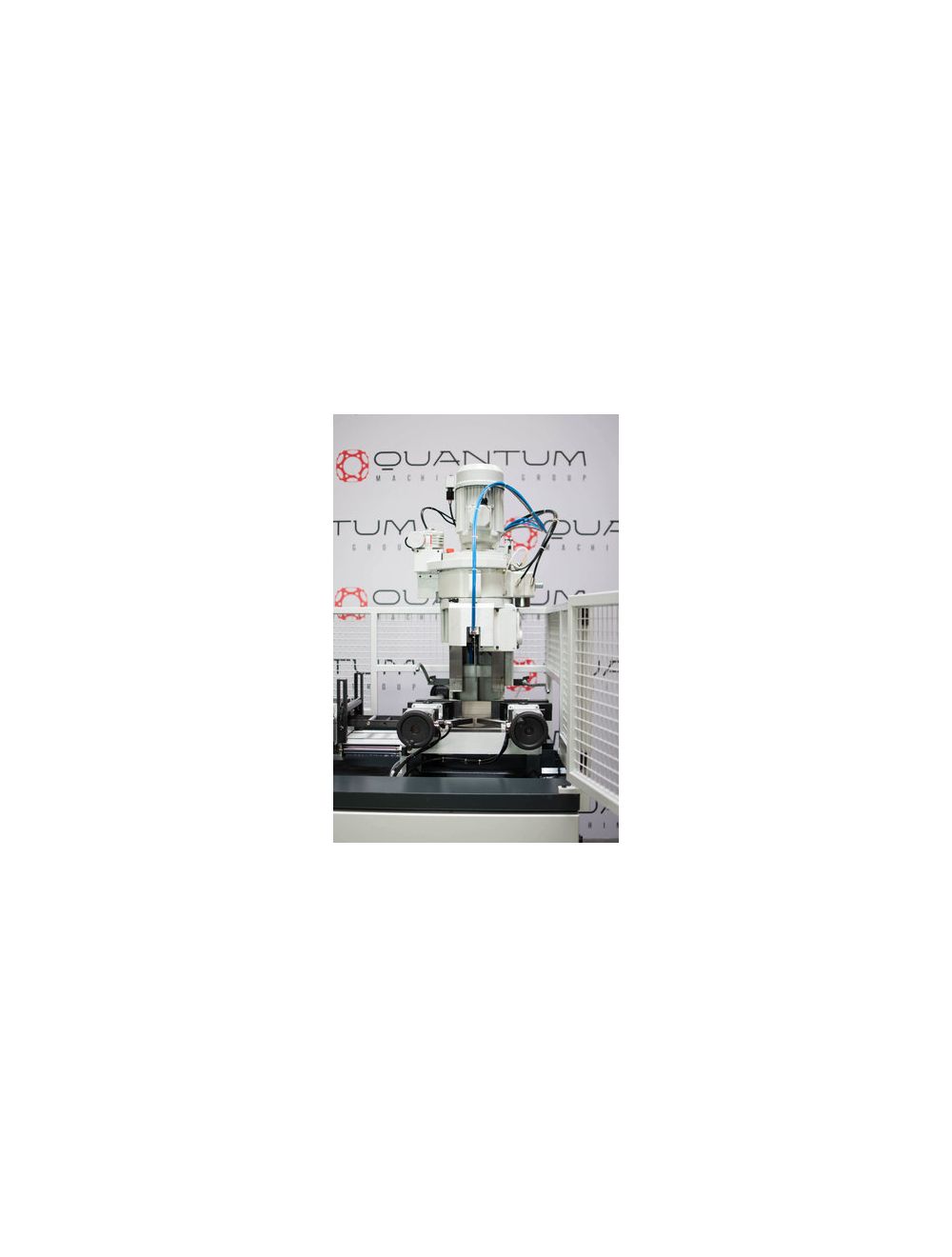

The Quantum Macc NTA 370 GA Vertical Double-Column, Fully-Automatic Cold Saw is the end-all-solution for most of your metal cutting needs! The NTA 370 GA has a fully-programmable, moveable head that can automatically miter up to 45 degrees right and can automatically miter up to 45 degrees left via the mounted CNC Touchscreen Control; which allows you to have complete control over the cutting lengths, mitering points, and much more! The NTA 370 GA sports a vice that is complete with a 2nd Vice, Variable Speed Inverter, an Anti-Burr Device, and a high-quality, Italian Motor Pump for smooth blade lubrication. The quality, build, and innovation of this unit make it unique to the market, to help further advance any shop with their metal cutting needs, allowing you to get miles ahead of the competition!
Cycle start is obtained by pressing the relevant start pedal. The machine performs the following operations during the cutting cycle:
Feeding of Material.
Closing of Vice and Fixed Vice will Lock.
Activation of Blade Motor, Rotation of the Blade and Delivery of Coolant.
Cutting Head Begins Down-Stroke. (While the head is descending to make the cut, the Feeding Carriage will return to the fixed measure - preparing itself for the next step of feeding the material).
Completes Cut & Head Returns to Initial Position as Blade Motor and Coolant Stops.
The Vice will then Open (if there is another step, the step feeder will then begin to feed).
Round Tube Cutting Capacities:
Round Tube Cutting at 90° (Straight Cut): 3"
Round Tube Cutting at 45° Left: 3"
Round Tube Cutting at 45° Right: 3"
Square Tube Cutting Capacities:
Square Tube Cutting at 90° (Straight Cut): 3"
Square Tube Cutting at 45° Left: 3"
Square Tube Cutting at 45° Right: 3"
Rectangular Tube Cutting Capacities:
Rectangular Tube Cutting at 90° (Straight Cut): 3-7/8" x 3"
Rectangular Tube Cutting at 45° Left: 3-7/8" x 3"
Rectangular Tube Cutting at 45° Right: 3-7/8" x 3"
¢â‚¬â€ Blade Size Used: 370 x 2.5 x 32mm Bore HSS Blade
¢â‚¬â€ Cost Per 370mm Blade: $150 Each
¢â‚¬â€ 2 Speeds: 15 up to 90 R.P.M.
¢â‚¬â€ Weight: 2,140 lbs. (970 kg.)
¢â‚¬â€ Maximum Vice Opening: 4.9¢â‚¬Â (125mm)
¢â‚¬â€ Step Feeder Stroke Length: 23.60¢â‚¬Â
¢â‚¬â€ Overall Dimensions: 138¢â‚¬Â Width x 48¢â‚¬Â Length x 75¢â‚¬Â Height (3500 x 1200 x 1900 mm)
¢â‚¬â€ The NTA 370 GA can store up to 9 programs, each of them with 99 steps for a total of about 890 cutting positions with relevant piece-counter.
¢â‚¬â€ Tempered and ground vertical slider along with Tempered and ground vice jaws
¢â‚¬â€ Head lowering adjustment.
¢â‚¬â€ Equipped with the Shave breaker, Additional Vice with Vice Pressure Regulator, Variable Speed Inverter with Lowering Head Adjustment and Anti-Burr Device.
