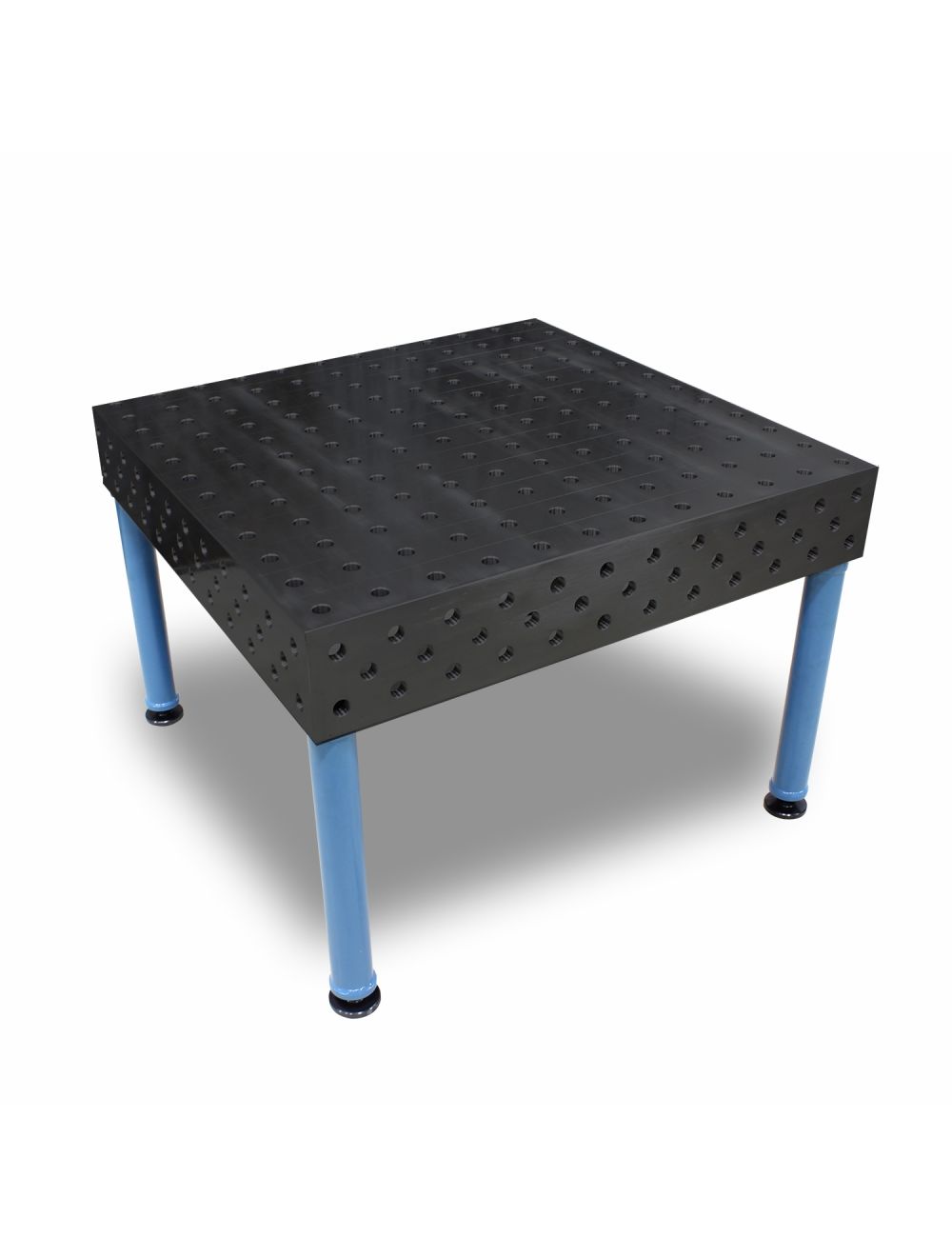

Baileigh WELDING TABLE WJT-4747-HD
The WJT-4747-HD has a table size of 47" x 47" and has a total of 5 mourning surfaces that use Industry standard 28mm holes that are spaced at 100mm to ensure the most options with the strongest holding power.
Made from 250 cast iron, the WJT-4747-HD welding jig table from Baileigh Industrial is made to withstand the rigors of any shop. All of Baileigh Industrial's welding tables are made to exact tolerances and maintain flatness of +/- .0025" and have a hardness rating of 140 to 160 Brinell.
DESCRIPTION
The WJT-4747-HD has a table size of 47" x 47" and has a total of 5 mourning surfaces that use Industry standard 28mm holes that are spaced at 100mm to ensure the most options with the strongest holding power.
Made from 250 cast iron, the WJT-4747-HD welding jig table from Baileigh Industrial is made to withstand the rigors of any shop. All of Baileigh Industrial's welding tables are made to exact tolerances and maintain flatness of +/- .0025" and have a hardness rating of 140 to 160 Brinell.
- 47' x 47' table
- Made from 250 Cast Iron
- Brinell Hardness 140~160
- 5 Mounting Surfaces
- Expandable
- 2 ton weight capacity
- Industry Standard 28mm Mounting holes
- 100mm hole spacing
- Etched Position Marks
SPECIFICATIONS
| Item Number | WJT-4747-HD |
|---|---|
| Working Table Size | 47" x 47" |
| Table Load Capacity | 2 Tons |
| Table Height | 33.5" |
| Shipping Weight | 1040lbs |
| Table Flatness | +/- .0025" |
| Number of Mounting Surfaces | 5 |
| Mounting Hole Size | 28mm |
| Mounting Hole Spacing | 100mm |
| Shipping Dimensions (Inches) | 57x49x30 |
| Dimensions L x W x H | 50" x 50" x 50" |
* specifications subject to change without notice.
| Shipping Cost | 230 |
|---|---|
| Shipping Calculation: | All Shipping Costs are calculated after order is placed and inventory is confirmed |
