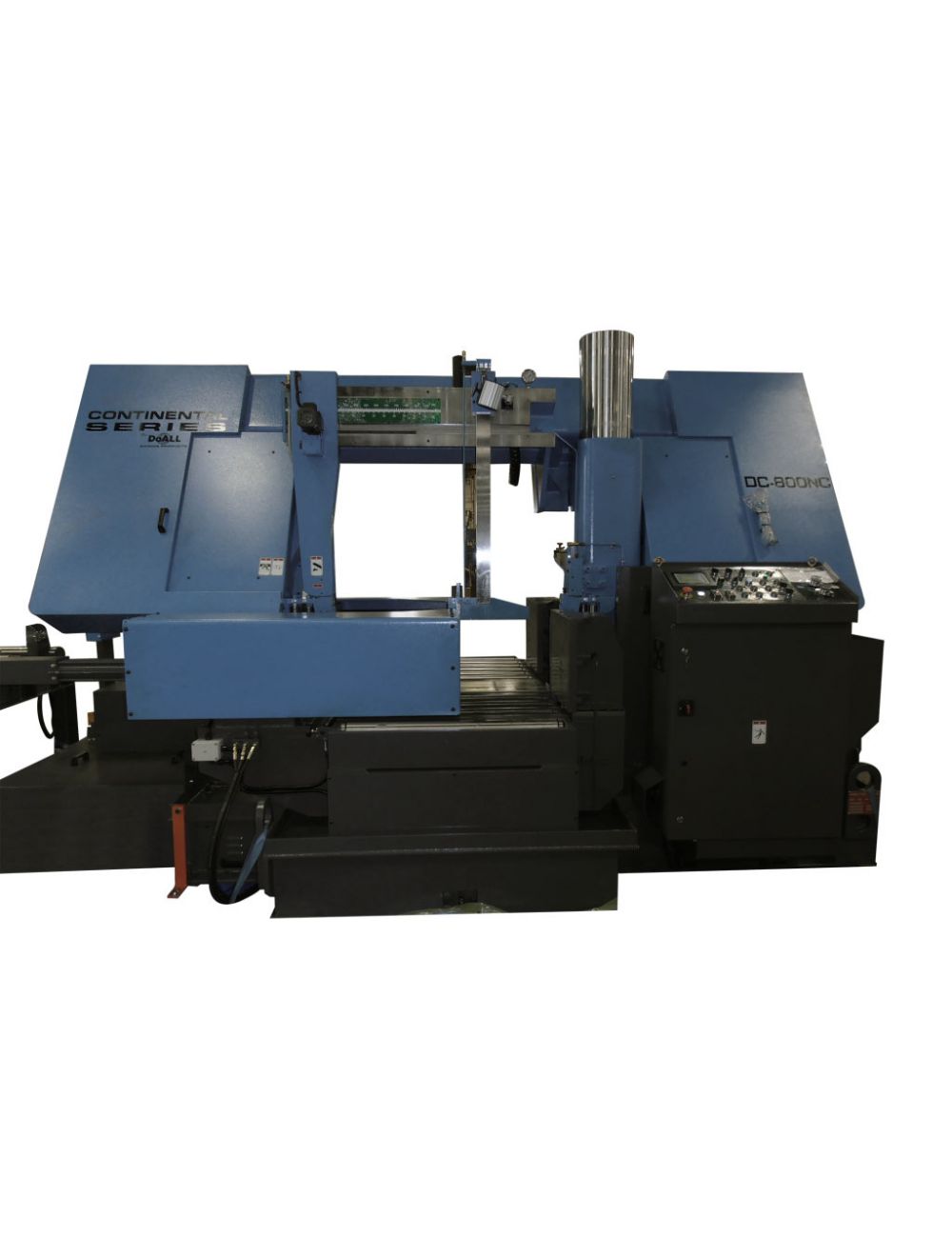

DoAll DC-800NC PRODUCTION BAND SAW
Machine Capacity: 39.3 x 31.4 (998x800mm)
Production Level: High
Free Installation and Setup from DoAll
THIS ITEM MAYBE OUT OF STOCK. Please email [email protected] for stock status.
The DC-800NC Continental Serieshigh production horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. The DC-800NC offers automatic operation, numerical control and features solid heavy-duty construction, which provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
Machine Capacity: 39.3 x 31.4 (998x800mm)
Production Level: High
The DC-800NC Continental Serieshigh production horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. The DC-800NC offers automatic operation, numerical control and features solid heavy-duty construction, which provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.
Product Specifications:
- Cutting Capacity Round: 31.5 (800mm)
- Cutting Capacity Rectangle: 31-1/2 x 39-1/2" (800x1000mm)
- Cutting Capacity Solid Round: 7.8" - 31.4" (200-800mm)
- Bundle Capacity Maximum: 25-5/8 x 14-5/8 (650x370mm)
- Bundle Capacity Minimum: 14-1/8 x 10-1/4 (360x260mm)
- Band Saw Blade: 2-5/8 x 0.063 x 347 (67x1.6x8800mm)
- Band Speed:52-275 fpm (16-85mpm)
- Band Drive Motor: 15 hp (11.1kW)
- Hydraulic Pump: 3 hp (2.23kW)
- Hydraulic Tank Capacity: 34 gal (130 lit)
- Coolant Pump: 1/4 hp (0.2kW)
- Coolant Tank Capacity: 63 gal (240 lit)
- Automatic Index Length Single: 15.75 (400mm)
- Automatic Index Length Multiple: 236.2 (6000mm)
- Material Pass Line Height: 36.2 (920mm)
- Machine Weight: 25,350 lbs. (11500kg)
- Floor Space Required: 172 x 94 x 108" (4350x2390x2750mm)
Standard Equipment:
- PLC control for all electric and hydraulic functions
- Infinitely variable speed controlled by VFD
- Hydraulic retractable shuttle vise material indexer
- Rapid and creep speed index vise control
- Multi-step full stroke vises with split front vise and variable vise pressure control
- Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
- Power driven, coolant flushed, blade cleaning wire brush
- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks
- Work light
- One 6 ft. (2M) conveyor
- Set up tools and tool box
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CDor USB data stick
