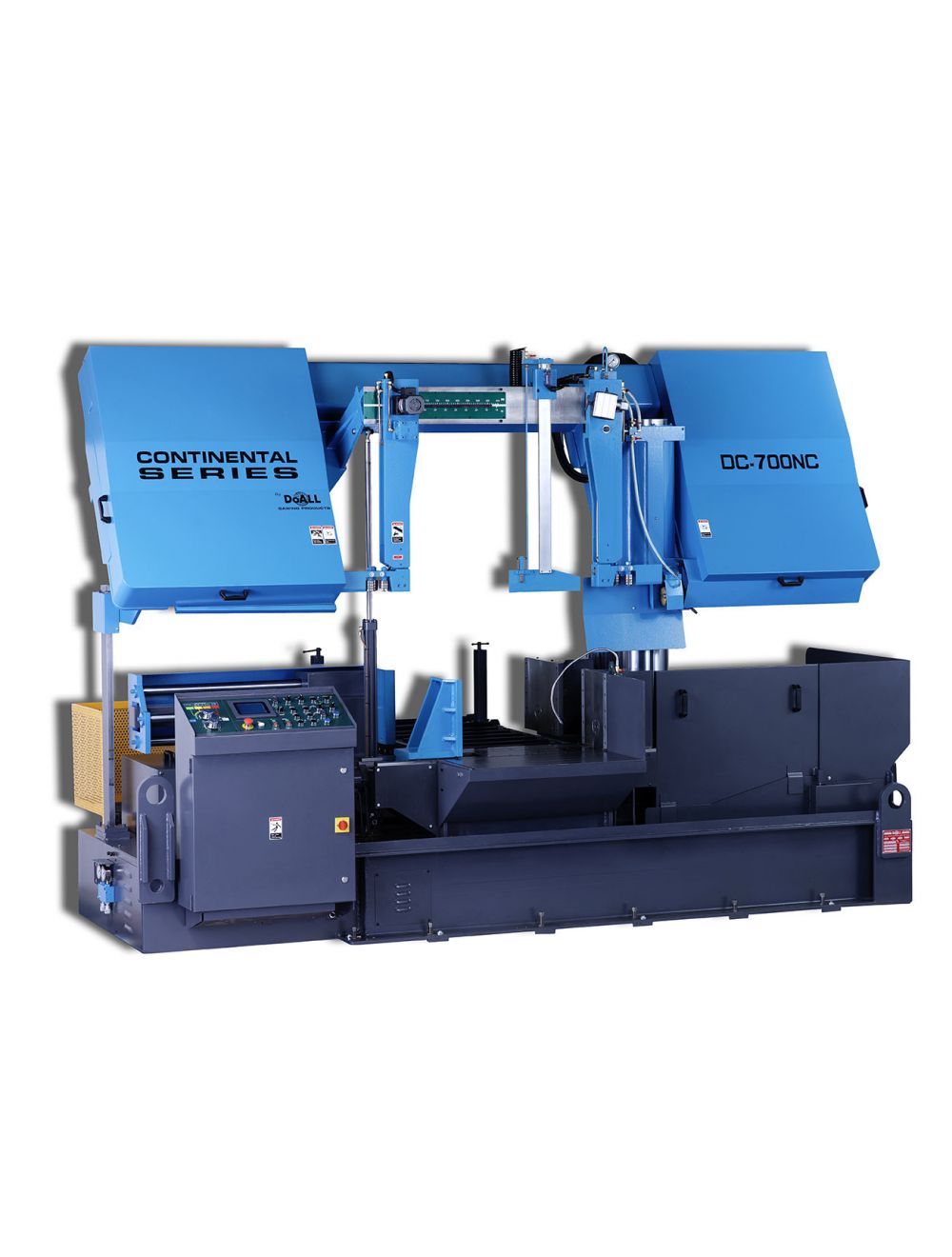

DoAll DC-700NC PRODUCTION BAND SAW

Machine Capacity: 27 x 31 (700x800mm) | Round: 27" (700mm)
Production Level: High

The DC-700NC Continental Serieshigh production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. The DC-700NC offers automatic operation, numerical control and feature solid heavy-duty construction. This provides more rigidity and reduces vibration for higher cutting rates, exceptional accuracy, superior surface finish and increased blade life.

Product Specifications:

• Cutting Capacity Round: 27 (700mm)
• Cutting Capacity Rectangle: 31 x 27 (800x700mm)
• Bundle Capacity Maximum: 25-5/8 x 13 (650x330mm)
• Bundle Capacity Minimum: 13-3/8 x 7-5/8 (340x195mm)
• Band Saw Blade (L x W x Gage): 325 x 2-5/8 x 0.063 (8250x63x1.6mm)
• Band Speed: 52-275 fpm (16-85mpm)
• Band Drive Motor: 15 hp (11.1kW)
• Hydraulic Pump: 3 hp (2kW)
• Hydraulic Tank Capacity: 34 gal (130 lit)
• Coolant Pump: 1/4 hp (0.2kW)
• Coolant Tank Capacity: 61 gal (230 lit)
• Automatic Index Length Single: 15.75 (400mm)
• Automatic Index Length Multiple: 141.73 (3600mm)
• Material Pass Line Height: 31-1/2 (800mm)
• Machine Weight: 15650 lbs. (7100kg)
• Floor Space Required: 154 x 89 x 90" (3910x2240x2300mm)

Standard Equipment:

• PLC control for all electric and hydraulic functions
• Infinitely variable speed controlled by VFD
• Hydraulic retractable shuttle vise material indexer
• Rapid and creep speed index vise control
• Multi-step full stroke vises with split front vise and variable vise pressure control
• Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
• Power driven, coolant flushed, blade cleaning wire brush
• Flushing hose and auxiliary coolant nozzles
• Hydraulic blade tension
• Automatic chip conveyor
• Blade breakage/stall motion detector shut off switch
• Band door interlocks
• Work light
• One 6.5 foot (2 meter) gravity conveyor
• Tool kit
• Complimentary DoALL Cutting Fluids package
• One DoALL bi-metal saw blade
• Instruction and parts manuals on CDor USB data stick
