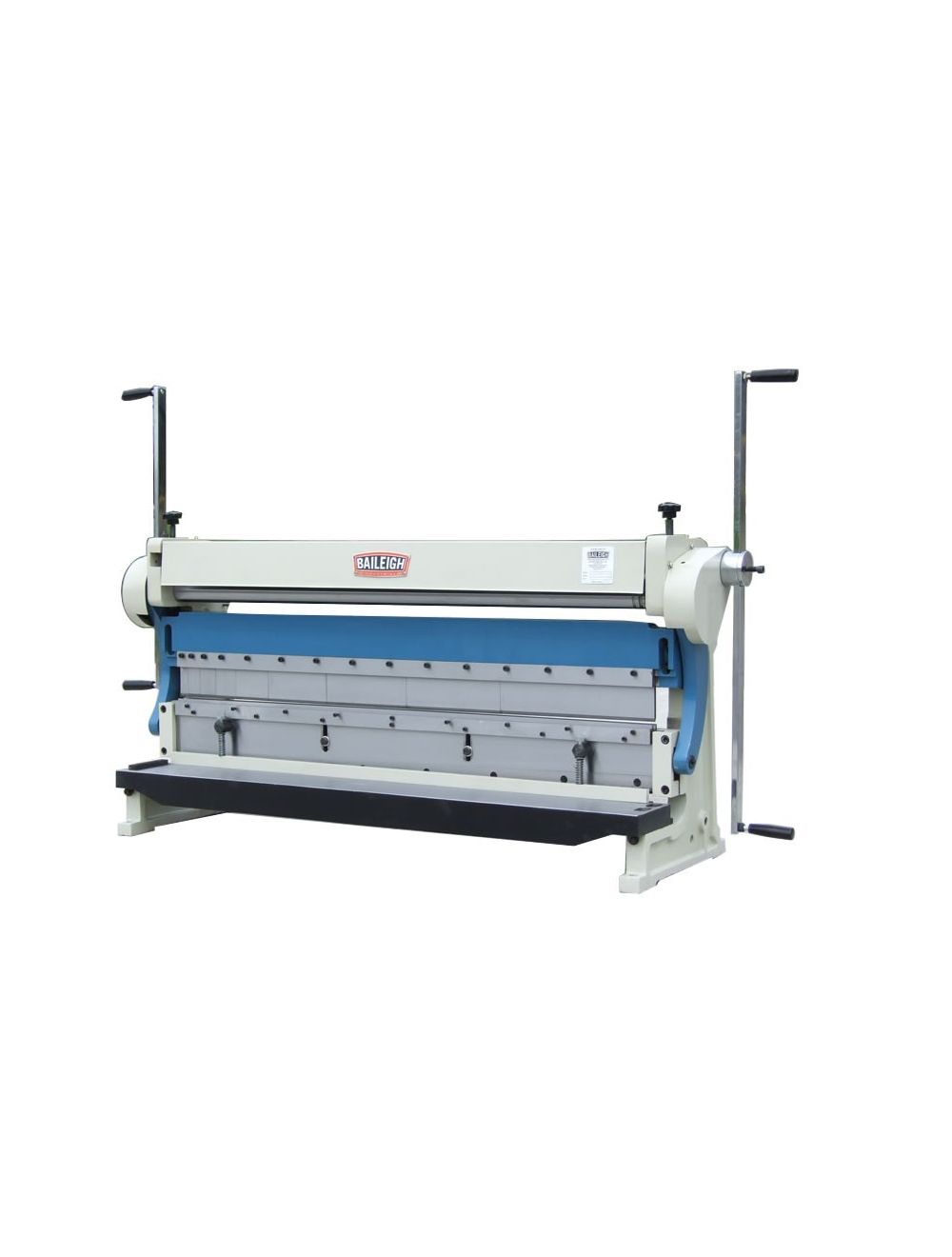

Baileigh SHEAR BRAKE ROLL SBR-5216

With a 16 gauge mild steel capacity for all functions, the SBR-5216 is the most powerful 3-in-1 combination machine on the market. This manual combination shear brake and roll saves space and money for small shops.

  • 52' width lets you roll, bend, and shear 4' x 8' sheets.
  • Slip roll portion is on top, press brake in the middle, and sheet metal shear on the bottom.
was $5,620.93 Special Price $4,629.00
SKU
1006972

DESCRIPTION

With a 16 gauge mild steel capacity for all functions, the SBR-5216 is the most powerful 3-in-1 combination machine on the market. This manual combination shear brake and roll saves space and money for small shops.

  • 52' width lets you roll, bend, and shear 4' x 8' sheets.
  • Slip roll portion is on top, press brake in the middle, and sheet metal shear on the bottom.
  • 1.70' minimum rolling diameter.
  • Hardened, adjustable back and top rolls can form different thicknesses.
  • Top roll can swing away from the machine for convenient material removal.
  • 3 grooves on the roll can form wire or round rod.
  • Manual press brake section comes with a fixed bottom V-block die.
  • The SBR-5216 combination shear brake roller bends up to 90, so you can make perfect corners.
  • 9 movable fingers on the top beam can make many sizes of boxes and pans.
  • Crowning feature adjusts the camber of press brake tooling to make consistent bends across your material.
  • Shear portion includes a spring-loaded clamp or hold-down to keep the material from lifting up, extend blade life, improve cut quality.
  • You can adjust the blade gap to fit different gauges of sheet metal.
  • Includes a material guide.
  • Hardened, reversible blades stay sharp.
  • Manual back gauge helps you easily produce repeatable parts.
  • Heavy steel construction, weighing 1,200 lbs., gives this combo machine the power to deliver accurate results for many years.
  • The SBR-5216 combination shear brake and roll is covered by a 1-year parts warranty.
  • Our team of knowledgeable reps is here to provide lifetime technical support by phone.

Recommended for: Home shops, industrial art shops, maintenance or R&D shops, and other facilities where small production runs don't justify dedicated machines for rolling, bending, and shearing.

SPECIFICATIONS

Item Number SBR-5216
Top Roll Dia. 2.38"
Max. Material Thickness (Stainless Steel) .039"
Rolling Capacity 16 ga. (.060' )
Shear Capacity 16 ga. (.060' )
Min. Rolling Dia. 3.57'
Bed Width 52"
Bending Capacity 16 ga. (.060' )
Max. Bend Angle 90 deg.
Power Manual
Shipping Weight 1200lbs
Shipping Dimensions (Inches) 71x24x37

* specifications subject to change without notice.
