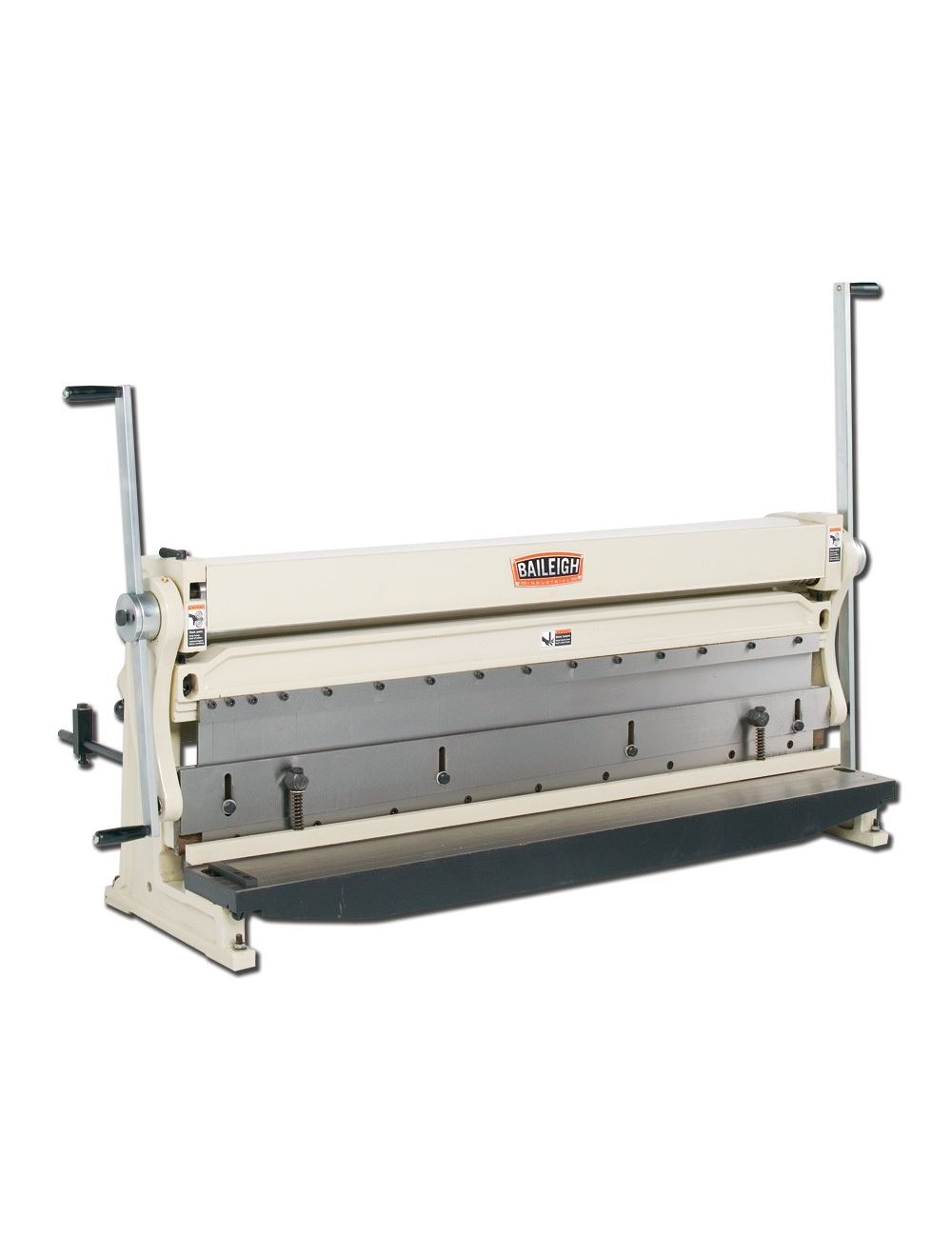

Baileigh SHEAR BRAKE AND ROLL SBR-5220

Want to roll, bend, and cut 4' x 8' sheets in a small shop This 3-in-1 machine saves space. The heavy steel frame will keep the SBR-5220 accurate at full capacity for many years.

  • 52' bed width lets you work with 4-foot metal sheets.
was $2,590.35 Special Price $2,467.00
SKU
1007002

DESCRIPTION

Want to roll, bend, and cut 4' x 8' sheets in a small shop This 3-in-1 machine saves space. The heavy steel frame will keep the SBR-5220 accurate at full capacity for many years.

  • 52' bed width lets you work with 4-foot metal sheets.
  • Maximum capacity of 20 gauge mild steel and 16 gauge aluminum across full working width for all functions.
  • Slip roll portion is on top, manual press brake in the middle, and shear on the bottom.
  • Manual slip roll has hardened bottom and top rolls.
  • 3 grooves can roll wire and round rod.
  • 2' minimum diameter for roll forming.
  • Manual press brake bends up to 90 and includes a hardened single-V bottom die.
  • You can rearrange the movable, hardened finger dies on the upper beam to make boxes and pans in varying sizes.
  • Crowning feature adjusts the camber of the tooling, so you can make a crisp bend in the middle of the machine, as well as the edges.
  • On the manual shear, spring-loaded hold-downs ensure a consistent cut across the entire width of the machine.
  • Hardened and reversible shear blades on bottom and top will remain sharp.
  • Back gauge helps you create repeatable parts.
  • Large handles turn 360 to put each machine through a full cycle.
  • Double-sided handles allow 2 people to apply force, reducing the strain of operation.
  • Weighs 830 lbs. with durable steel construction.
  • Covered by a 1-year parts warranty.
  • Our knowledgeable reps are here to provide lifetime technical support by phone.

Recommended for: Small shops, especially maintenance and R&D, that need to work with standard 4-foot sheets of metal.

Need a 52' shear brake roll with a larger capacity The SBR-5216 can handle 16 gauge mild steel.

SPECIFICATIONS

Item NumberSBR-5220
Max. Material Thickness (Stainless Steel).019"
Rolling Capacity20 ga. (.036' )
Shear Capacity20 ga. (.036' )
Min. Rolling Dia.2'
Bed Width52"
Bending Capacity20 ga. (.036' )
Max. Bend Angle90 deg.
PowerManual
Shipping Weight860lbs
Shipping Dimensions (Inches)66x22x30

* specifications subject to change without notice.
