Baileigh PLATE ROLL PR-403

Baileigh PLATE ROLL PR-403

Baileigh PLATE ROLL PR-503

Baileigh PLATE ROLL PR-503

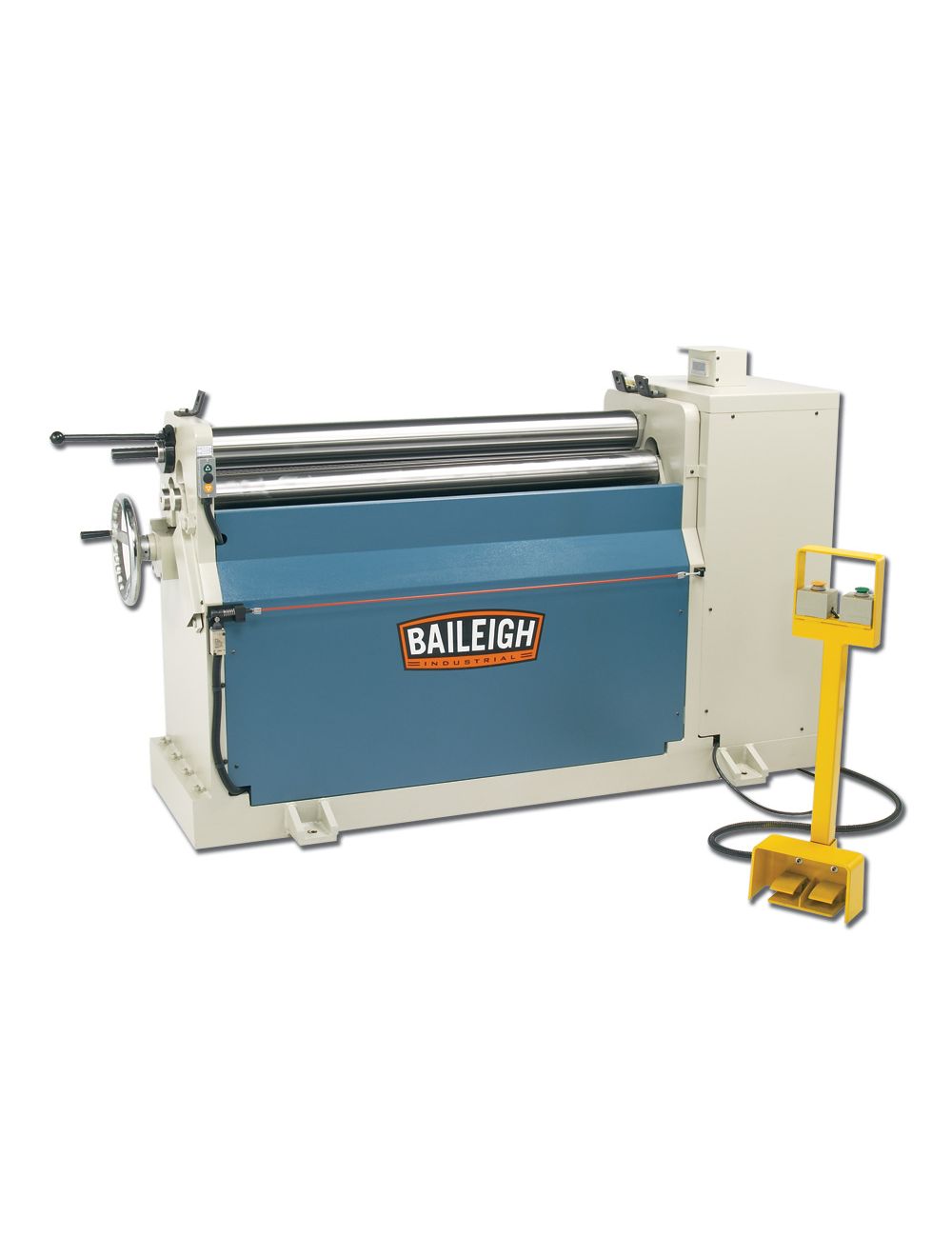

Baileigh PLATE ROLL PR-409

With 3 driven rolls, this single-pinch hydraulic plate roll cuts down on forming time so you can get jobs done faster.

  • 4' forming width.
was $16,727.55 Special Price $15,931.00
SKU
1006517

DESCRIPTION

With 3 driven rolls, this single-pinch hydraulic plate roll cuts down on forming time so you can get jobs done faster.

  • 4' forming width.
  • Can bend 9 gauge mild steel into a 7' ring on its full length.
  • Operated entirely by an industrial-grade hydraulic system.
  • 2 hp 220-volt 3-phase motor controls movement of the back roll and the rolling of all 3 forming rolls.
  • Convenient control pedestal includes forward and reverse foot pedal and buttons to control the up and down movement of the back roll.
  • Digital readout shows the position of the back roll for easy repeatability.
  • Full steel frame, machined to exacting tolerances, maintains accuracy and prevents deflection.
  • Emergency stop cable on the front and back of the machine help to keep your shop safe.
  • Covered by a 1-year parts warranty.
  • Comes with lifetime technical support by phone. Call us and talk to a Baileigh rep with hands-on metalworking experience.

SPECIFICATIONS

Item NumberPR-409
Country of ManufactureTaiwan
Forming Width48"
Roll Speed5.85 rpm.
Upper Roll Dia.4.75"
Roll Adjustment BackHydraulic
Minimum Forming Dia7.125"
Motor2 hp
Capacity (Mild Steel)9 ga. (.150")
Power220V / 3-phase
Shipping Weight3590lbs
Shipping Dimensions (Inches)98x39x60

* specifications subject to change without notice.
