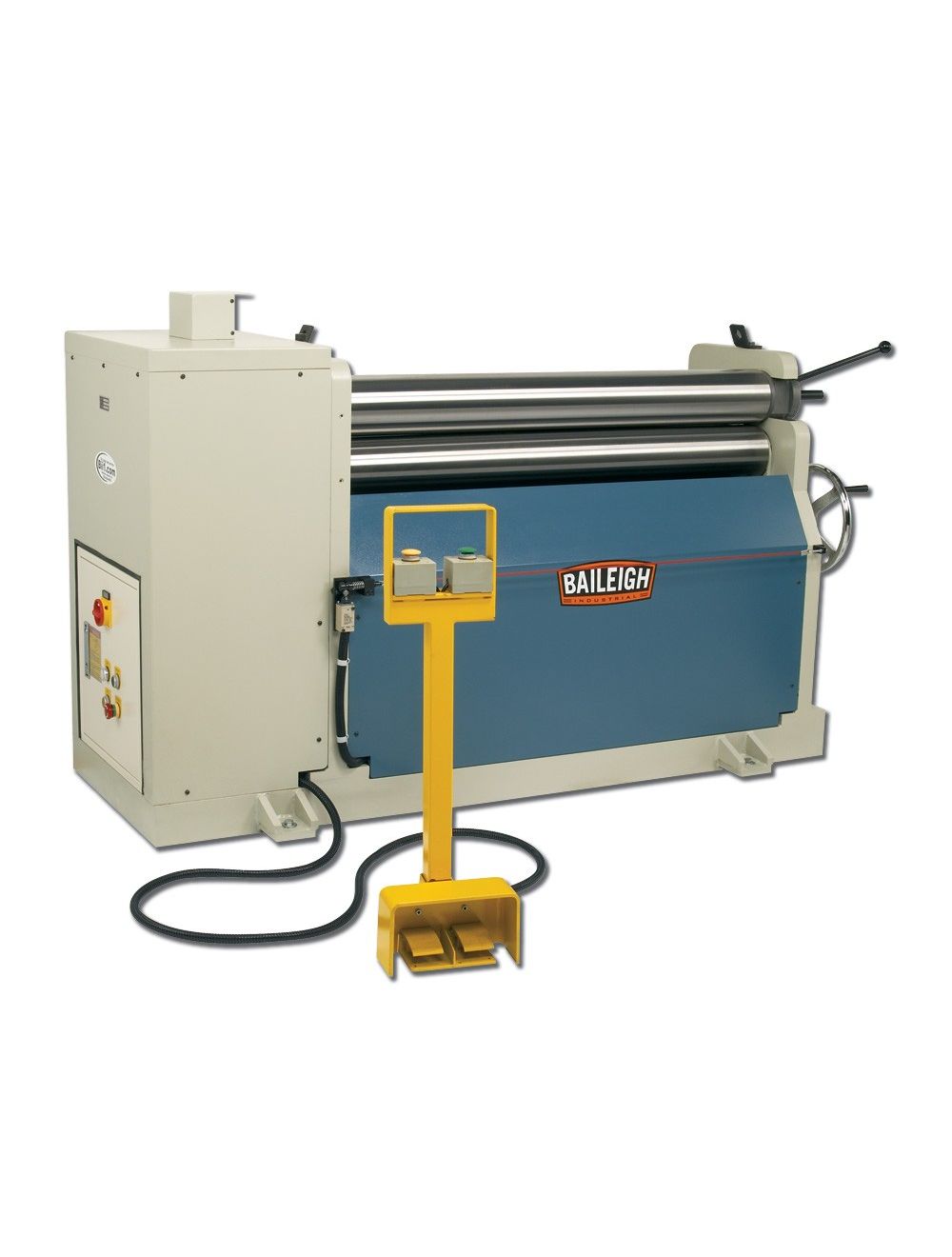

Baileigh PLATE ROLL PR-403

This durable, easy-to-use plate roll will last for many years in small to medium shops. Its 3 hydraulically driven rolls can handle maximum capacity with ease and finish jobs faster.

  • 4' forming width.
was $20,351.10 Special Price $19,382.00
SKU
1006481

DESCRIPTION

This durable, easy-to-use plate roll will last for many years in small to medium shops. Its 3 hydraulically driven rolls can handle maximum capacity with ease and finish jobs faster.

  • 4' forming width.
  • 3 gauge ( ' ) mild sheet steel capacity.
  • 3 hp motor runs on 220-volt 3-phase power.
  • Large planetary gearbox, connected to main motor, drives the top and bottom rolls.
  • Industrial-grade hydraulic system drives all 3 rolls.
  • Movable control pedestal includes foot pedals to run the rolling and buttons to move the forming roll up and down.
  • Easy to operate: insert material, turn the handwheel to bring up the pinch roll, then use the foot pedals to start rolling.
  • Just flip a switch to bring the back roll up at an angle for coning.
  • Quick-release mechanism on the top roll makes it easy to slide off the finished work.
  • Digital readout tracks the position of the back roll so you can make repeatable bends.
  • Robust welded steel frame maintains accuracy and rigidity by keeping the rolls in alignment.
  • Dual emergency stop cables are located on the front and back of the machine for your safety.
  • Covered by a 1-year parts warranty.
  • Includes lifetime technical support by phone from a team with hands-on machine experience.

SPECIFICATIONS

Item NumberPR-403
Country of ManufactureTaiwan
Forming Width48"
Roll Speed4.67 rpm.
Upper Roll Dia.5.91"
Roll Adjustment BackHydraulic
Minimum Forming Dia8.86"
Motor3 hp
Power220V / 3-phase
Shipping Weight4200lbs
Shipping Dimensions (Inches)98x43x58

* specifications subject to change without notice.
