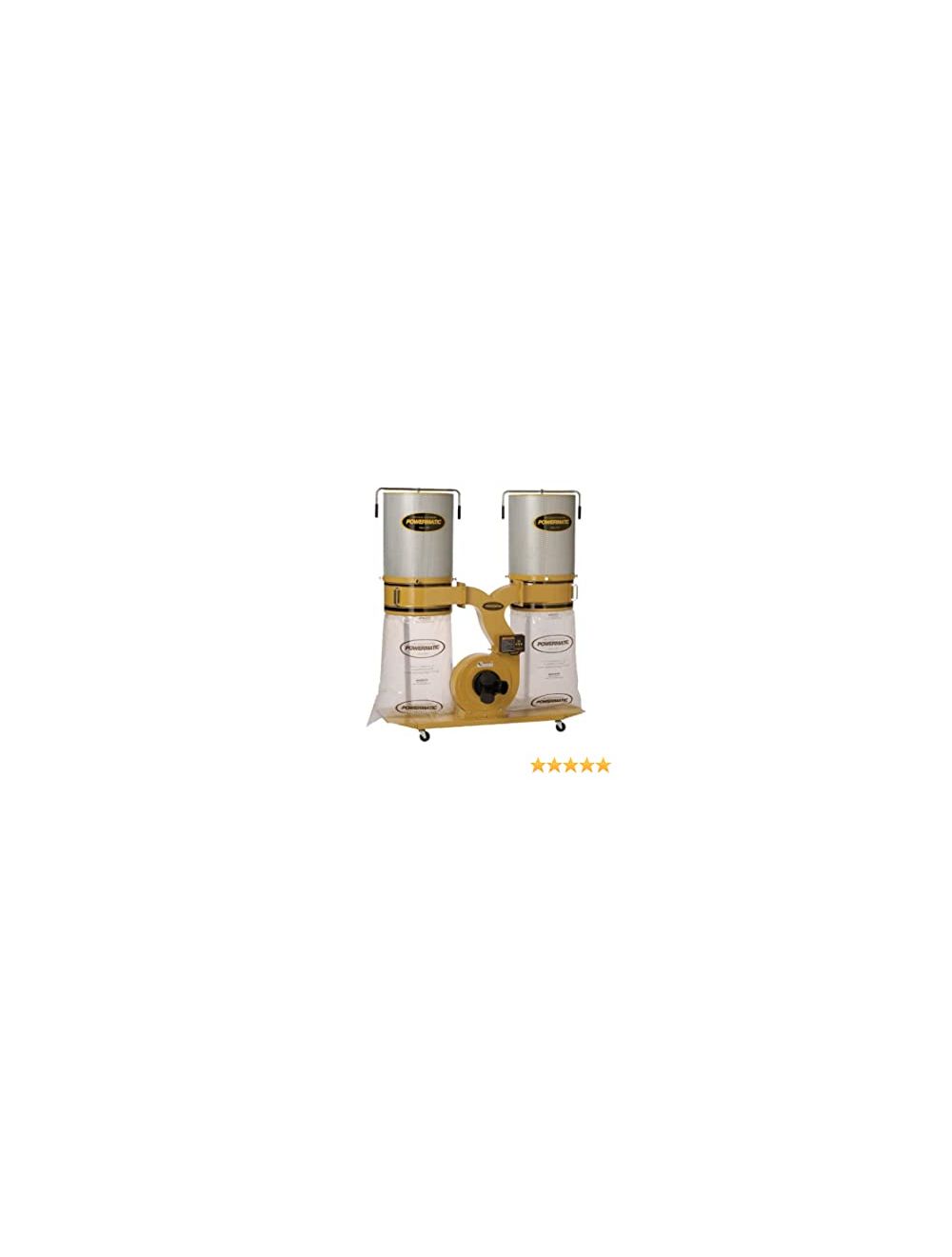

POWERMATIC PM1900TX-CK3 DUST COLLECTOR, 3HP 3PH 230/460V, 2-MICRON CANISTER KIT
The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.
was
$2,272.84
Special Price
$1,849.99
SKU
1792074K
FEATURES
- TurboCone improves chip separation and collector bag packing efficiency
- The steel impeller is powered by a 3HP motor for peak performance
- The cone eliminates premature filter clogging for sustained performance
- All-metal duct construction for rigidity and improved air flow
- Triple 4?’???????????’??????????ƒ???????????????????????? dust ports allow for several hoses to be attached at the same time
- 30-micron filter bags for improved capture of fine dust particles
- Cloth collection bags with view window use a snap ring for rapid installation/removal
- 10 cubic feet collection bag capacity reduces number of bag changes.
????
SPECIFICATIONS
| Style (Type) | TurboCone |
| Air Flow @ 4" (CFM) | 236 |
| Air Flow @ 8" (CFM) | 1782 |
| Number of Air Inlets | 1(8") or 3(4") |
| Efficiency (Micron) | 1 |
| Static Pressure (WC) | 12.15 |
| Sound Rating (DB) | 86 - 92 |
| Bag Diameter (In.) | 20 |
| Collection Bag Capacity (Cu. Ft.) | 10 |
| Collection Bag Length (In.) | 30 |
| Filter Bag/Canister Length (In.) | 26 |
| Impeller Diameter (In.) | 14 |
| Impeller Fins | 7 |
| Impeller Material | Steel |
| Velocity @ 4" (CFM) | 5200 |
| Velocity @ 8" (CFM) | 5393.7 |
| 1-Hose Connection Diameter (In.) | 8 |
| 3-Hoses Connection Diameter (In.) | 4 |
| Motor Power (HP) | 3 |
| Motor Phase | 3 |
| Motor Voltage (V.) | 230/460 |
| Prewired Voltage (V.) | 230 |
| Motor Current (Amps) | 8.2/4.1 |
| Recommended Circuit Size (Amps.) | 15/10 |
| Shipping Calculation: | All Shipping Costs are calculated after order is placed |
|---|
