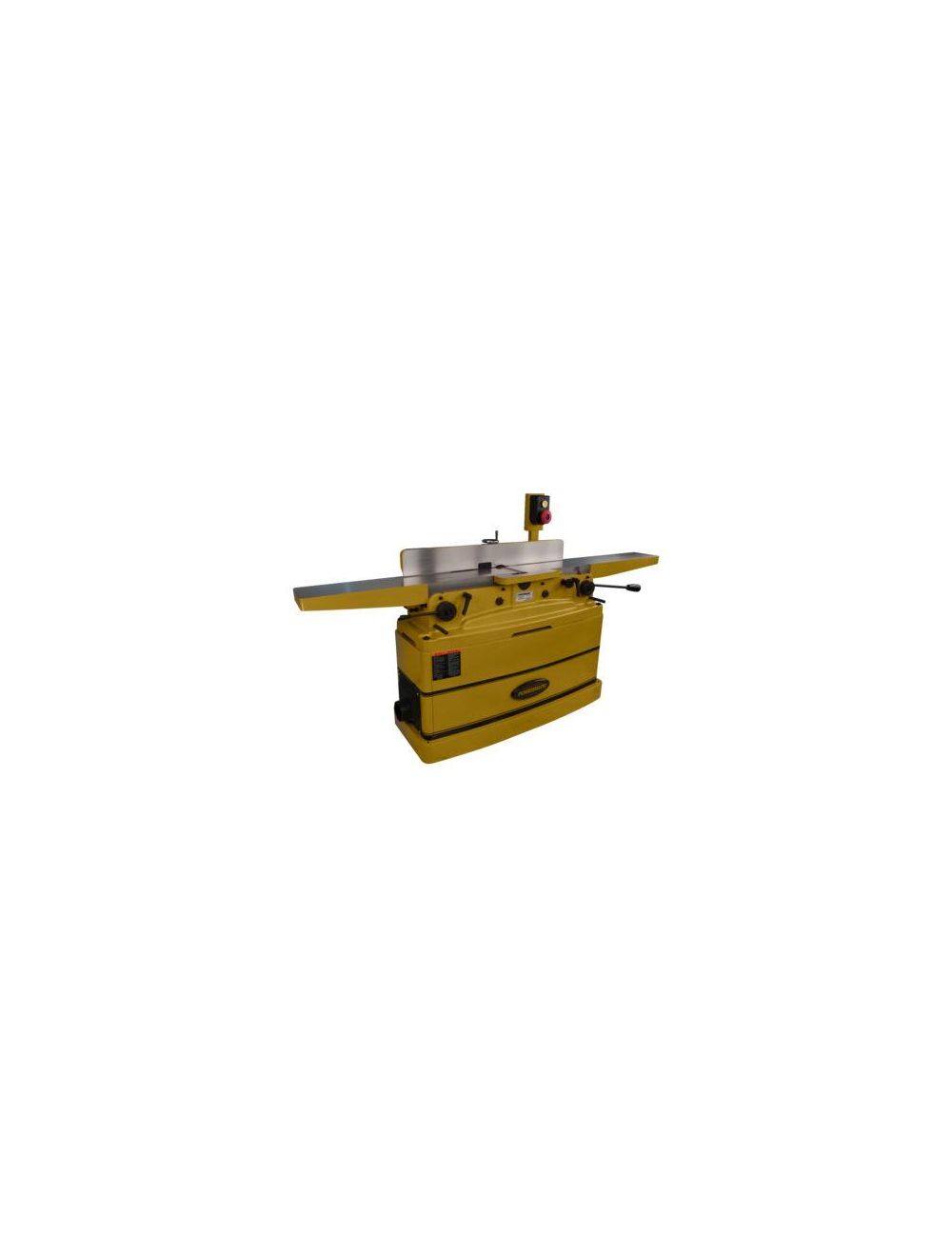

POWERMATIC 54A JOINTER, 1HP 1PH 115/230V
The 6" Jointer features three auto-set knives that align themselves in the cutterhead for rapid knife changes. Oversized infeed/outfeed tables are mounted on dovetailed ways and have a built-in rabbeting ledge. The fence is 38" in length, with positive stops at 90’???????????’??????????ƒ???????????????????????? and 45’???????????’??????????ƒ???????????????????????? right and left. The fine/quick adjustment lever on the infeed table offers quick set-ups with precision controlled depth of cut. The heavy steel stand features a powerful motor with a non-slip v-belt drive for maximum performance. The 4" dust port offers easy connection to any dust collection system.
FEATURES
- The cutterhead features three high speed steel auto-set knives that automatically align themselves in the cutterhead
- 66" long adjustable infeed and outfeed tables provide more working surface
- Fine/quick adjustment lever on infeed table for precision cuts
- Extra-long 38" two-way tilting fence with positive stops provides quick positioning for 90’???????????’??????????ƒ???????????????????????? or bevel cuts
- Enlarged sheet metal stand provides a sturdy base
- Built-in ledge for 1/2" rabbeting capacity
- Fence controls are center-mounted for convenience
- Push button switch is lockable to prevent accidental starting
’???????????’??????????ƒ?????????????????????????
SPECIFICATIONS
| Type of Cutterhead |
Straight w/ Quick Set Knives
|
| Number of Knives |
3 Straight High Speed Steel Knives
|
| Cuts Per Minute | 18,000 |
| Cutterhead Diameter (In.) | 2-1/2 |
| Cutterhead Speed (RPM) | 6,000 |
| Cutting Capacity (W x D) (In.) | 6 x 1/2 |
| Table Size (L x W) (In.) | 66 x 7-1/4 |
| Table Height from Floor (In.) | 31-1/2 |
| Infeed Table Length (In.) | 32-1/2 |
| Outfeed Table Length (In.) | 32-1/2 |
| Rabbeting Capacity (In.) | 1/2 |
| Rabbeting Ledge (In.) | 9 x 2-1/2 |
| Fence Size (L x H) (In.) | 38 x 4-3/4 |
| Fence Tilt (Deg.) |
45 Forward, 45 Backward
|
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 1 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 115/230 |
| Prewired Voltage (V.) | 115 |
| Motor Current (Amps) | 13/6.5 |
| Recommended Circuit Size (Amps.) | 20/10 |
| Shipping Cost | 275 |
|---|---|
| Shipping Calculation: | Shipping Costs are additional and will be calculated after inventory is confirmed with the mfg. |
