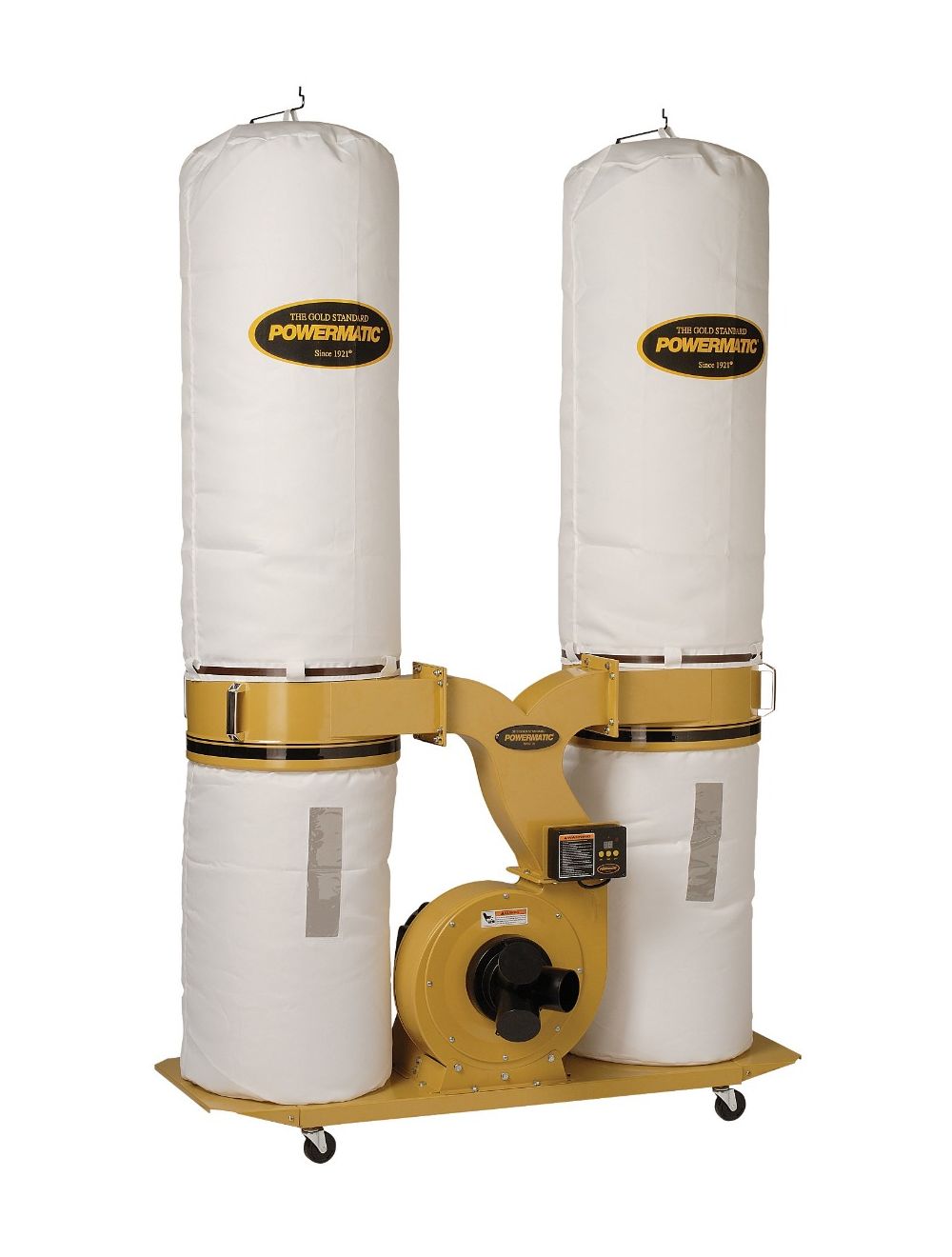

POWERMATIC PM1900TX-BK1 DUST COLLECTOR, 3HP 1PH 230V, 30-MICRON BAG FILTER KIT
The PM1900 Dust Collector is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machines. The exclusive TurboCone improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bags. The canister filter offers over six times the filtering area of standard filter bags, collects 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. Multiple connection port capability makes this machine a central dust collection system for the entire woodworking shop. Four swivel casters and conveniently located handles allow for easy mobility.
was
$1,941.13
Special Price
$1,579.99
SKU
1792071K
????
FEATURES
- TurboCone improves chip separation and collector bag packing efficiency
- The steel impeller is powered by a 3HP motor for peak performance
- Remote-controlled digital timer can be programmed for up to 99 minutes
- The cone eliminates premature filter clogging for sustained performance
- All-metal duct construction for rigidity and improved air flow
- Triple 4?’???????????’??????????ƒ???????????????????????? dust ports allow for several hoses to be attached at the same time
- 30-micron filter bags for improved capture of fine dust particles
- Cloth collection bags with view window use a snap ring for rapid installation/removal
- 10 cubic feet collection bag capacity reduces number of bag changes.
SPECIFICATIONS
| Style (Type) | TurboCone |
| Air Flow @ 4" (CFM) | 234 |
| Air Flow @ 8" (CFM) | 1754 |
| Number of Air Inlets | 1(8") or 3(4") |
| Efficiency (Micron) | 30 |
| Static Pressure (WC) | 12.15 |
| Sound Rating (DB) | 86 - 92 |
| Bag Diameter (In.) | 20 |
| Collection Bag Capacity (Cu. Ft.) | 10 |
| Collection Bag Length (In.) | 30 |
| Filter Bag/Canister Length (In.) | 48 |
| Impeller Diameter (In.) | 14 |
| Impeller Fins | 7 |
| Impeller Material | Steel |
| Velocity @ 4" (CFM) | 5200 |
| Velocity @ 8" (CFM) | 5393.7 |
| 1-Hose Connection Diameter (In.) | 8 |
| 3-Hoses Connection Diameter (In.) | 4 |
| Motor Power (HP) | 3 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 230 only |
| Prewired Voltage (V.) | 230 |
| Motor Current (Amps) | 15 |
| Recommended Circuit Size (Amps.) | 30 |
| Shipping Calculation: | All Shipping Costs are calculated after order is placed |
|---|
