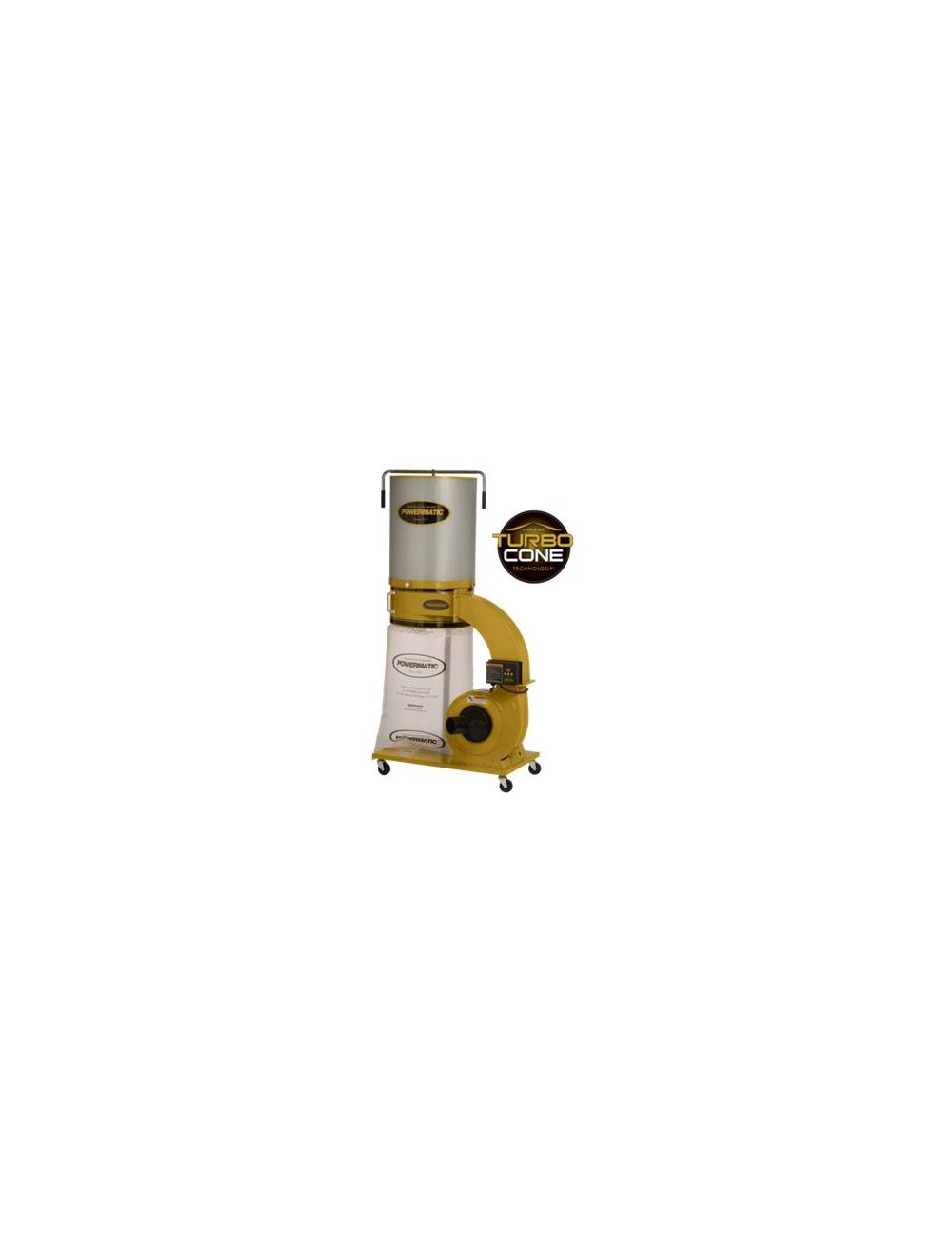

POWERMATIC PM1300TX-CK DUST COLLECTOR, 1.75HP 1PH 115/230V, 2-MICRON CANISTER KIT
The PM1300TX Dust Collector features the exclusive TurboCone which improves chip separation to prevent clogging of the filter, and increases packing efficiency of the collector bag. The canister filter offers superior filtering surface area over standard bags, and captures 98% of 2-micron particles. A digital timer can be set for up to 99 minutes, and an infrared sensor allows remote control operation. The all-metal duct improves rigidity and air flow. The clear collector bags are large capacity, which means less down-time changing them. Four swivel casters and conveniently located handles allow for easy mobility.
was
$1,474.27
Special Price
$1,199.99
SKU
1791079K
FEATURES
- TurboCone improves chip separation and collector bag packing efficiency
- The large steel impeller is powered by a 1-3/4HP motor for peak performance.
- Remote-controlled digital timer can be programmed for up to 99 minutes
- The cone eliminates premature filter clogging for sustained performance
- All-metal duct construction for rigidity and improved air flow
- Dual 4" dust ports for simultaneous collection from two machines
- Cloth collection bag with view window uses snap ring for rapid installation/removal
- 10 cubic feet capacity collection bag reduces number of bag changes.
- Four swivel casters for easy maneuverability
????
SPECIFICATIONS
| Style (Type) | TurboCone |
| Air Flow @ 6" (CFM) | 1300 |
| Number of Air Inlets | 1(6") or 2(4") |
| Efficiency (Micron) | 2 |
| Static Pressure (WC) | 11.31 |
| Sound Rating (DB) | 75 - 90 |
| Bag Diameter (In.) | 20 |
| Collection Bag Capacity (Cu. Ft.) | 10 |
| Collection Bag Length (In.) | 30 |
| Filter Bag/Canister Length (In.) | 26 |
| Impeller Diameter (In.) | 12 |
| Impeller Fins | 6 |
| Impeller Material | Steel |
| Velocity @ 6" (CFM) | 5374 |
| 1-Hose Connection Diameter (In.) | 6 |
| 2-Hoses Connection Diameter (In.) | 4 |
| Motor Power (HP) | 1-3/4 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 115/230 |
| Prewired Voltage (V.) | 115 |
| Motor Current (Amps) | 15/7.5 |
| Recommended Circuit Size (Amps.) | 20/15 |
| Shipping Calculation: | All Shipping Costs are calculated after order is placed |
|---|
