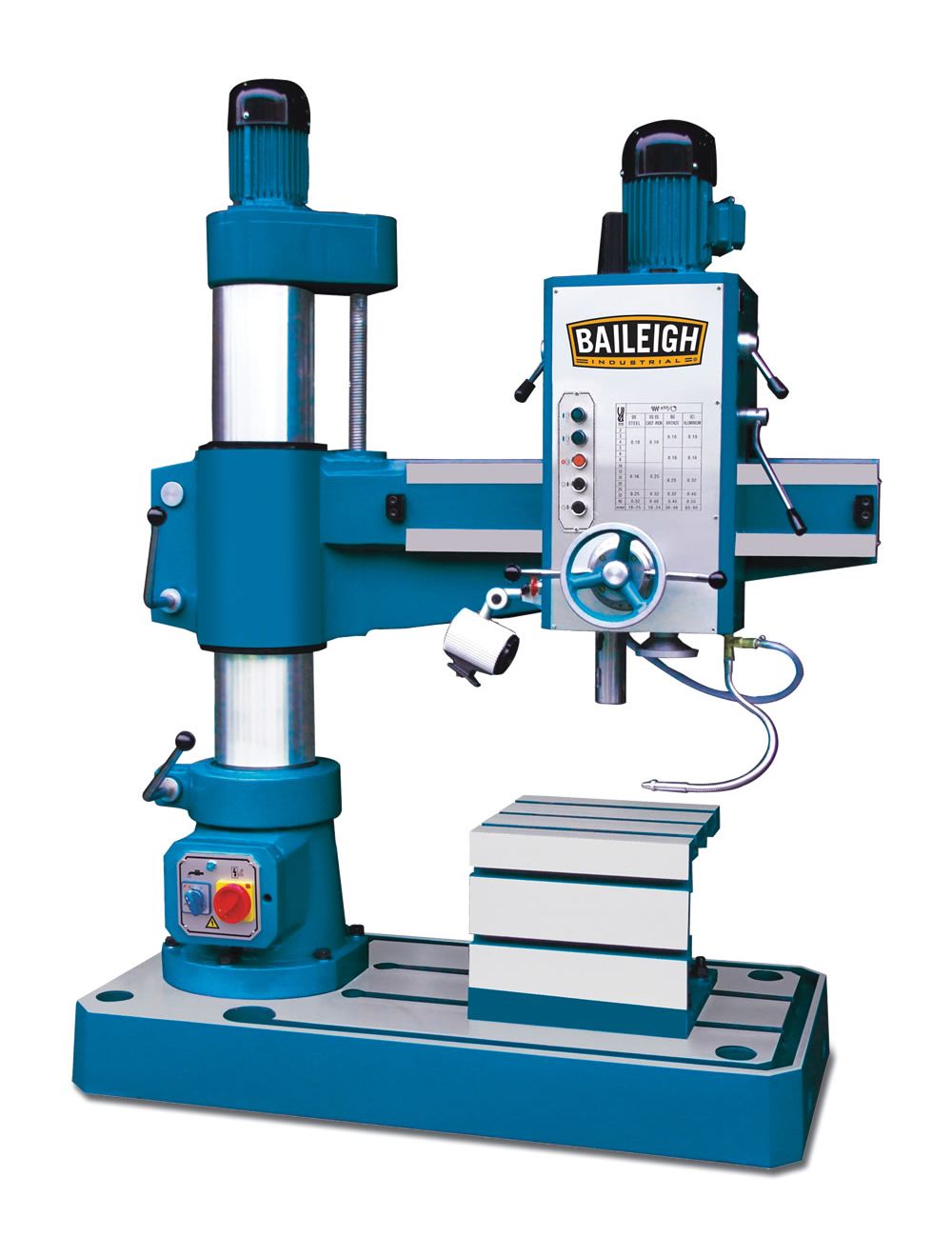

Baileigh RADIAL DRILL - RD-1000M
- 1.57" maximum drilling capacity
- Heavy duty construction
- Power down feed
- MT4 spindle
- 39.3" Reach
- 9.4" Column
- Box Shape Worktable
$10,995.00
Availability:
In stock
SKU
1008487
DESCRIPTION
- 1.57" maximum drilling capacity
- Heavy duty construction
- Power down feed
- MT4 spindle
- 39.3" Reach
- 9.4" Column
- Box Shape Worktable
SPECIFICATIONS
| Item Number | RD-1000M |
|---|---|
| Max. Drill Capacity | 1.57" |
| Distance from Spindle to Column Center | 7.8" to 39.3" |
| Diameter of Column | 9.4" |
| Spindle Taper | MT4 |
| Spindle Travel | 9.8" |
| Spindle Speed Range | 71 to 1800 rpm |
| Range of Spindle Feeds | .005" to .02" |
| Spindle Feeds | 4 |
| Distance Between Spindle Nose and Base | 10.3" to 41.8" |
| Table Size | 15.7" x 17.7" x 15.7" |
| Base Size | 29" x 20" |
| Overall Size | 68" x 29.5" x 93" |
| Motor | 2 hp (Spindle) 3/4 hp (Lifting) |
| Coolant Pump | 1/8 hp |
| Power | 220V 3-phase |
| Shipping Weight | 9460lbs |
| Shipping Dimensions (Inches) | 74" x 39" x 87" |
* specifications subject to change without notice.
| Shipping Cost | 0.00 |
|---|---|
| Shipping Calculation: | All Shipping Costs are calculated after order is placed and inventory is confirmed |
