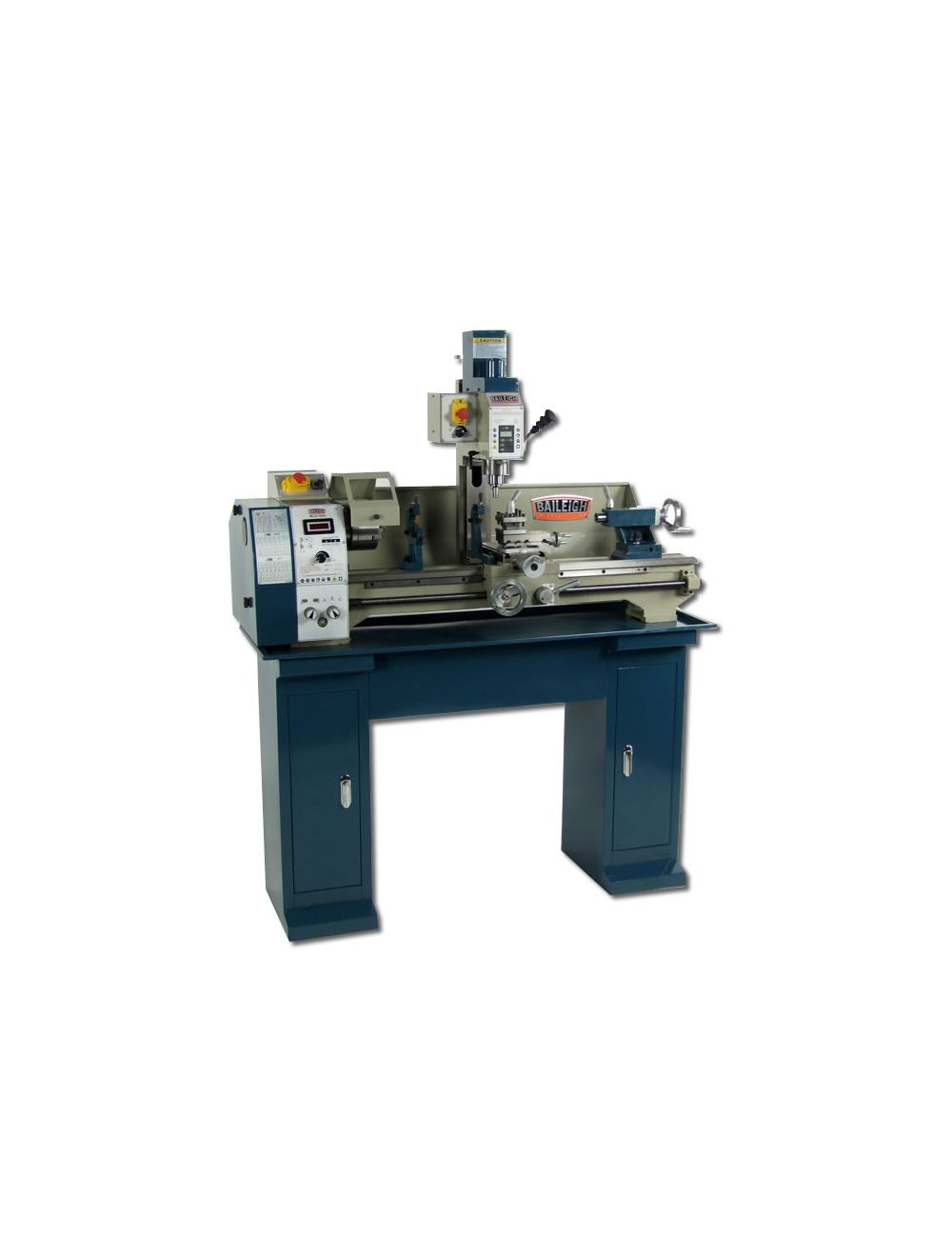

This combo mill drill lathe is ideal for small shops. Sturdily built with an MT-2 taper, the MLD-1030 offers all the features you' d want, including 2 DROs and independent motors.
This combo mill drill lathe is ideal for small shops. Sturdily built with an MT-2 taper, the MLD-1030 offers all the features you' d want, including 2 DROs and independent motors.
| Item Number | MLD-1030 |
|---|---|
| Range Of Longitudinal Feed Per Rev | .003 ' .008" |
| Range Of Metric Threads | .4 ' 3.5 mm |
| Spindle Bore | 1.1" |
| Range Of Inch Threads | 8 ' 56 T.P.I |
| Motor | 1 hp |
| Speeds | 50-2500 rpm (variable) |
| Top Slide Travel | 2" |
| Width Of Bed | 5.3" |
| Spindle Stroke | 2" |
| Spindle Taper | R8 |
| Tailstock Quill Travel | 2" |
| Taper Of Spindle Bore | MT 2 |
| Taper Of Tailstock Quill | MT 2 |
| Swing Over Bed | 9.75" |
| Swing Over Cross Slide | 5.7" |
| Max. Distance Spindle To Column | 6.5" |
| Max. Distance Spindle To Table | 8.375" |
| Cross Slide Travel | 4.5" |
| Distance Between Centers | 28.5" |
| Power | 120V |
| Shipping Weight | 690lbs |
| Shipping Dimensions (Inches) | 69x44x55 |
* specifications subject to change without notice.
