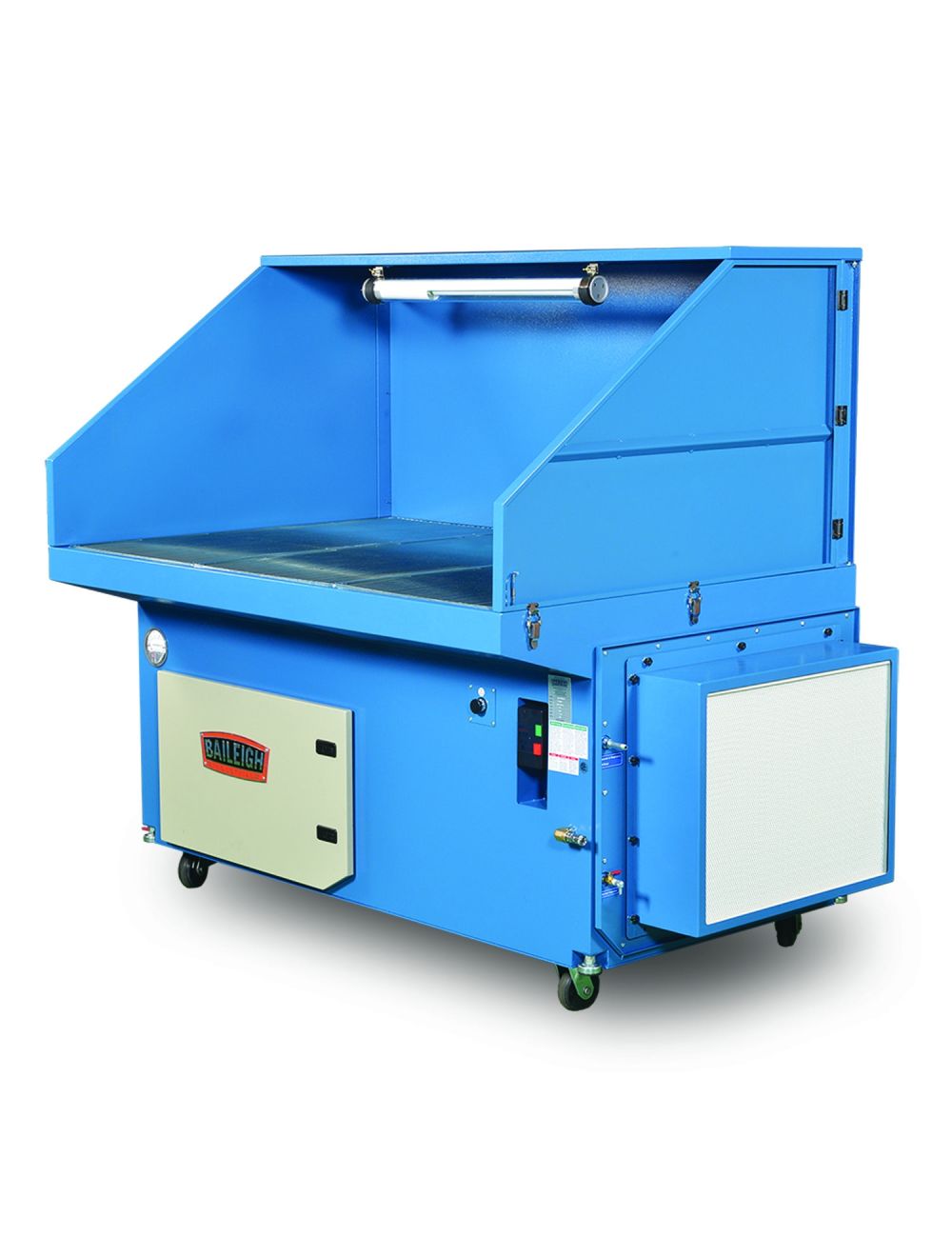

Baileigh HEAVY DUTY DOWNDRAFT TABLE DDTM-8052-HD

Downdraft tables are becoming more popular with all of the air quality regulations that are now in place. The Heavy Duty Downdraft Table DDTM-8052-HD is the perfect table for large manufactureing facility has a need for a clean production. This easy to use down draft table takes all the little partials that float around the shop and pull them straight down into a contained unit and also help to clean the air. The DDTM-8052-HD has a list of features that make it one of the best tables on the market.

  • 78" x 52" Working area
$19,638.17
SKU
1017590

DESCRIPTION

Downdraft tables are becoming more popular with all of the air quality regulations that are now in place. The Heavy Duty Downdraft Table DDTM-8052-HD is the perfect table for large manufactureing facility has a need for a clean production. This easy to use down draft table takes all the little partials that float around the shop and pull them straight down into a contained unit and also help to clean the air. The DDTM-8052-HD has a list of features that make it one of the best tables on the market.

  • 78" x 52" Working area
  • Standard equipment included: HEPA filter, fire resistant cartridge filter, spark arresting metallic pre-filter, magnehelic gauge, hinged side walls w/ back wall, work light, auxiliary 110V and air tool outlets, 12' overhang, casters and leveling feet. These are all options other companies charge for, but come standard with Baileig
  • CSAus listed
  • 100% Tool free cleaning and filter maintenance/changes
  • Air pulse cleaning ' When flow is restricted, simply shut the machine off, and press the air pulse button (requires 60-90psi air connection). An internal air tank automatically backflushes the cartridge filter, knocking off accumulated dust and debris (he debris falls into a removable pan for easy cleanout). The table can now be turned on and work resumed
  • Safety ' Under OSHA decibel limit (hearing protection not required). HEPA filter is now required by OSHA for equipment that vents back into occupied space (HEPA is standard on these models)
  • Fully Assembled ' Simply uncrate, wire, and begin use

-TABLE LOAD CAPACITY '

Maximum 1764lbs (800kgs) Evenly distributed over 80% - 100% of table surface.

Concentrated Contact Surface Contact Weight

10% 221lbs (100gs)

20% 441lbs (200kgs)

30% 661lbs (300kgs)

40% 882lbs (400kgs)

50% 1102lbs (500kgs)

60% 1323lbs (600kgs)

70% 1543lbs (700kgs)

80% 1764lbs (800kgs)

SPECIFICATIONS

Item Number DDTM-8052-HD
Country of Manufacture Taiwan
Working Table Size 78" x 52"
CFM 2340 at base
Motor Hp 5 HP
Filter Type Three Stage (Aluminum x 2, Teflon Cartridge x 6, HEPA)
Number of Filters 9
Filter Size Aluminum x 2 - 11.3" x 23.8" x 0.86", Cartridge x 6 - 11.25" x 13"L, HEPA - 18" x 20" x 5.9"
Table Load Capacity Maximum 1764lbs (800kgs) Evenly distributed over 80% - 100% of table surface. For concentrated weight spec, see chart in description.
Power 230V 3ph
Shipping Weight 1650lbs
Shipping Dimensions (Inches) 92x58x80

* specifications subject to change without notice.
