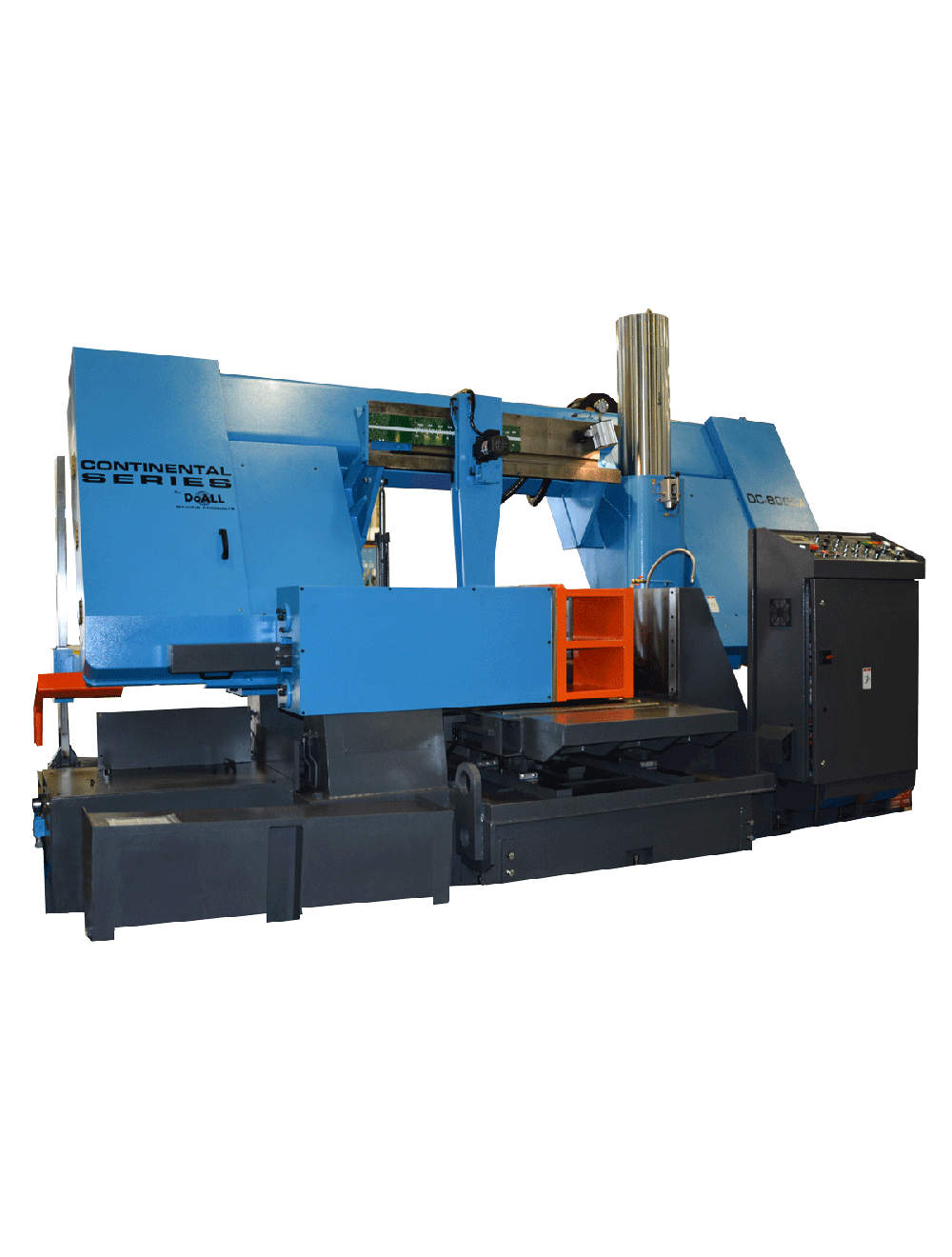

DoAll DC-800SA SEMI-AUTOMATIC BAND SAW
Machine Capacity: 31-1/2 x 39-1/2 (1000x800mm) | Round: 31-1/2" (800mm)
Production Level: High
*FREE INSTALLATION AND SETUP FROM DOALL *
THIS ITEM MAYBE OUT OF STOCK. Please email [email protected] for stock status.
The DC-800SA Semi-Automatic Continental Serieshigh production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut.
Machine Capacity: 31-1/2 x 39-1/2 (1000x800mm) | Round: 31-1/2" (800mm)
Production Level: High
The DC-800SA Semi-Automatic Continental Serieshigh production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut.
SPECIFICATIONS:
- Cutting Capacity Round: 31.5 (800mm)
- Cutting Capacity Rectangle: 39.3 x 31.5 (1000x800mm)
- Band Saw Blade (L x W x Gage): 344 x 2-5/8 x 0.063" (8800x67x1.6 mm)
- Band Speed: 52-275 fpm (16-85 mpm)
- Band Drive: 15 hp (11.1kW)
- Hydraulic Pump: 3 hp (2.2kW)
- Hydraulic Tank Capacity: 22.5 gal (85 L)
- Coolant Pump: frac14; hp (0.2 kw)
- Coolant Tank Capacity: 58 gal (220 L)
- Material Pass Line Height: 28.3" (720 mm)
- Machine Weight: 24251 lbs (11000 kg)
- Dimensions W x L x H: 171.3 x 85 x 104.3" (4350x2160x2650 mm)
Standard Equipment:
- Programmable Logic Controller (PLC) control for all electric and hydraulic functions
- Multi-step full stroke vises with split front vise and variable vise pressure control
- Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
- Power driven, coolant flushed, blade cleaning wire brush
- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks
- Work light
- One 6.5 foot (2 meter) gravity conveyor
- Tool kit
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CDor USB data stick
