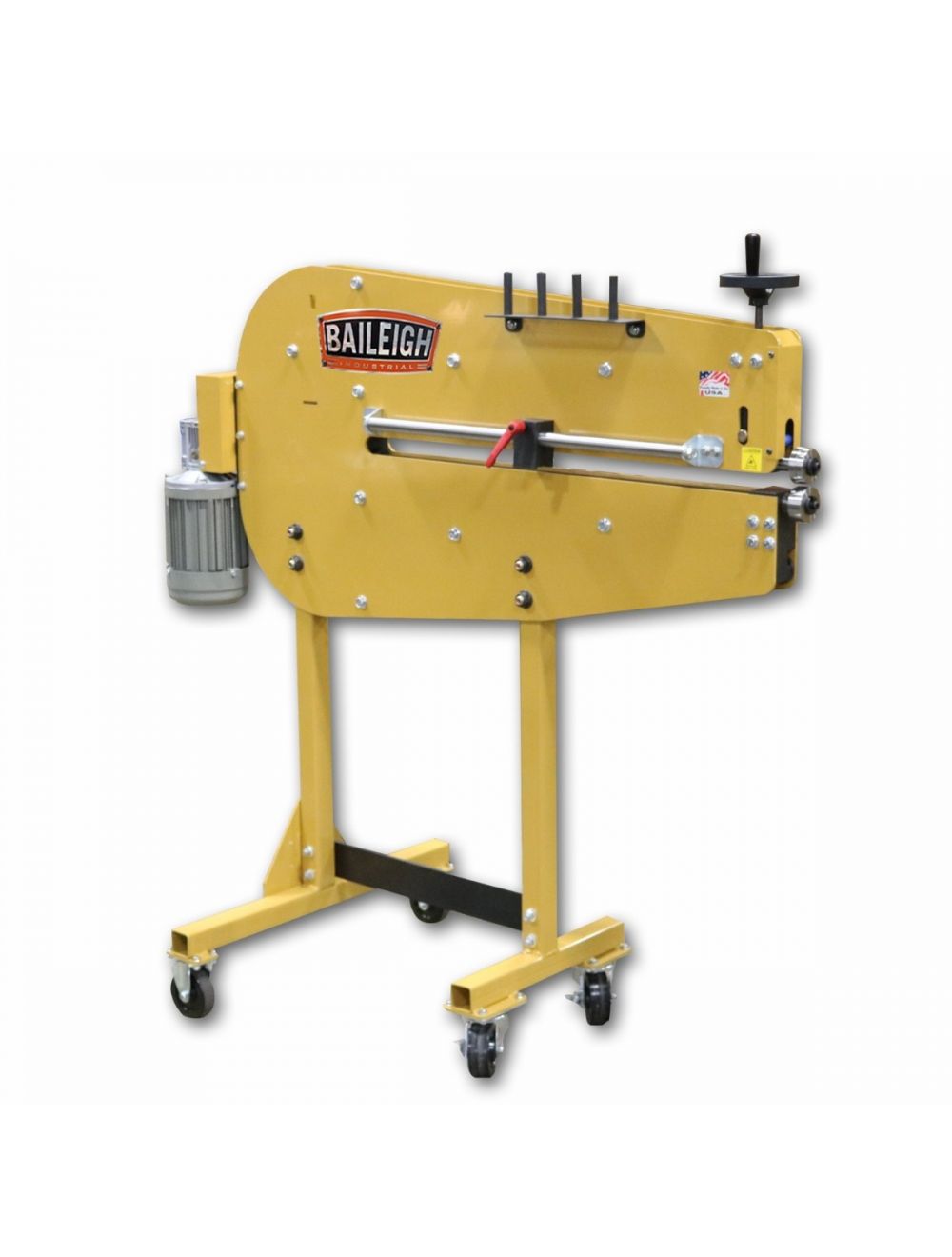

Baileigh BEAD ROLLER BR-16E-36EV

Built with a steel frame and an industrial gearbox, this power bead roller can handle heavy production cycles. A 36' throat lets you get to middle of large panels, like car roofs and hoods.

  • Made in the USA.
  • 16 gauge mild steel maximum capacity.
was $6,495.21 Special Price $5,349.00
SKU
1016574

DESCRIPTION

Built with a steel frame and an industrial gearbox, this power bead roller can handle heavy production cycles. A 36' throat lets you get to middle of large panels, like car roofs and hoods.

  • Made in the USA.
  • 16 gauge mild steel maximum capacity.
  • .5 hp motor runs on 110-volt power.
  • Variable-speed pedal lets you control the speed with your foot.
  • Press harder to go faster, or use less pressure to go slower for tricky designs.
  • You can also set a fixed speed for the rolls.
  • Material stop, adjustable on a large slide with a quick-release handle, lets you make perfectly straight beads every time.
  • Adjust the forming depth with the easily accessible handwheel above the working area.
  • Quick-release top die opens and closes while maintaining the same forming depth.
  • You can begin or end a design in the middle of the panel without worrying if the depth is correct.
  • Bottom die can slide in or out to create offsets for a custom profile. Most other bead rollers on the market don' t have this capability.
  • Comes standard with popular ' round bead set and .05" step roll set.
  • We offer a wide range of other dies. See our tooling for the BR-16E-36EV.
  • Accepts standard bead roll dies. Dies from most similar bead rollers are compatible.
  • Tool holder on top offers convenient storage.
  • All pivot points turn on long-lasting bronze bushings with grease fittings for convenient maintenance.
  • Rigid, fully welded steel frame gives this power bead roller the strength to shape metal accurately and reliably for many years.
  • Covered by a 1-year parts warranty.
  • We include lifetime technical support by phone from a team of experienced metalworkers.
  • This electric bead roller, tooling, and parts are usually in stock for quick shipping.

SPECIFICATIONS

Item Number BR-16E-36EV
Country of Manufacture United States
Motor Hp 1/2
Mild Steel Capacity 16 ga.
Throat Depth 36"
Capacity (Mild Steel) 16 ga.
Aluminum Capacity 14 ga.
Power 110V
Shipping Weight 515lbs
Shipping Dimensions (Inches) 60x44x72

* specifications subject to change without notice.
