ATech Machinery Crater-06 A/550 22in 550 mm Heavy Duty Automatic Upcut Miter Saw

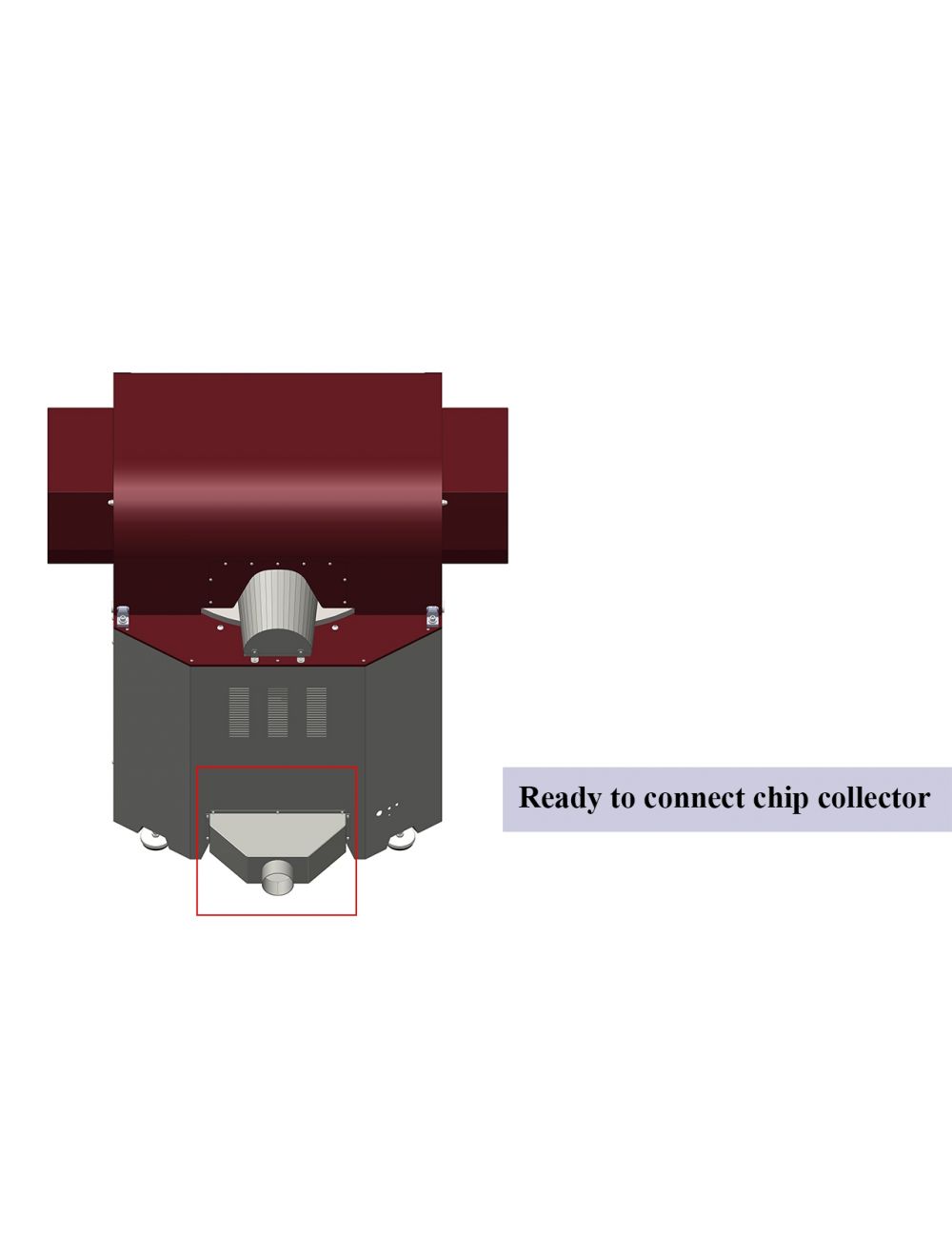

CRATER-06 A/550 is a heavy duty 22 (550 mm)automatic up cut miter saw. The saw blade feed is hydro-pneumatic, which provides extra mechanical power in addition to the motor power. Powerful enough to cut solid aluminum too. It is equipped with a high quality carbide tipped 550 mm (22in) saw blade, twin vertical & horizontal pneumatic clamps, pneumatic spray mist lubrication system, air gun and pneumatic safety top guard with LED lighting. Optional equipment includes infeed & outfeed tables, and heavy duty industrial type vacuum chip collector.

$15,500.00
SKU
Crater-06 A/550

CRATER-06 A/550 is a heavy duty 22 (550 mm)automatic up cut miter saw. The saw blade feed is hydro-pneumatic, which provides extra mechanical power in addition to the motor power. Powerful enough to cut solid aluminum too. It is equipped with a high quality carbide tipped 550 mm (22in) saw blade, twin vertical & horizontal pneumatic clamps, pneumatic spray mist lubrication system, air gun and pneumatic safety top guard with LED lighting. Optional equipment includes infeed & outfeed tables, and heavy duty industrial type vacuum chip collector.

  • Heavy duty upcut miter saw designed for straight and miter cuts of PVC (vinyl), aluminum extrusions and wood.
  • 0-15- 22, 5- 30- 45- 60-75 angle pin locks
  • Two hands safety operation
  • Intermediate angles are set via lock handle
  • Hydro-pneumatic saw blade feed for smooth and precise cutting (fully adjustable)
  • Adjustable saw blade risingspeed
  • Twin vertical pneumaticclamps(standard)
  • Additional horizontal pneumatic clamp (standard)
  • High quality carbide tipped 550 mm (22in) saw blade (standard)
  • 3 m (10) roller conveyor model MKN301 (optional)
  • Pneumatic spray mist lubrication system (optional)
  • Pneumatic safety top guard with LED lighting

OPTIONAL EQUIPMENT

  • KN-DX 10 Manual Infeed Roller Table with Digital Read-Out

TECHNICAL TABLE

Technical Features Imperial
4kW (5.5 HP) - 3-Ph 220V / 440V 50-60 Hz 2400 rpm D: 550 mm (22in) d: 30-32 mm 6~8 Bar (90-120 psi) 30 1/min. 152x133x152 cm (60inx52inx60in) 500 kg (1100 lbs)

AUTOMATIC UPCUT MITER SAW

CRATER-06 A/550 is a heavy duty 22 (550 mm)automatic up cut miter saw. The saw blade feed is hydro-pneumatic, which provides extra mechanical power in addition to the motor power. Powerful enough to cut solid aluminum too. It is equipped with a high quality carbide tipped 550 mm (22in) saw blade, twin vertical & horizontal pneumatic clamps, pneumatic spray mist lubrication system, air gun and pneumatic safety top guard with LED lighting. Optional equipment includes infeed & outfeed tables, and heavy duty industrial type vacuum chip collector.

Crater-06 A/550s heavy duty up cut miter saw is designed for straight and miter cuts of PVC (vinyl), aluminum, and wood materials. The machine has angle adjustments at 0-15- 22, 5- 30- 45- 60-75 via angle pin locks, whereas intermediate angles are set via a handle lock. In addition, it has a hydro-pneumatic saw blade feed for smooth and precise cutting (fully adjustable). The machine has two-handed safety operation, and adjustable saw blade rising speed.

The machine has been designed in accordance with CE, UL and CSA Safety Directives. You can have further information about the Crater-06 A/550 at ATechMachinery.com, watch demonstration videos, or read its detailed technical catalog and parts list.

Technical specifications and features are subject to change without prior notic
