SanRex SANMIG 250MF

SanRex SANMIG 250MF

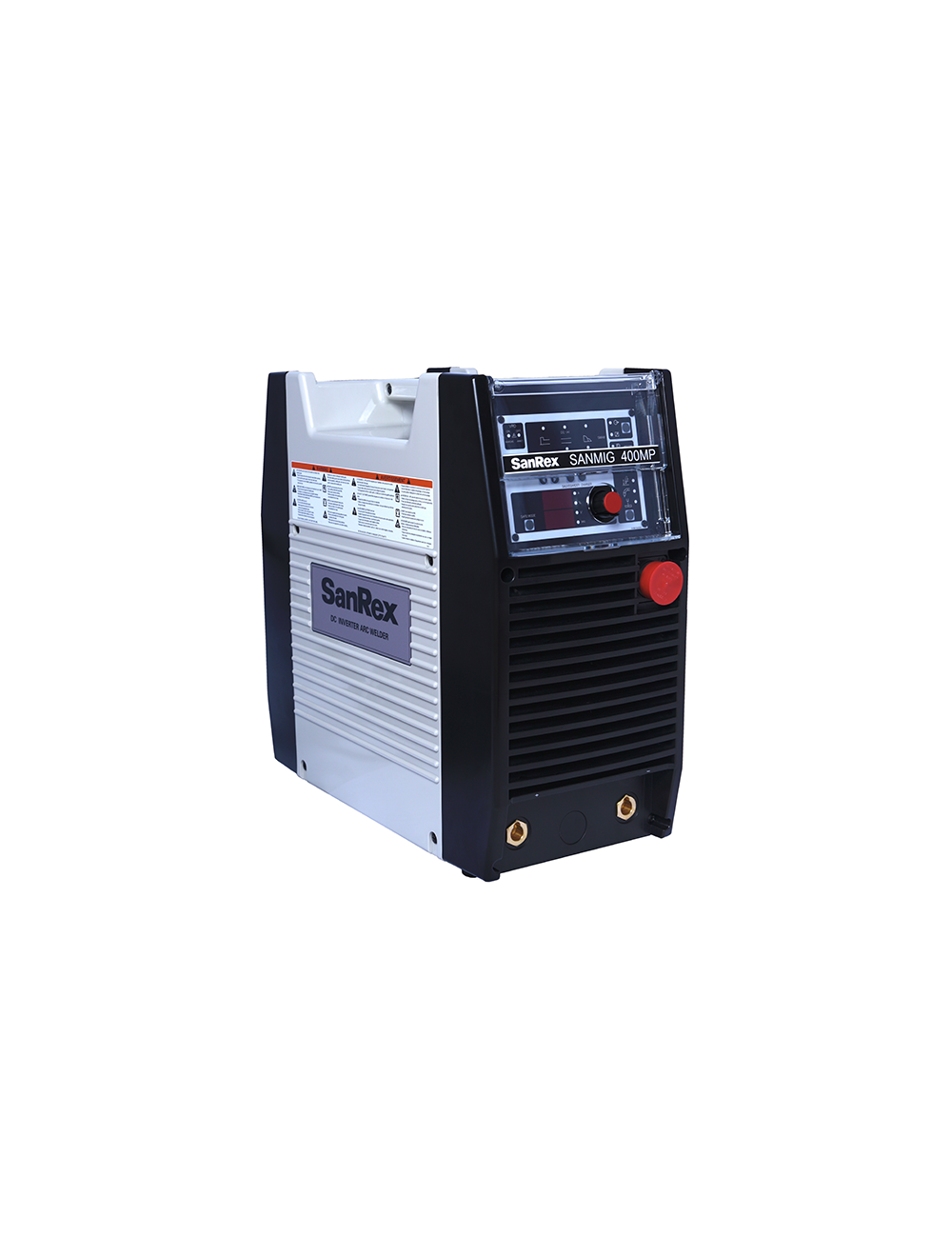

SanRex SANMIG 400MP

The SANREX SANMIG 400MP is a full multi process, multi voltage, digital control, DC, CC/CV, Pulse MIG/MIG/Stick/Lift TIG inverter power supply. Standard features include: Pulse MIG with 16 factory installed pulse programs, digital inductance control, lift TIG start, job Save & Load, VRD and cellulose E6010 compatibility. This is the ultimate unit designed for Pulse MIG, MIG, DC TIG and Stick welding.

Operates on 208-240 vac Single or Three phase, 460 vac three phase.

was $4,995.00 Special Price $4,745.00
SKU
ID-4000CP-U1E

The SANREX SANMIG 400MP is a full multi process, multi voltage, digital control, DC, CC/CV, Pulse MIG/MIG/Stick/Lift TIG inverter power supply. Standard features include: Pulse MIG with 16 factory installed pulse programs, digital inductance control, lift TIG start, job Save & Load, VRD and cellulose E6010 compatibility. This is the ultimate unit designed for Pulse MIG, MIG, DC TIG and Stick welding.

Operates on 208-240 vac Single or Three phase, 460 vac three phase.

MIG Pulse (Power Supply Only)
Full Multi-Process MIG/Pulse-MIG/L-TIG/STICK (E6010 Compatible)
Standards compliant integrated voltage reduction device (VRD)
14 Pin Receptacle
Smart Switch - Multi-voltage 208-230/460 VAC, single/three phase
Adjustable Inductance
Adjustable Arc Control
Adjustable Hot Start
Digital Amperage and Voltage Meter
Job Save/Load
3 Year Warranty


Machine Specifications
Input Voltage 208-230/460 VAC 1/3 Phase
Input Frequency 50/60 Hz
Output range 5 400 Amps
10 36 volts (115/230V)
Rated Output 300A @ 60% Duty Cycle
400A @ 25% Duty Cycle
Max OCV 65
Dimensions (HxWxD) 16.5inx8.3inx17.7in (420x210x450mm)
Weight 55.6 lbs. (25.22 kg)

More Information
Amperage 400 AMP
