ATech Machinery Phoenix-02 DH Automatic PVC Vinyl Double Head Welding Machine

$21,000.00
SKU
Phoenix-02 DH

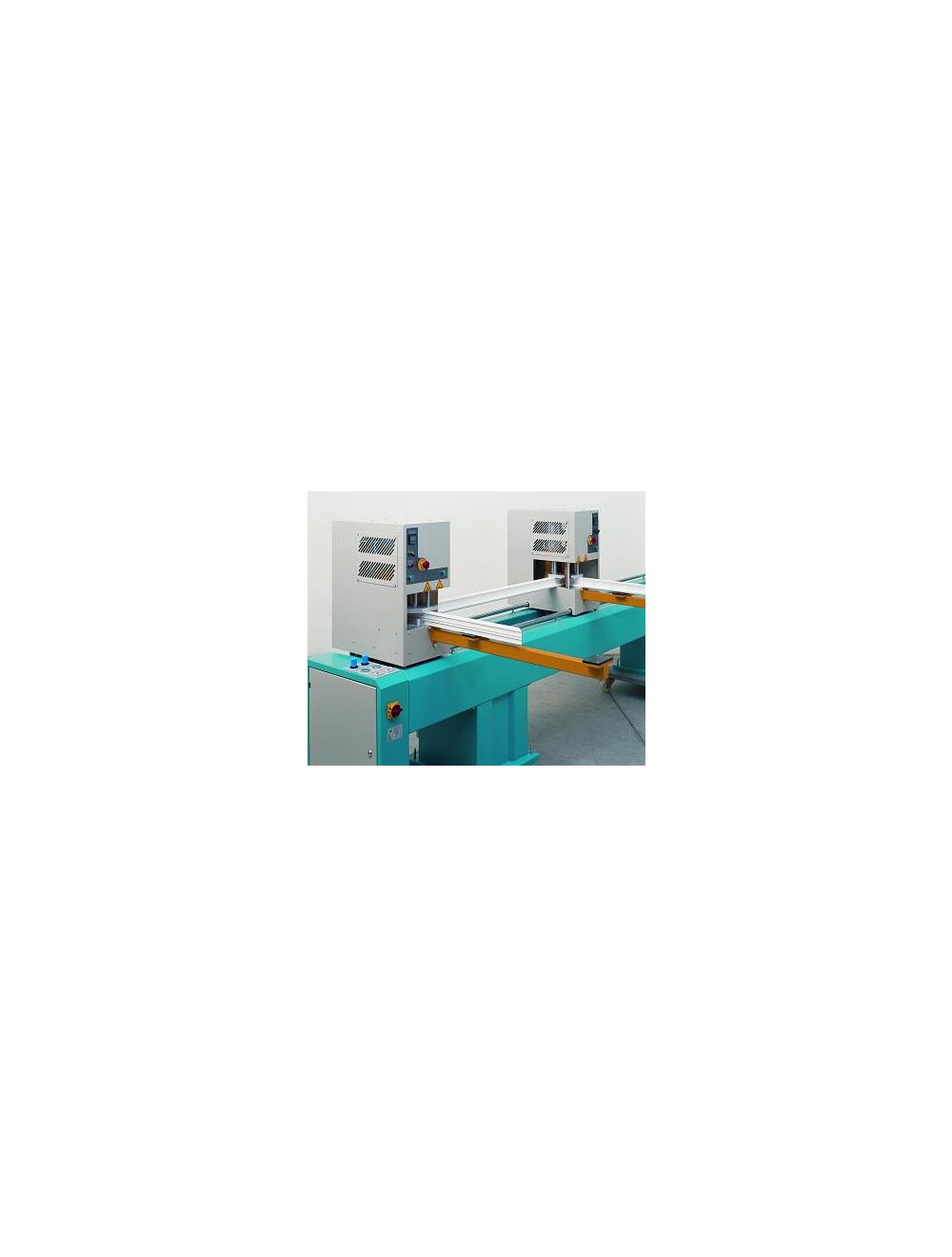

Automatic PVC Vinyl Double Head Welding Machine

Phoenix-02 DH is anautomatic double head cornervinyl (PVC)welding machine. It has been designed for the joining of vinyl profiles though corner welding and it is capable of adjusting the clamp and welding pressure according to the profile type.The machine equipped with a timer for melting and welding time. In addition to that, it has electronic thermostat which can be adjusted in a temperature range between 0-260C.

  • Machine has been designed for the joining of vinyl profiles though corner welding
  • Capable of adjusting the clamp and welding pressure according to the profile type
  • Equipped with a timer for melting and welding time
  • The thermostat is electronic and can be adjusted in a temperature range between 0-260C
  • The movable head (right head) moves manually. It is equipped with a brake system
  • On the left head it is possible to weld at angles between 30-180. The right head is fixed at 90
  • For safety reasons, the clamp pistons operate with low pressure
  • After clamping the profiles, the welding is carried out automatically
  • The machine has been designed according to CE, UL & CSA Safety Directives
  • Equipped with profile support arms
  • Lateral profile supports . Special profile guidance . Users manual
  • Profile fixtures

TECHNICAL TABLE
Technical Features Imperial
3 kW 1-Phase 220V 60 Hz max h:5.1in b:5.5in (max.) a:15-180 90-120 psi 1 CFM 30x168x67 1,190 lbs
Technical Features Metric
3 kW 1-Phase 230V 50Hz Max. h: 160 mm b: 130 mm (45) a: 15-180 6-8 Bar 12 l/min 405x94x188 cm 545 kg
AUTOMATIC DOUBLE HEAD VINYL (PVC) WELDING MACHINE

Phoenix-02 DH is anautomatic double head cornervinyl (PVC)welding machine. It has been designed for the joining of vinyl profiles though corner welding and it is capable of adjusting the clamp and welding pressure according to the profile type. The machine equipped with a timer for melting and welding time. In addition to that, it has electronic thermostat which can be adjusted in a temperature range between 0-260C.

Phoenix -02 DHs movable right head moves manually and it is equipped with a brake system. It is possible to weld at angles between 30-180 on the left head, whereas the right head is fixed at 90. The clamp pistons operate with low pressure for safety reasons and welding is carried out automatically after clamping the profiles.

The machine has been designed in accordance with CE, UL and CSA Safety Directives. You can have further information about the Phoenix-02 DH at ATechMachinery.com, watch demonstration videos, or read its detailed technical catalog and part lists.
