Baileigh PROGRAMMABLE TUBE BENDER RDB-350-TS

This tubing bender for sale will stand up to the rigors of any shop' and save you time. The RDB-350-TS industrial tubing bender bends 180 in 16 seconds. And its quick-release die system speeds up production.

• Proudly engineered and made in the USA.
• Capacity of 2.5' schedule 40 pipe and 3' tube with .187' wall thickness.
• 24' centerline radius maximum.
• Bends to 360 in one shot, both left and right.
• You can program the desired angle, material springback, and bend speed for easy repeatability.
• Programmer can also keep track of rotational orientation.
• Touchscreen controller designed for user-friendly programming.
• 320 rotation of the controller lets you operate RDB-350-TS from any side of the machine.
• Internal memory can store up to 170 programs of 10 bends per program.
• Unlimited program storage/backup via the micro SD port (standard 2CB SD card).
• Quick-release counter die system allows allows you to load and unload the pipe bender quickly for high production runs.
• Like all Baileigh tubing benders, the RDB-350-TS is compatible with our standard drop-on tooling. We can also make custom tooling for your application.
• Accepts a rotary positioning table, available from in several lengths, to achieve accurate bends on varying planes.
• We cover this pipe bender with a 1-year parts warranty.
• Includes lifetime technical support by phone, so you can call up a Baileigh representative anytime for project advice and troubleshooting.

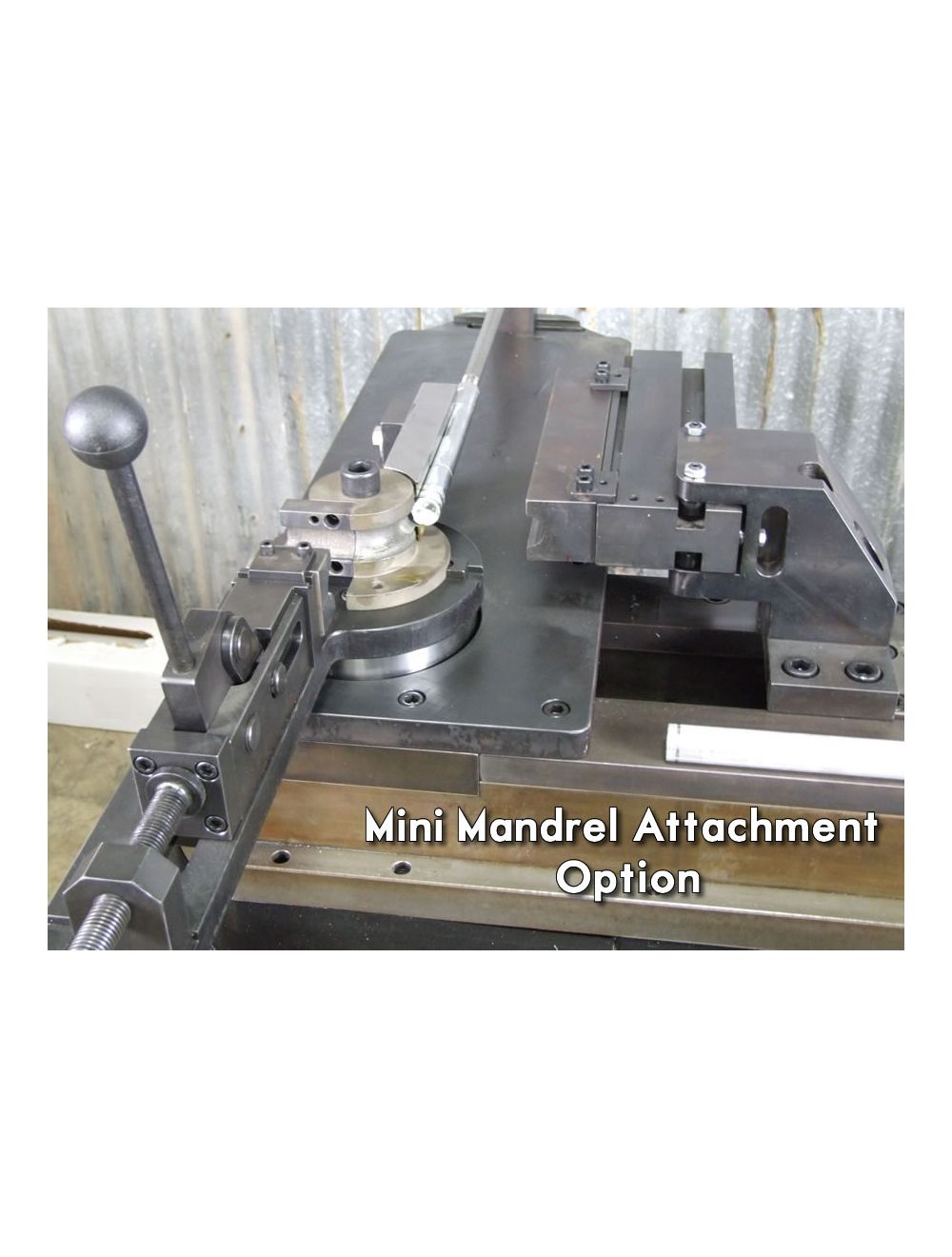

Mini Mandrel Attachment For The RDB-350 Tube Bender (optional)
