Baileigh SHEAR BRAKE ROLL SBR-1220

In stock
SKU
B1006957
Special Price $426.55 Regular Price $449.00

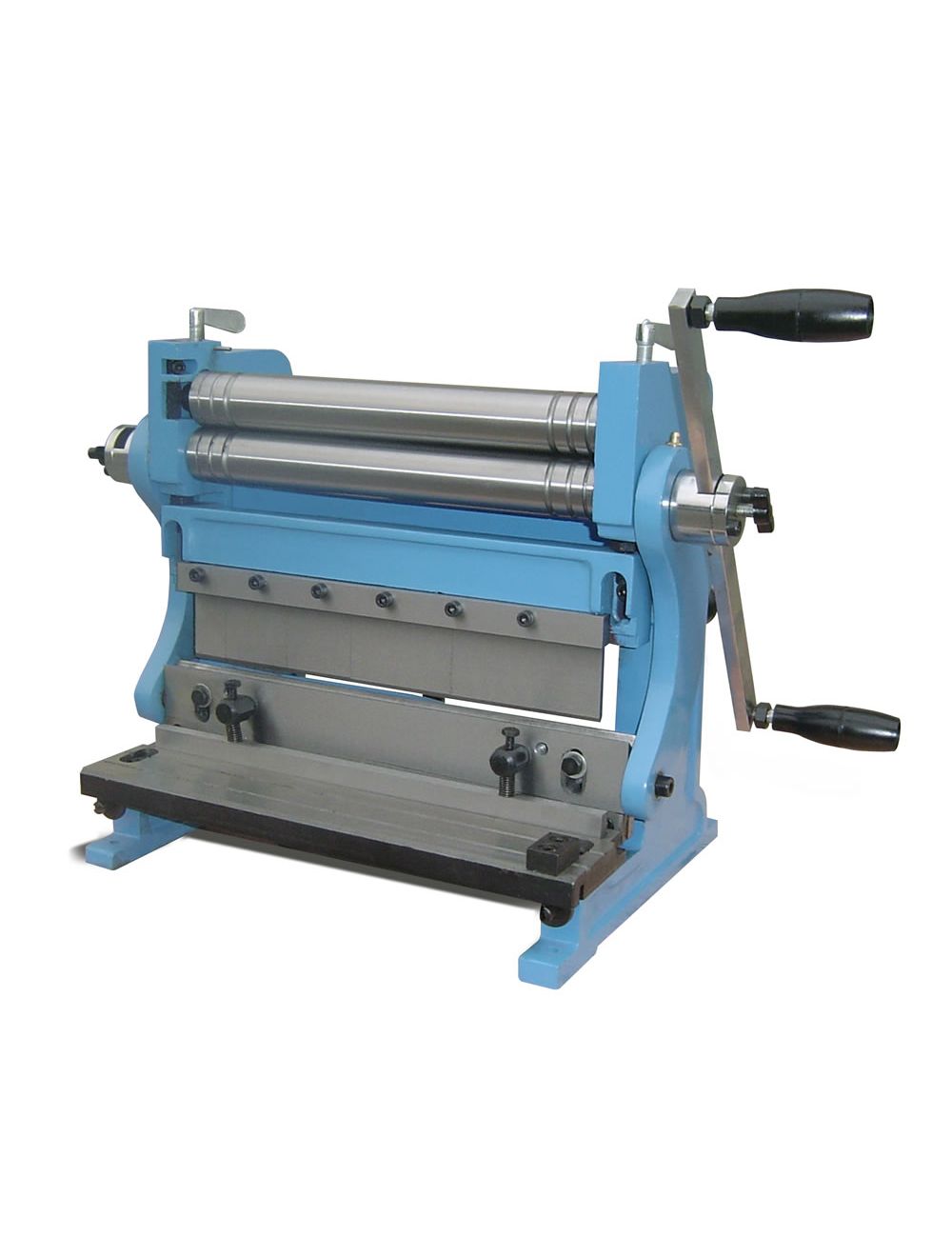

The SBR-1220 is a manual shear, press brake, and slip roll all in one. Great for hobbyists, maintenance, and R&D shops, this combination machine saves space.

  • Maximum capacity of 20 gauge mild steel for all functions.


Questions? Call us at (781) 937-5655

DESCRIPTION

The SBR-1220 is a manual shear, press brake, and slip roll all in one. Great for hobbyists, maintenance, and R&D shops, this combination machine saves space.

  • Maximum capacity of 20 gauge mild steel for all functions.
  • Handles material up to 12€ wide, just right for those small jobs.
  • Slip roll portion on top has hardened and polished shafts for long life.
  • Minimum rolling diameter of 1.54€.
  • 3 grooves in the roll let you form wire perfectly.
  • Adjustable fingers on the top beam can make boxes of varying sizes with.
  • Press brake portion in the middle gives you a maximum bend angle of 90° for perfect corners.
  • You can tighten or loosen the frame and adjust the camber of the tooling for consistent bending across the material.
  • Shear station uses hardened, reversible blades that stay sharp over a long lifetime of us.
  • Spring-loaded hold-down will save a time and waste when you're shearing.
  • Large, double-sided handles allow 2 operators to apply force.
  • You get one full up-down cycle out of each tool with one 360° turn of the handle.
  • Manual back gauge ensures repeatability on shear and brake projects.
  • Weighs 125 lbs. with a powerful steel frame that maintains accuracy.
  • Covered by a 1-year parts warranty.
  • Comes with lifetime technical support by phone from our team of knowledgeable reps.

SPECIFICATIONS

Item Number SBR-1220
Max. Material Thickness (Stainless Steel) .019"
Rolling Capacity 20 ga. (.036€)
Shear Capacity 20 ga.
Min. Rolling Dia. 1.54€
Bed Width 12"
Bending Capacity 20 ga. (.036€)
Maximum Bend Angle 90°
Power Manual
Shipping Weight 135lbs
Finger Lengths 1", [email protected]/8", 3-1/8", 4-1/8"
Finger Thickness 3/16"
Shipping Dimensions (Inches) 36x17x17

* specifications subject to change without notice.
