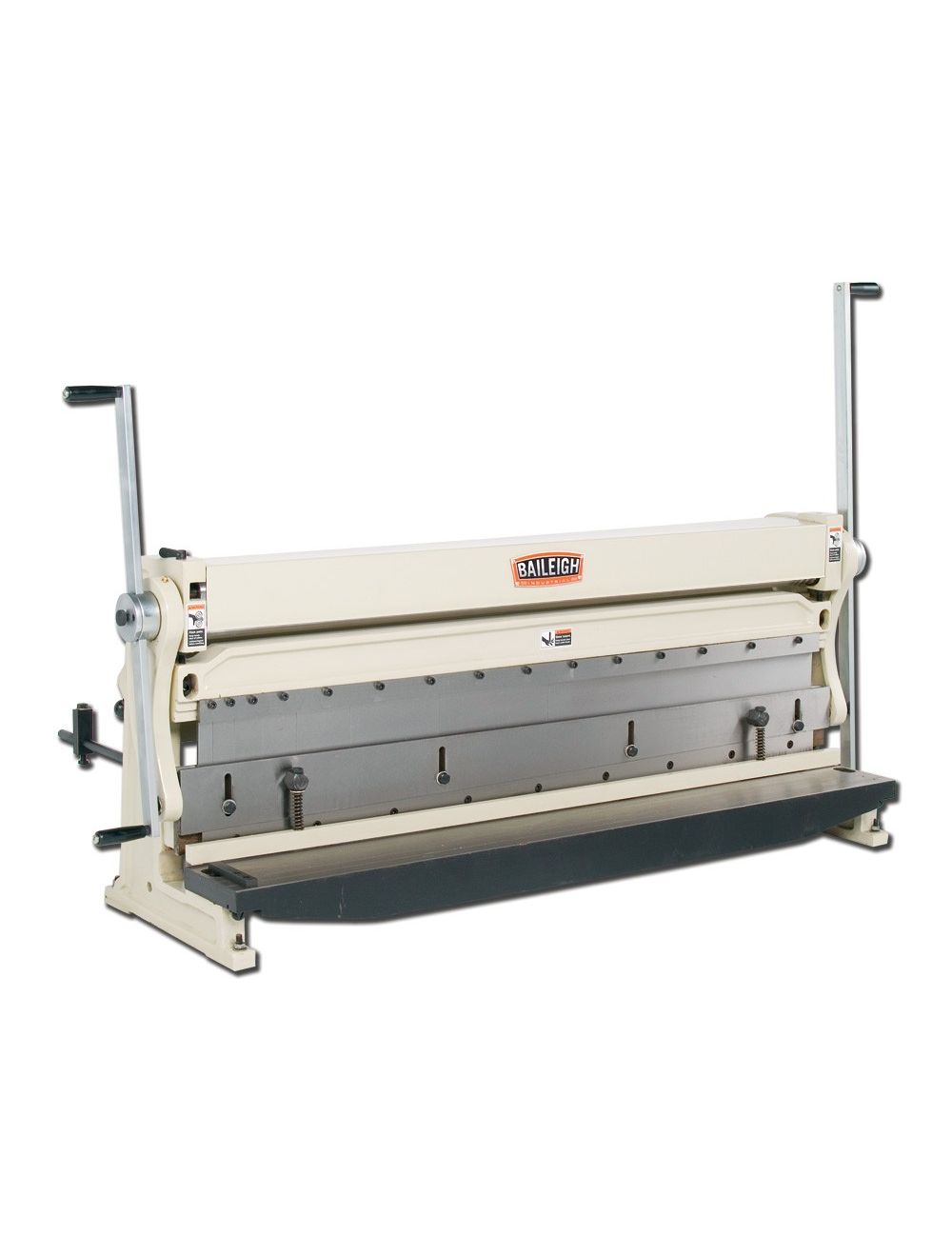

Baileigh 3-IN-1 SHEAR BRAKE ROLL MACHINE SBR-4020

The SBR-4020 shear brake roll machine has a small floor plan for shops with limited space. You can mount this combination machine to a bench or stand. Get a durable 3 in 1 sheet metal machine for an affordable price!

  • 40' working width for rolling, bending, and shearing.
  • Maximum capacity of 20 gauge mild steel and 16 gauge aluminum for all functions.
was $2,791.64 Special Price $2,299.00
SKU
1006968

DESCRIPTION

The SBR-4020 shear brake roll machine has a small floor plan for shops with limited space. You can mount this combination machine to a bench or stand. Get a durable 3 in 1 sheet metal machine for an affordable price!

  • 40' working width for rolling, bending, and shearing.
  • Maximum capacity of 20 gauge mild steel and 16 gauge aluminum for all functions.
  • Manual slip roll on the top portion of the machine can create sheet metal rolls with a 1.70' minimum diameter.
  • Hardened rolls with 3 grooves can form wire or small round stock.
  • Manual press brake bends up to 90 and includes a V die set.
  • Crowning feature lets you set the camber of the tooling so it bends consistently across the machine' s full width.
  • Hardened adjustable dies (from 1' to 10-' ' ) on the upper beam of the press brake can make boxes and pans.
  • Metal shear on the bottom uses spring-loaded clamps to hold the material down and produce clean, crisp shearing across the machine.
  • Shear blades are hardened and reversible, so they stay sharp.
  • Large handles with grips on both sides allow 2 operators to combine their force and make the machine easier to use.
  • Each 360 turn of the handles gives you a full cycle on each of the machines.
  • Back gauge helps ensure repeatability.
  • Heavy-duty steel frame adds strength to the 461-pound machine, so it delivers accurate results for many years.
  • 3 in 1 sheet metal machine covered by a 1-year parts warranty.
  • You can count on lifetime technical support by phone. Call up our team of knowledgeable reps whenever you have questions.

3 in 1 sheet metal machine recommended for: Hobbyists, maintenance, and R&D shops.

SPECIFICATIONS

Item Number SBR-4020
Max. Material Thickness (Stainless Steel) .019"
Rolling Capacity 20 ga. (.036' )
Shear Capacity 20 ga. (.036' )
Min. Rolling Dia. 1.70'
Bed Width 40"
Bending Capacity 20 ga. (.036' )
Power Manual
Shipping Weight 465lbs
Shipping Dimensions (Inches) 53x18x28

* specifications subject to change without notice.
