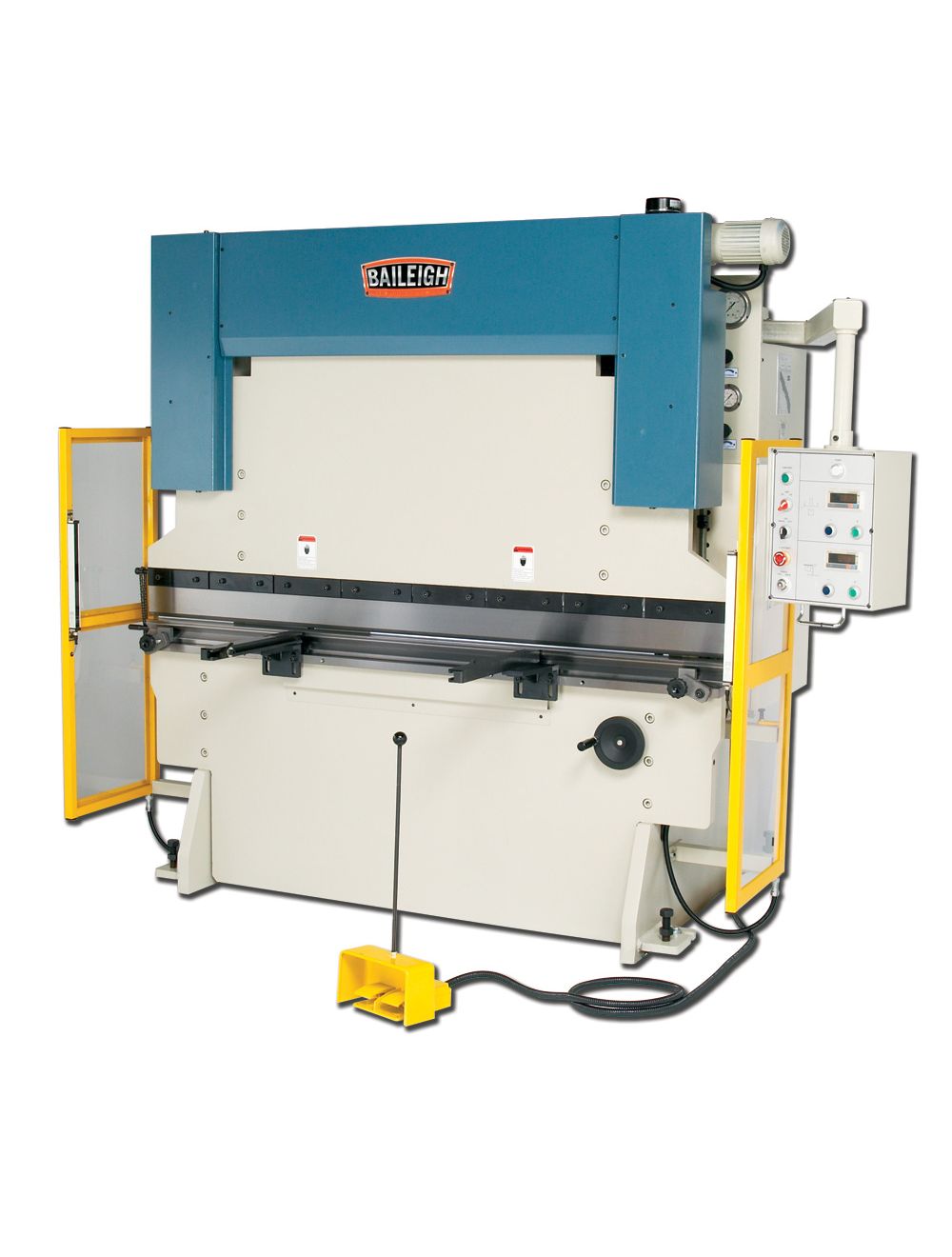

Baileigh HYDRAULIC PRESS BRAKE BP-6778NC

  • A heavy steel frame keeps this industrial press brake accurate for decades. In just 5 minutes, anyone can learn to use the encoder-controlled stroke and back gauge, each with a DRO.
  • Delivers up to 67 tons of pressure.
  • Bends sheet metal up to 78.75' wide.
  • Maximum capacity of .157' thick sheet metal across the machine' s full width.
  • 7.5 hp main motor runs on 220-volt 3-phase power.
was $66,480.93 Special Price $54,749.00
SKU
1000835

DESCRIPTION

  • A heavy steel frame keeps this industrial press brake accurate for decades. In just 5 minutes, anyone can learn to use the encoder-controlled stroke and back gauge, each with a DRO.
  • Delivers up to 67 tons of pressure.
  • Bends sheet metal up to 78.75' wide.
  • Maximum capacity of .157' thick sheet metal across the machine' s full width.
  • 7.5 hp main motor runs on 220-volt 3-phase power.

POWERFUL, EASY-TO-USE HYDRAULIC SYSTEM

  • Runs in 3 modes: jog mode for setup, manual mode for more control over descent and return, and automatic mode for full production.
  • 2 encoder-controlled hydraulic cylinders move the top beam.
  • Digital readout (DRO) displays the position of the downward stroke, so you can fine-tune a bend and make it right every time.
  • It takes a just few seconds to change the top beam pressure and the top position of the stroke (for more or less travel).
  • You can set a timer for bend delay to hold the beam down at the bottom of the stroke, so the bend won't lose its shape.
  • 2 hand wheels let you adjust the position of the beam and back gauge for consistency across the entire width of the beam.
  • Foot pedal brings the stroke up and down, leaving your hands free to position the material.
  • Motorized back gauge rides on a solid ball screw trolley mechanism.
  • Back gauge encoder shows its position on its own DRO.
  • Parallel mechanism on the beam synchronizes the top and bottom die to deliver better quality bends across the entire width of the machine.

RIGID STRUCTURE AND LOW MAINTENANCE

  • Heavy electrowelded frame, made of solid steel, enables this press brake to stay accurate and run smoothly in production for many years.
  • Massive 7,700-pound construction supports the hydraulic pressure, so the machine stands firm at full capacity.
  • Upper beam rides on a hardened, stabilizing track, coupled together by 3 axes of bearings, to ensure high accuracy between both dies at any position of the stroke.
  • Includes a set of hardened single-Vee American tooling.
  • Accepts standard press brake tooling, giving you a wide variety of options.
  • Comes with front material rests (or support arms), which some competing machines do not include.
  • 6-light safety curtain helps protect you from injury. This guard stops the machine from running if your hand passes through the light beam.
  • 4 grease zerks let you add oil every few months.
  • Large hydraulic reservoir on the back allows for convenient fluid changes every 6 to 8 months.

FAST SHIPPING AND LIFETIME SERVICE

  • Typically in stock and usually ships in 72 hours.
  • Most replacement parts are in stock at our Wisconsin headquarters, so we can get them to you without delay.
  • Comes covered by a 1-year parts warranty.
  • We provide lifetime technical support by phone. All of our reps have hands-on machine experience. Call us whenever you need help and advice on a project.

Recommended for: Industrial shops, maintenance shops, and R&D shops.

SPECIFICATIONS

Item Number BP-6778NC
Country of Manufacture Taiwan
Gauge Length 17201
Return Speed 2.36" / sec.
Oil Capacity 35 gal
Bending Capacity Max Length Max Thickness 78.75" / .157"
Stroke Distance 5.9"
Table Width 6.29"
Approach Speed 3.14" / sec.
Back Gauge Motor 1/2 hp
Bending Speed .275" / sec.
Main Motor 7.5 hp
Max. Capacity 67 tons
Distance Between Housings 61"
Distance From Table To Ram 11.81"
Power 220V / 3-phase
Shipping Weight 7700lbs
Shipping Dimensions (Inches) 103x76x98

* specifications subject to change without notice.
