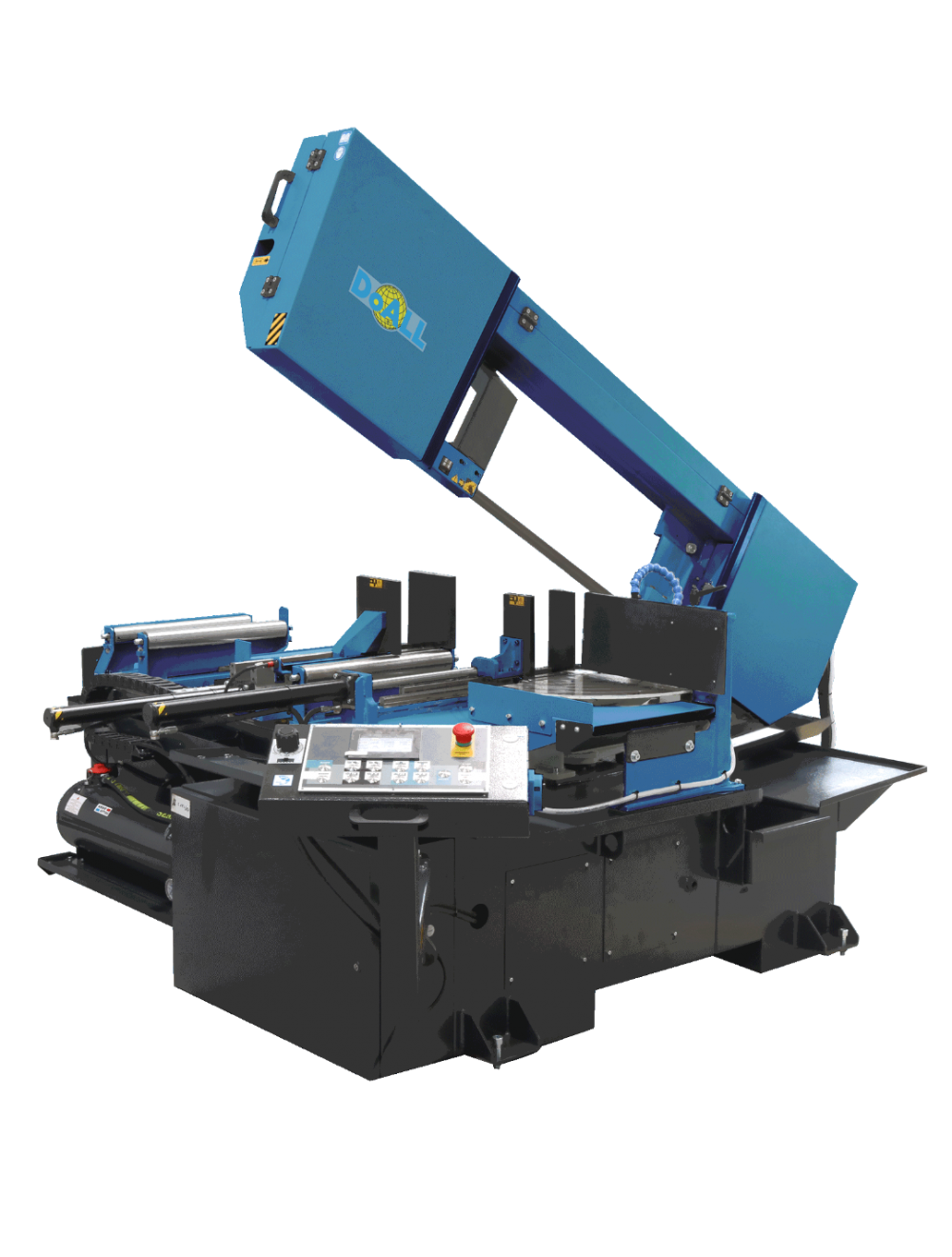

DoAll S-500CNC MITER CNC BAND SAW

Machine Capacity: 14 x 20 (360x500mm)
Round Tube: 14 (360mm) | Round Solid: 9-7/8 (250mm)
Production Level: Intermittent

The DoALL S-500CNC StructurALL miter, CNC automatic, metal-cutting band saw is ideal for fabricating shops, maintenance facilities, tool and manufacturing plants. The S-500CNC can also be classified as a horizontal structural, scissor-style miter-cutting saw. Hydraulically controlled, this CNC machine provides automatic indexing for multiple material feeds. With the easy-to-use controller, operators need only remove the material that has been cut. Designed for vertical and angular cuts, the S-500CNC is adjustable to 60 to the right in semi-automatic mode only.

Product Specifications:

• Cutting Capacity Round Tube: 14" (360mm)
• Cutting Capacity Rectangle: 14 x 20" (360x500mm)
• Cutting Capacity Round Solid: 9-7/8" (250mm)
• Miter Cutting: 60 right
• Nesting Capacity (Min to Max): 8.7 x 19.7" (220 x 500mm)
• Auto Index Single Stroke Min-Max: 0.12-19.7" (3-500mm)
• Auto Index Multiple Stroke Min-Max: 394" (9999mm)
• Capacity Round at 45: 14.2" (360mm)
• Capacity Rectangle at 45: 7 x 14.2" (180x360mm)
• Capacity Round at 60: 11.8" (300mm)
• Capacity Rectangle at 60: 13.75 x 10.2" (350x260mm)
• Band Saw Blade: Width: 1-1/4 x 0.042" (34x1.1mm), Length: 187" (4750mm)
• Band Speed: 65-328 fpm (20-100mpm)
• Band Drive Motor: 4 hp (3kW)
• Hydraulic Pump: 1.14 hp (0.85kW)
• Coolant Pump: 0.07 hp (0.05kW)
• Coolant Tank Capacity: 5-1/4 gal (20 lit)
• Material Pass Line Height: 31-1/2" (800mm)
• Remnant Length Drop: 0.8" (20mm)
• Machine Weight: 3307 lbs (1500kg)
• Dimensions W x L x H: 100 x 100 x 56" (2550x2550x1420mm)

Standard Equipment:

• Mitsubishi saw control
• Variable frequency drive
• Pulley-driven band brush
• Overfeed protection
• Digital read out of cutting angle
• Hydraulic band tension
• Flood coolant
• Tool kit
• Complimentary DoALL cutting fluids package
• One (1) complimentary DoALL bi-metal saw blade
• Operations and parts manuals on CD or USB data stick

Optional Accessories:

• Front hydraulic vise
• Mist-style saw band lubrication
• Variable vise pressure control
• Specialized conveyors
• Work light
• Cut piece collection box with drain
• Chip pan with drain
• Handle for chip pan or collection box
• Input or output roller conveyor with drip pan
• Heavy-duty input or output roller conveyor with drip pan
• Input and output filler conveyor with drip pan
• Input and output powered conveyor with drip pan, specially shaped for angle cutting
• Fixed or movable vertical guide roller
• Additional conveyor rollers
• Wear parts service kit
• Start-up kit
