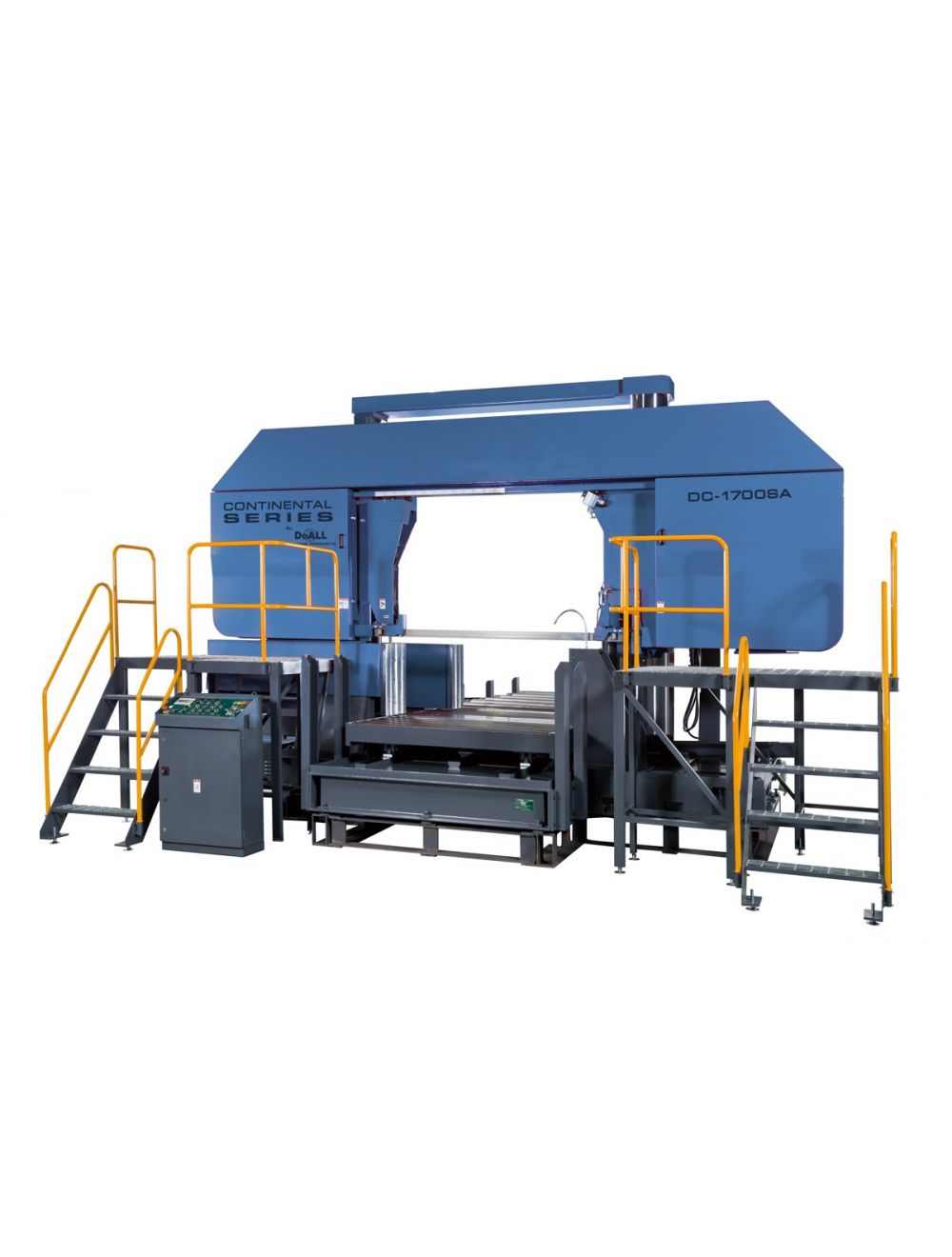

DoALL Dc-1700Sa Dual Column, Semi-Automatic Continental Series High Production, Horizontal Band Saw

Machine Capacity: 51-1/4 x 67 (1300x1700mm) | Round: 51-1/4" (1300mm)
Production Level: High

The DC-1700SA Dual Column, Semi-Automatic Continental Series high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL dual column, semi-automatic saws is the perfect choice.

Standard Equipment:

• Programmable Logic Controller (PLC) control for all electric and hydraulic functions
• Power driven, coolant flushed, blade cleaning wire brush
• Flushing hose and auxiliary coolant nozzles
• Hydraulic blade tension
• Automatic chip conveyor
• Blade breakage/stall motion detector shut off switch
• Band door interlocks
• One 6.5 foot (2 meter) gravity conveyor
• Tool kit
• Complimentary DoALL Cutting Fluids package
• One DoALL bi-metal saw blade
• Instruction and parts manuals on CDor USB data stick

SPECIFICATIONS:

• Cutting Capacity Round: 51.2" (1100mm)
• Cutting Capacity Rectangle: 67" x 51.2" (1700x1300mm)
• Band Saw Blade (L x W x Gage): 512 x 3-3/20 x 0.063" (13000x80x1.6mm)
• Band Speed: 39-246 FPM (12"75 m/min)
• Band Drive: 20 hp (15 kw)
• Hydraulic Pump: 5 hp (3.7kW)
• Hydraulic Tank Capacity: 43.6 gal (165 L)
• Coolant Pump: hp (0.2 kw)
• Coolant Tank Capacity: 74 gal (280 L)
• Material Pass Line Height: 26.8" (680 mm)
• Machine Weight: 46297 lbs (21000 kg)
• Dimensions W x L x H: 244 x 110.2 x 149.6†â€™ (6200 x 2800 x 3800 mm)
