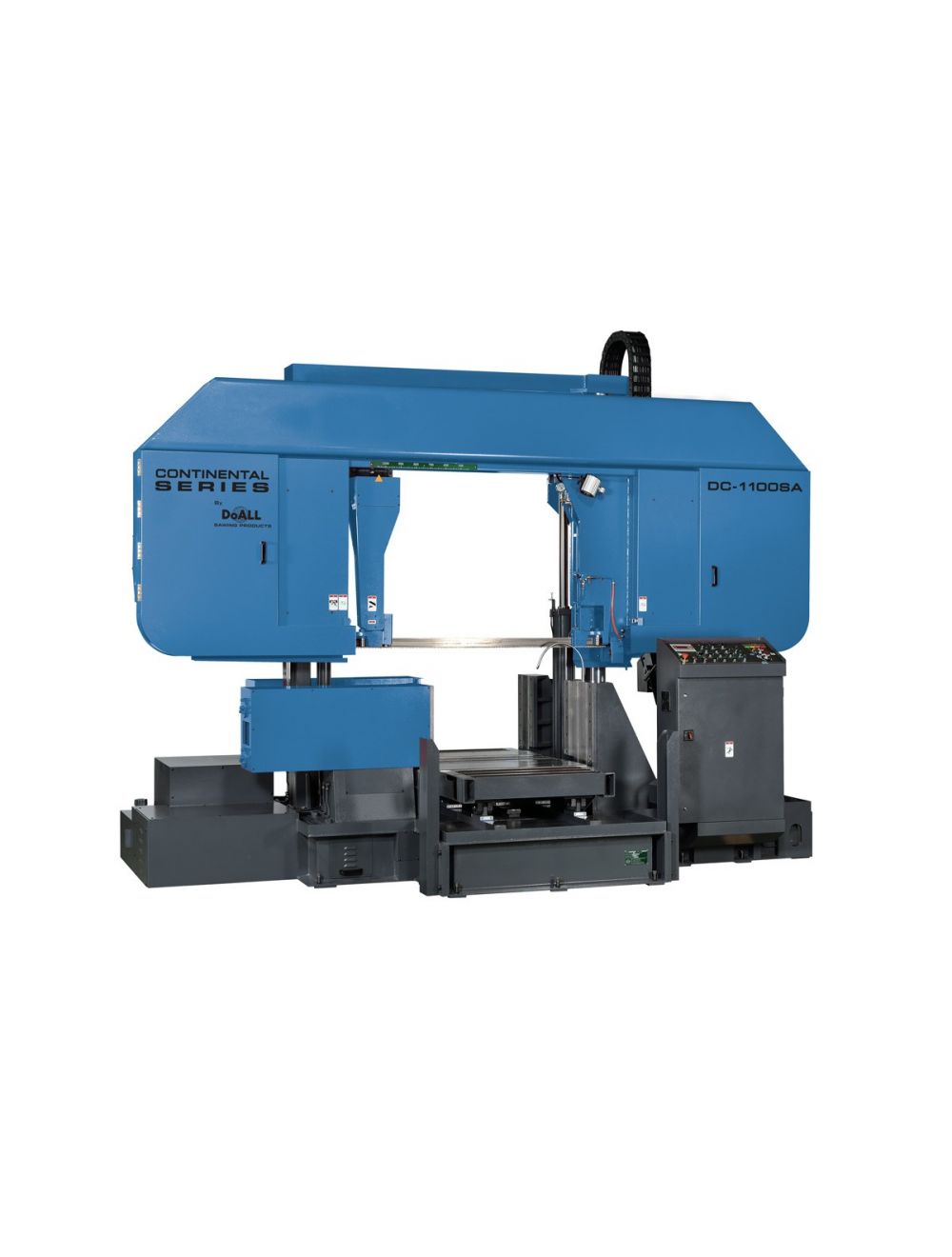

DoALL DC-1100SA DUAL COLUMN SEMI-AUTOMATIC BAND SAW

Machine Capacity: 43-1/2 x 43-1/2 (1100x1100mm) | Round: 43-1/2"
Production Level: High

The DC-1100SA Dual Column, Semi-Automatic Continental Serieshigh production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis. While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL dual column, semi-automatic saws is the perfect choice.

Standard Equipment:

• Programmable Logic Controller (PLC) control for all electric and hydraulic functions
• Power driven, coolant flushed, blade cleaning wire brush
• Flushing hose and auxiliary coolant nozzles
• Hydraulic blade tension
• Automatic chip conveyor
• Blade breakage/stall motion detector shut off switch
• Band door interlocks
• One 6.5 foot (2 meter) gravity conveyor
• Tool kit
• Complimentary DoALL Cutting Fluids package
• One DoALL bi-metal saw blade
• Instruction and parts manuals on CDor USB data stick

Specifications

• Cutting Capacity Round: 43.3 (1100mm)
• Cutting Capacity Rectangle: 43.3 x 43.3 (1100x1100mm)
• Band Saw Blade (L x W x Gage): 394 x 2.64 x 0.063" (10000x67x1.6mm)
• Band Speed: 49-262 fpm (15-80 mpm)
• Band Drive: 15 hp (11.1kW)
• Hydraulic Pump: 3 hp (2.2kW)
• Hydraulic Tank Capacity:23.8 gal (90 L)
• Coolant Pump: hp (0.2 kw)
• Coolant Tank Capacity:53 gal (200 L)
• Material Pass Line Height:26.8" (680 mm)
• Machine Weight:30865 lbs (14000 kg)
• Dimensions W x L x H: 181.1 x 94.5 x 128 (2400 x 4600 x 3250 mm)
