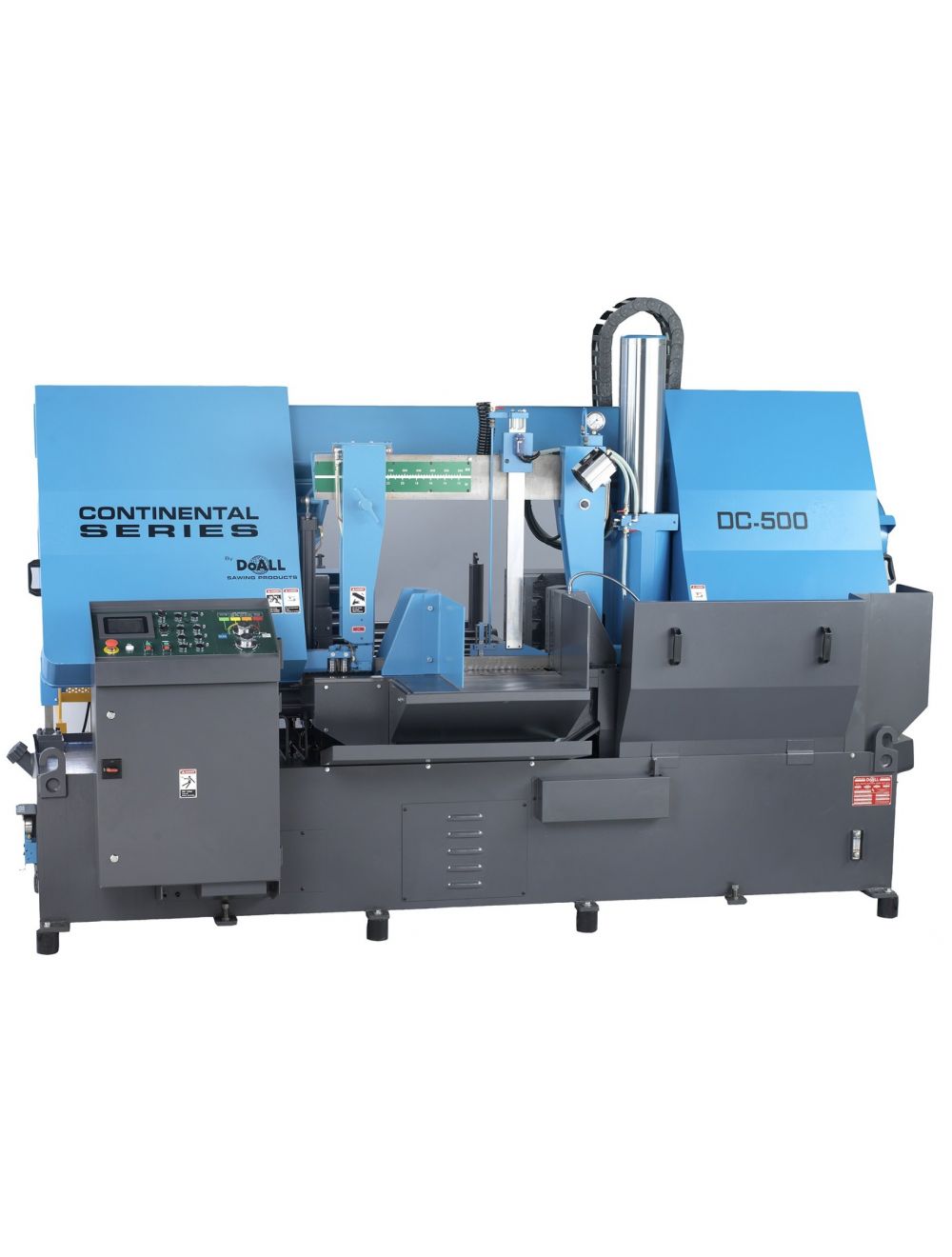

DoAll DC-500SA SEMI-AUTOMATIC BAND SAW
Machine Capacity: 20 x 22" (500x560mm) - Round: 20" (500mm)
Production Level: High
The DC-500SA Semi-Automatic Continental Seriesof high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis.While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut. Semi-automatic operation also increases blade life and cutting accuracy as the operator is not manually pressuring or overloading the saw blade during the cut.
Machine Capacity: 20 x 22" (500x560mm) - Round: 20" (500mm)
Production Level: High
The DC-500SA Semi-Automatic Continental Seriesof high production, horizontal band saws by DoALL are designed for cutting a wide range of metals on a production basis.While DoALL semi-automatic saws do not offer an auto-indexing, they do cut single pieces extremely efficiently. If you have operations that do not require indexing, high production or automatic cutting cycles, an affordable DoALL semi-automatic saws is the perfect choice. Once you have set your desired feed rate, blade speed and initial vise opening, a cut is complete, the band shuts off and the head returns to the upright open position and locks. Then the operator must manually reposition the material for another cut. Semi-automatic operation also increases blade life and cutting accuracy as the operator is not manually pressuring or overloading the saw blade during the cut.
SPECIFICATIONS:
- Cutting Capacity Round: 20" (500mm)
- Cutting Capacity Rectangle: 20 x 22" (500x560mm)
- Maximum Nesting Capacity: 18.9 x 9.4" (480 x 240 mm)
- Minimum Nesting Capacity: 9.4 x 3" (240 x 80 mm)
- Band Saw Blade (L x W x Gage): 215 x 1-1/2 x 0.05" (5450x41x1.3mm)
- Band Speed:52-430 fpm (16-128mpm)
- Band Drive Motor: 10 hp (7.5 kW)
- Hydraulic Pump: 2 hp (1.5 kW)
- Hydraulic Tank Capacity: 29 gal (110 lit)
- Coolant Motor: hp (0.2 kW)
- Coolant Tank Capacity: 29 gal (110 lit)
- Material Pass Line Height: 29.5" (750 mm)
- Floor Space Required (L x W x H): 114 x 61 x 71" (2890x1550x1800mm)
- Machine Weight: 5732 lbs (2600 kg)
Standard Equipment:
- Programmable Logic Controller (PLC) control for all electric and hydraulic functions
- Multi-step full stroke vises with split front vise and variable vise pressure control
- Spring loaded, zero clearance, coolant through, carbide faced saw guide with lead-in rollers
- Power driven, coolant flushed, blade cleaning wire brush
- Flushing hose and auxiliary coolant nozzles
- Hydraulic blade tension
- Automatic chip conveyor
- Blade breakage/stall motion detector shut off switch
- Band door interlocks
- Work light
- One 6.5 foot (2 meter) gravity conveyor
- Tool kit
- Complimentary DoALL Cutting Fluids package
- One DoALL bi-metal saw blade
- Instruction and parts manuals on CDor USB data stick
