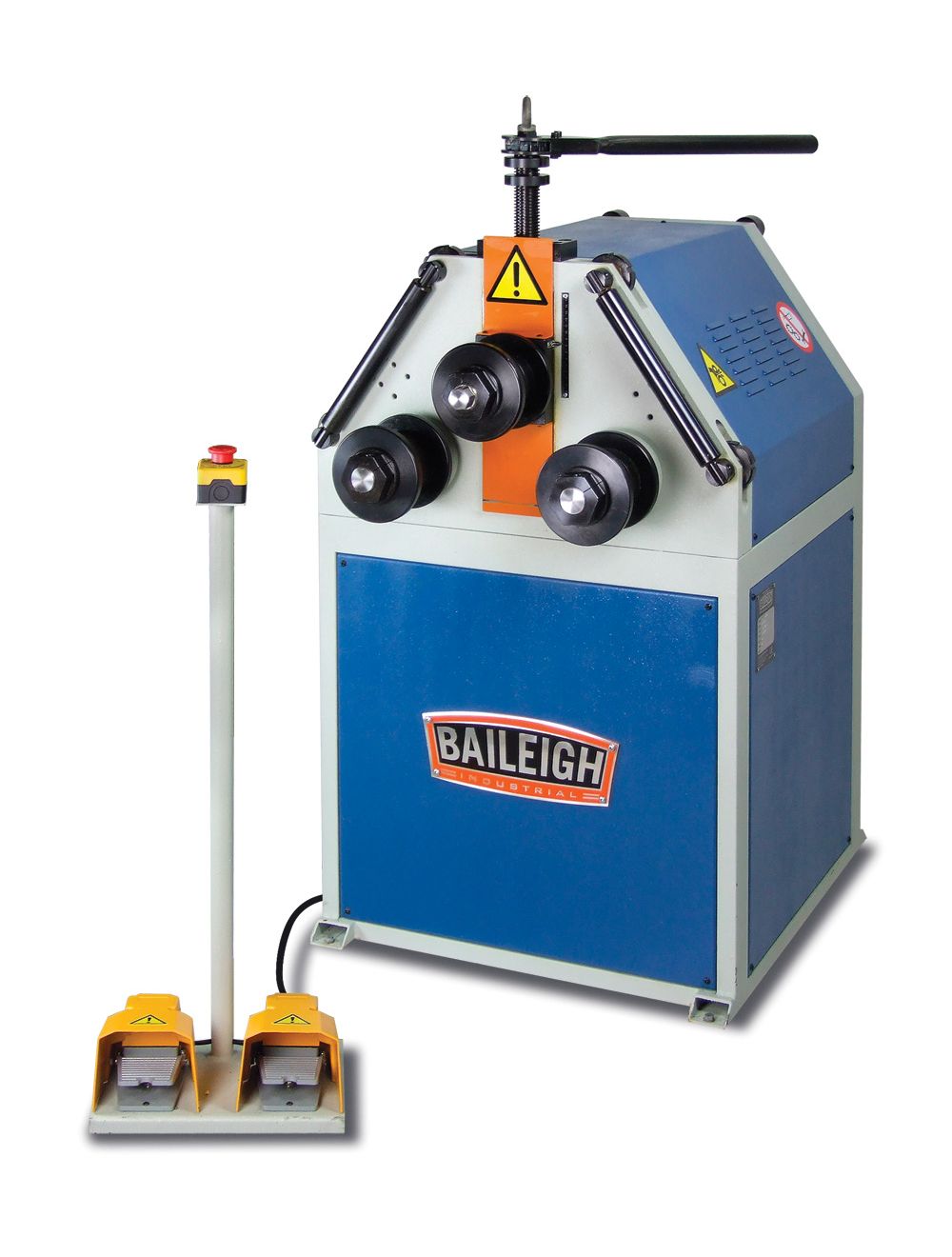

Baileigh RING ROLLER R-M55

When we introduced the R-M55, it redefined quality in roll benders. This tube roller combines efficiency-boosting features with the rugged strength of a steel plate framework.

  • Requires just 220 volts of single-phase power and will work in any fabrication shop or even out on job sites.
was $9,713.07 Special Price $7,999.00
SKU
1006855

DESCRIPTION

When we introduced the R-M55, it redefined quality in roll benders. This tube roller combines efficiency-boosting features with the rugged strength of a steel plate framework.

  • Requires just 220 volts of single-phase power and will work in any fabrication shop or even out on job sites.
  • Maximum capacity of 2.75" round tubing and 2' schedule 40 pipe.
  • Manual top-shaft machine with 2 driven rolls (3 rolls total).
  • Large ratchet offers extra leverage for manual control of top roll position.
  • You can operate the R-M55 in vertical mode, for small rolling projects, or in horizontal mode, for large rolling projects.
  • Variable-speed inverter allows you to finetune the rolling speed for a given material.
  • Easy-to-read scale indicates top roll position, helping you easily make repeatable bends for production runs.
  • Includes segment rolls and lateral roll guides to keep material from twisting.
  • Foot pedal controls let you conveniently stop and start the bender.
  • Accepts optional rolls (available from Baileigh) to bend a variety of profiles like tubing, pipe, angle iron and much more.
  • Baileigh backs this tubing roller with a 1-year warranty as well as lifetime technical support by phone.

Why choose the R-M55 over similar machines

  • Heavy steel construction gives the R-M55 a sturdiness, reliability, and long-wearing accuracy that few competing manual benders can match.
  • Inverter protects against overload, prolonging the machine' s lifetime of use.
  • You can rely on our team of reps' and their years of direct experience with Baileigh machines' for remote support for as long as you' re using the R-M55. Project advice is always just a phone call away.

SPECIFICATIONS

Item Number R-M55
Country of Manufacture Portugal
Roll Adjustment Manual
Pipe Capacity Size: 2" (sch. 40) / Min. Dia.: 40"
Round Tube Capacity Size: 2.75" (.083") / Min. Dia.: 60"
Square Tube Capacity Size: 2" (.083") / Min. Dia.: 48"
Solid Round Capacity Size: 1.375" / Min. Dia.: 20"
Flat Bar Easy Way Size: 4" (.5") / Min. Dia.: 20"
Flat Bar Hard Way Size: 2.25" (.375") / Min. Dia.: 20"
Angle Iron Capacity Size: 2" (.250") / Min. Dia.: 28"
Shaft Diameter 1.968"
Shaft Center Distance 13.12"
Lower Roll Dia. 5.827"
Pinch Single
Power 220V Single Phase
Shipping Weight 650lbs
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength ' Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Shipping Dimensions (Inches) 60x44x77

* specifications subject to change without notice.
