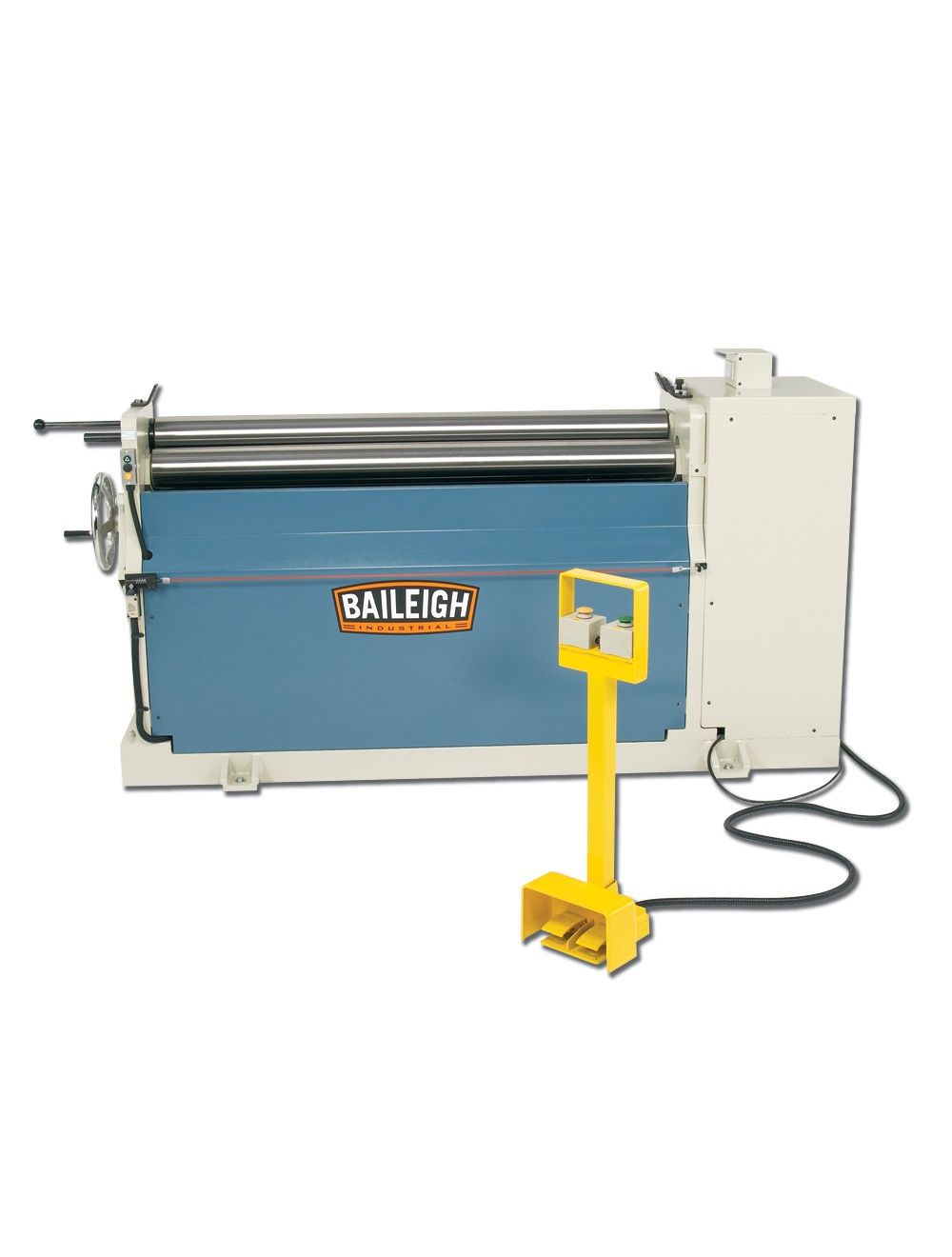

Baileigh PLATE ROLLER PR-510

The PR-510 is a great value hydraulic plate roll that would be at home in any shop. Its rigid steel frame prevents deflection, so you can accurately bend at maximum capacity for years.

  • 5' working width.
was $30,113.07 Special Price $24,799.00
SKU
1006533

DESCRIPTION

The PR-510 is a great value hydraulic plate roll that would be at home in any shop. Its rigid steel frame prevents deflection, so you can accurately bend at maximum capacity for years.

  • 5' working width.
  • 10 gauge mild steel capacity across its full width.
  • 2 hp motor runs on 220-volt 3-phase power.
  • Single pinch roll former has 3 driven rolls to increase the efficiency of the machine.
  • 4-' OD rolls are hardened, then polished to ensure no marring to the material.
  • Hydraulically controlled back roll can move up and down and tilt left and right for coning.
  • Digital readout displays the back roll position for repeatable bends.
  • Fully welded plate steel frame eliminates any deflection of the rolls even at maximum thickness capacity.
  • Covered by a 1-year parts warranty.
  • Includes lifetime technical support by phone from a team of reps with hands-on experience.

SPECIFICATIONS

Item Number PR-510
Country of Manufacture Taiwan
Forming Width 60"
Roll Speed 5.85 rpm.
Upper Roll Dia. 4.75"
Roll Adjustment Back Hydraulic
Minimum Forming Dia 7.125"
Motor 2 hp
Capacity (Mild Steel) 10 ga. (.135")
Power 220V / 3-phase
Shipping Weight 2950lbs
Shipping Dimensions (Inches) 106x39x59

* specifications subject to change without notice.
