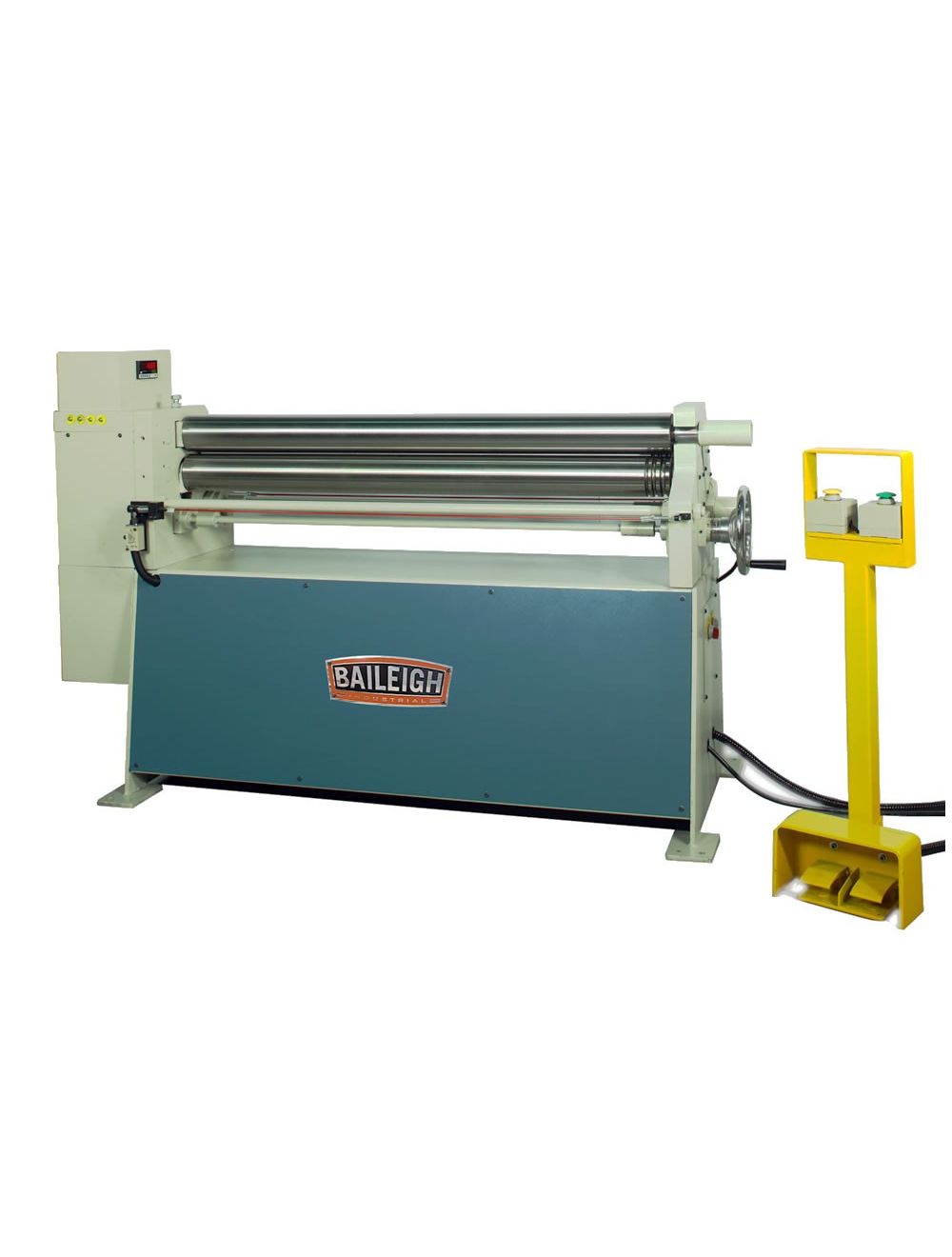

Baileigh PLATE ROLL PR-413

Built with a 2 hp motor, hydraulically controlled back roll, and a steel frame, this electrical plate roller lets you tackle thicker gauges without getting bogged down. It comes with a DRO.

    • 4' forming width.
    • Bends
was $20,350.21 Special Price $16,759.00
SKU
1006521

DESCRIPTION

Built with a 2 hp motor, hydraulically controlled back roll, and a steel frame, this electrical plate roller lets you tackle thicker gauges without getting bogged down. It comes with a DRO.

    • 4' forming width.
    • Bends
13 gauge
    mild steel over its whole width.
  • 2 hp motor runs on 220-volt single-phase power, so you can use it almost anywhere.
  • Convenient control pedestal has forward and reverse foot pedals and buttons to control the up and down movement of the back roll.
  • Industrial-grade hydraulic system allows the back roll to move up and down and tilt left and right for coning.
  • Digital readout gives the position of the back roll for easy repeatability.
  • Full steel frame, machined to exacting tolerances, maintains accuracy for many years of use at full capacity.
  • Includes 3 wire grooves for forming rings.
  • Emergency stop cable on the front and back of the machine for safety.
  • Covered by a 1-year parts warranty.
  • Comes with lifetime technical support by phone from our team of experienced metalworkers.

SPECIFICATIONS

Item Number PR-413
Country of Manufacture Taiwan
Forming Width 48"
Roll Speed 6 rpm.
Upper Roll Dia. 3.50"
Roll Adjustment Back Hydraulic
Minimum Forming Dia 5.25"
Motor 2 hp
Wire Grooves Yes
Capacity (Mild Steel) 13 ga. (.090")
Power 220V / 1-phase
Shipping Weight 1510lbs
Shipping Dimensions (Inches) 84x33x54

* specifications subject to change without notice.
