Baileigh PLATE BENDING MACHINE PR-10500-4CNC

This plate roller has the same rigid steel structure as its sister models (PR-10500-4 and PR-10500-4NC) but incorporates a CNC touchscreen controller specially designed for Baileigh.

  • Made in Italy and refined through years of research.
  • ' mild steel capacity.
  • 120' (10-foot) length.
  • Large 10 hp motor runs on 480-volt 3-phase power.
was $210,907.20 Special Price $200,864.00
SKU
1008520

DESCRIPTION

This plate roller has the same rigid steel structure as its sister models (PR-10500-4 and PR-10500-4NC) but incorporates a CNC touchscreen controller specially designed for Baileigh.

  • Made in Italy and refined through years of research.
  • ' mild steel capacity.
  • 120' (10-foot) length.
  • Large 10 hp motor runs on 480-volt 3-phase power.

FORMING ROLLS AND HYDRAULICS

  • All 4 forming rolls are hardened and polished.
  • 2 central driven rolls.
  • Dual hydraulic motors and high-efficiency planetary gearboxes directly rotate the 2 driven rolls.
  • 4-roll design pinches the plate between the 2 driven rolls, pre-bends the leading edge, and rolls the part along with the trailing edge in one pass.
  • Front rolls have independent hydraulic lifters that go in the orbital pattern.
  • Stabilizer torsion bar system keeps front rolls parallel to the top roll.
  • Plate is pinched at all times during the rolling cycle, so there' s no chance to lose the position.
  • You can adjust the angle of the rolls and bend cones.
  • Hydraulic system for material removal: yoke on top roll drops, allowing the roll to lift.

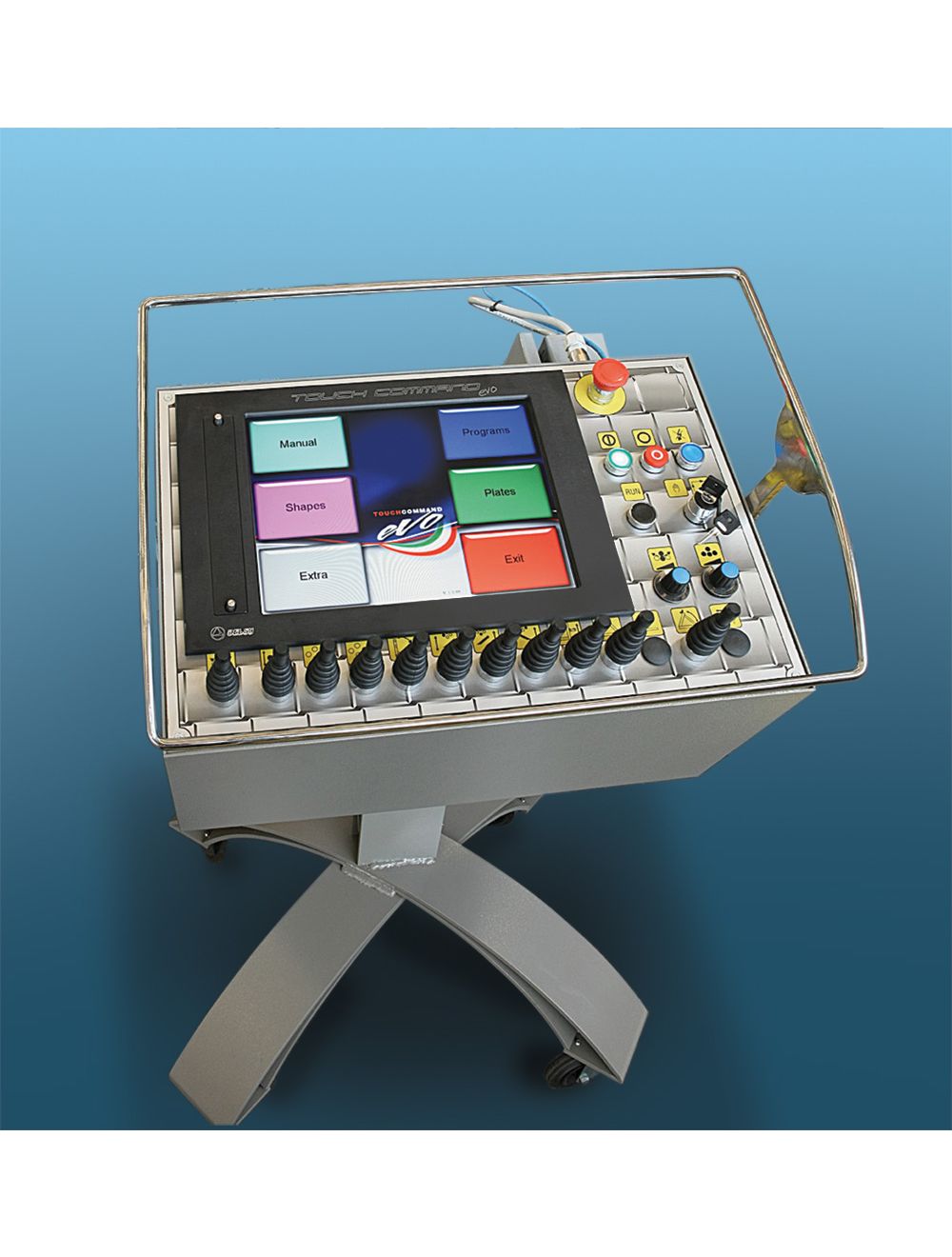

CNC PROGRAMMER AND CONTROL PANEL

  • Simply draw or load your desired shape, choose the type of material, and the computer automatically generates the program to bend your desired shape.
  • 15' touchscreen display (TFT new generation LCD LED) conforms to Rohs regulations.
  • CAD system allows you to draw shapes to be bent with the NC.
  • You can also load shapes in DXF format from USB pen-drive.
  • Configure your desktop or laptops with CAD to create shapes, then export them to the CNC.
  • Front panel with more input/output ports: 2 USB, 1 Serial, 1 Ethernet, 2 PS2.
  • Amount of steps per program is virtually unlimited.
  • Pre-existing system of manual programming ' auto-teaching' ensures total flexibility of control.
  • Linux RTI operating system.
  • New generation motherboard conforms to Rohs regulations.
  • Integrated graphical card with accelerated 3D hardware.
  • Intel Low power 2.0 GHz Dual Core CPU with lower operating temperature (optimal for industrial environments).
  • SO-DIMM DDR Memory 1 GB Industrial range.
  • Direct connection of the LVDS display leaves VGA port open for connecting an external monitor.
  • Tripled calculation capacity, compared to previous versions.

WARRANTY AND AFTER-CARE

  • Covered by a 1-year parts warranty.
  • Comes with lifetime technical support by phone from our in-house team of knowledgeable reps.
  • Free machine training and demos are available at our Wisconsin headquarters. Optional training at your location is available for a fee.

Also available in a non-NC version, the PR-10500-4, and a numerically controlled version PR-10500-4NC.

SPECIFICATIONS

Item NumberPR-10500-4CNC
Rolling Cap. (Mild Steel).55"
Forming Width122"
Number of Rolls4
Driven Rolls2
Top Roll Dia.13.7"
Bottom Roll Dia.13"
Slide Roll Dia.9.8"
Roll AdjustmentHydraulic
ProgrammingTouch Screen CNC System
Motor15 hp.
Power480V / 3-phase
Shipping Weight28600lbs
Shipping Dimensions (Inches)206" x 68" x 43"

* specifications subject to change without notice.
