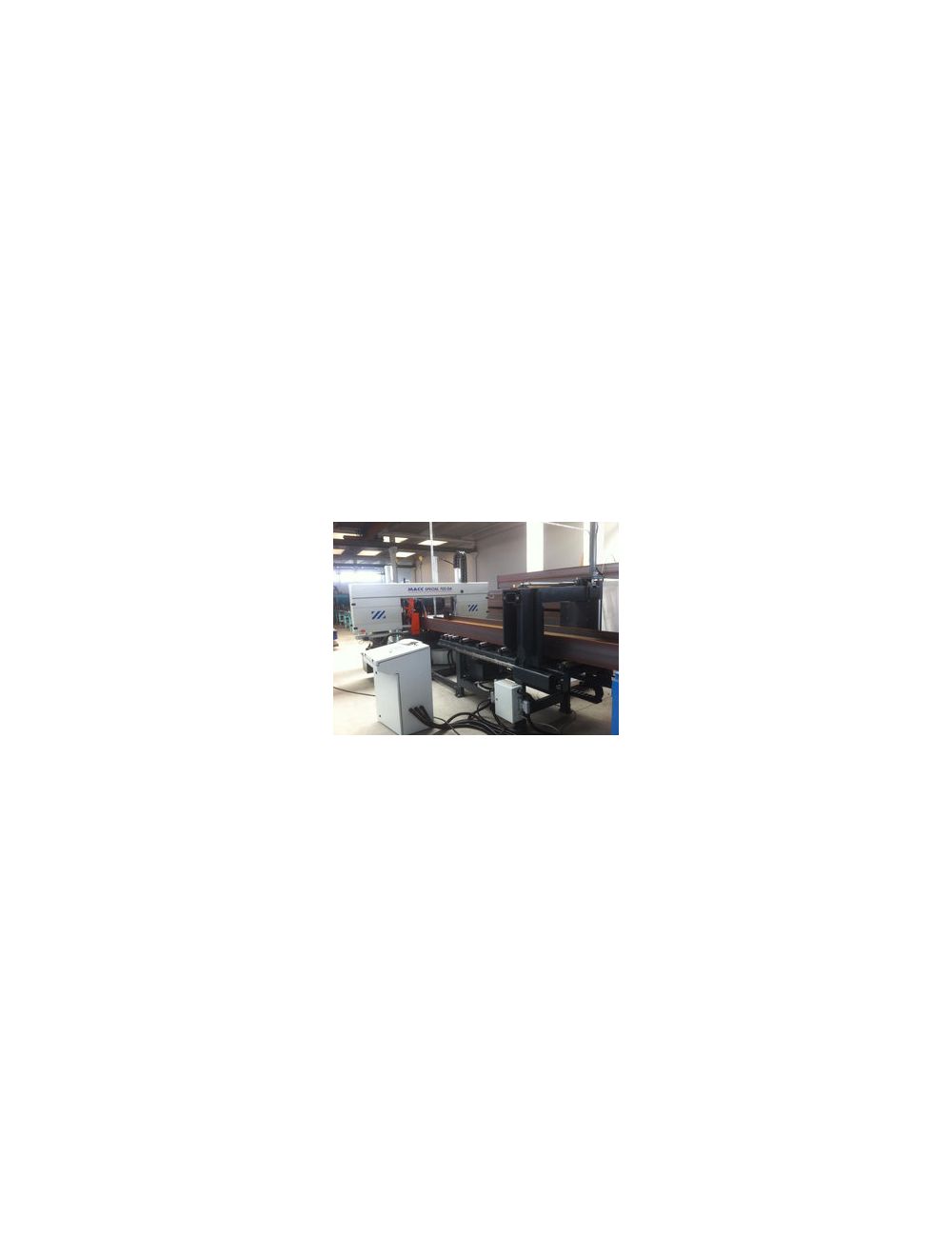

The essential basic characteristics of our Quantum S-702-GA Semi-Automatic Band Saw with Programmable Automatic-Head Mitering/Rotation (such as the rigidity of the blade support, the flywheel dimensioning, band saw blade guides, and band stretching) have been extensively studied thoroughly in order to avoid yielding of the band - ultimately increasing the S-702-GA¢â‚¬â„¢s durability above all other band saws of this size in the marketplace, and assists to improve the linearity of the cuts, as well as the cutting time.
The S 700 GA Semi-Auto Quantum Band Saw is equipped with the following features: 1. Variable Speed Inverter - 2. Vertical Vice - 3. Chip Extractor - 4. Programmable Head Rotation/Mitering
Cycle start is obtained by pressing the relevant start button.
The machine performs the following operations during the cutting cycle:
1. Vice closing and activation of band motor.
2. Cutting bow down stroke.
3. Return of bow to initial position.
4. Band motor stop.
5. Vice opening.
Round Tube Cutting Capacities:
Round Tube Cutting at 90° (Straight Cut): 21-5/8¢â‚¬Â
Round Tube Cutting at 45° Left: 17-5/8"
Round Tube Cutting at 60° Left: 9-3/4"
Round Tube Cutting at 45° Right: 18-1/2"
Square Tube Cutting Capacities:
Square Tube Cutting at 90° (Straight Cut): 21-5/8"
Square Tube Cutting at 45° Left: 17-5/8"
Square Tube Cutting at 60° Left: 9-3/4"
Square Tube Cutting at 45° Right: 18-1/2"
Rectangular Tube Cutting Capacities:
Rectangular Tube Cutting at 90° (Straight Cut): 21-5/8¢â‚¬Â x 27-1/2"
Rectangular Tube Cutting at 45° Left: 21-5/8¢â‚¬Â x 17-5/8¢â‚¬Â
Rectangular Tube Cutting at 60° Left: 21-5/8¢â‚¬Â x 9-3/4¢â‚¬Â
Rectangular Tube Cutting at 45° Right: 21-5/8" x 18-1/2"
Motor Power: 4 kW
Jaws Height: 11.88¢â‚¬Â (302 mm)
Jaws Length: 27.16¢â‚¬Â (690 mm)
Coolant Tank Capacity: 50 Liters
Cutting Thickness: 1.5 mm (0.059")
Possibility of making ¢â‚¬Å“manual¢â‚¬Â cuts.
Flywheel Dimensions: 20.4¢â‚¬Â (520 mm)
Band Saw Weight: 6,050 lbs. (2,740 kg)
Adjustable Stop for cuts of the same size.
Maximum Vice Opening of 710 mm (27.95¢â‚¬Â)
This saw runs at variable speeds (0-90 Feet per Minute)
Vice with Device for Swift-Locking for Quick-Vice Approach.
Saw is manufactured with trans-pallet for versatile movement.
Pedestal with chip collection tray and removable tank for coolant.
Electrical Options Available: 220 Volt / 3 Phase, 480 Volt / 3 Phase
Blade Size Dimensions: 6380 x 41 x 1.3 mm (251.18¢â‚¬Â x 1.61" x 0.051")
0.06 kW Power-Driven Pump for band cooling and 24V Low-Tension Plant.
Vertical rotation on bolt with adjustable tapered bearings without backlash.
Strong band guides with tight stress-raiser bearings and adjustable widia tips.
Cutting Range: From 60° Left to 90° Straight Cuts up to 45° Right -Angled Cuts
Band stretching is obtained by electro-mechanical blade tensioner with micro switch.
Accident-preventing devices on the flywheel casing, on the control handle, and on the blade.
S-700-GA Semi-Auto Band Saw Overall Dimensions: 115" Height x 145" Length x 64" Width (2920 x 3665 x 1620mm Width)
Italian Made Band Saw - Parts for our Band Saws are stocked in the U.S.A. at our Quantum Machinery headquarters.
High-capacity band control by two-speed motor and special reducer with bronze gear and tempered and ground worm screw with appropriately Dimensioned Flywheels with Accident-Preventing Devices on the Flywheel Casing, on the Control Handle, and on the Blade.
