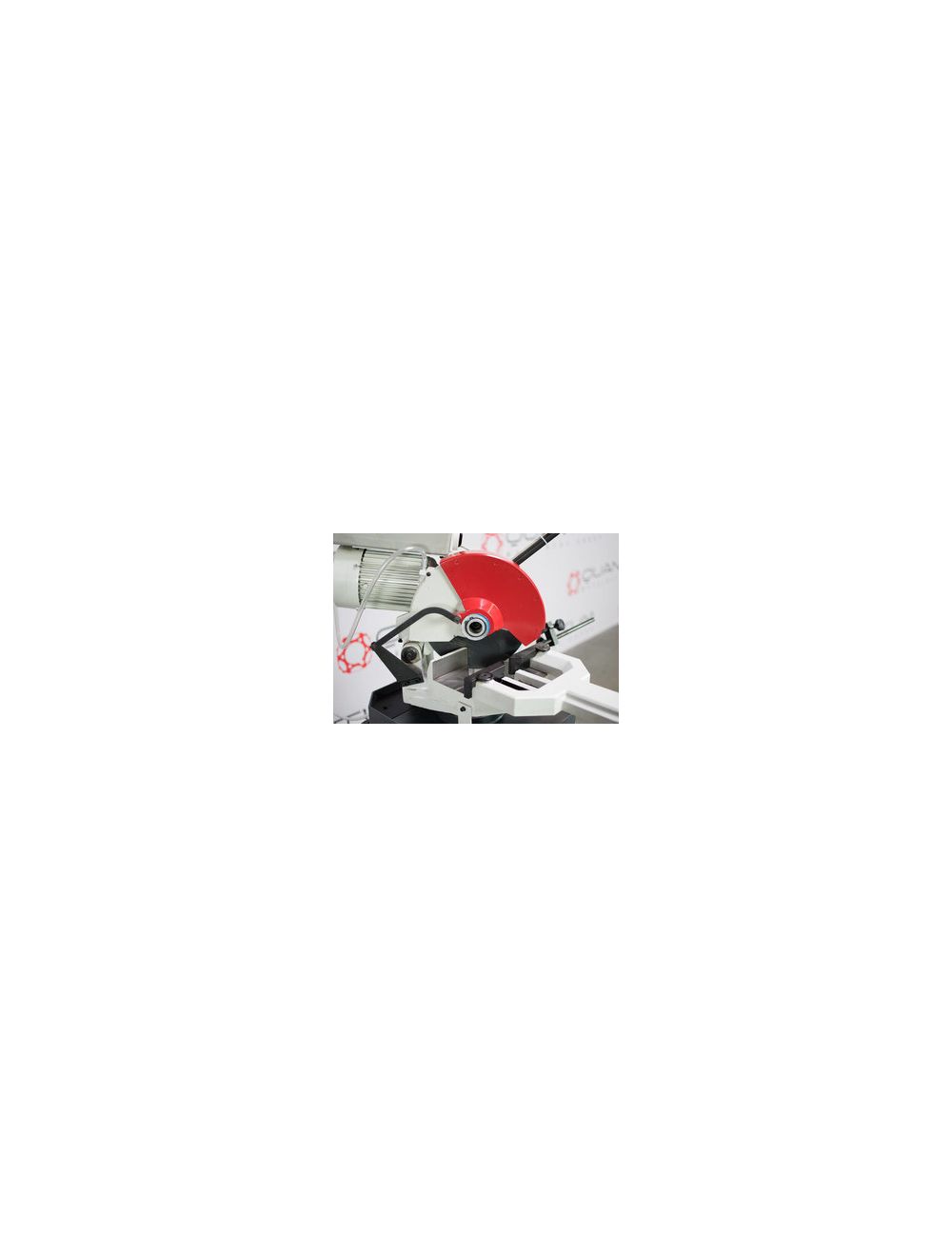

Quantum Machinery 11" Manual, Pivot-Style Cold Saw (3-1/8" Round Tube Capacity)
The Quantum Macc TRS 275 Manual Cold Saw has the capability of moving the head 45 degrees left and 45 degrees right. The reduction unit is in oil bath with a membrane pump for coolant and coolant filter. The TRS 275 is equipped with a double-vice and counter-vice that comes complete with an anti-burr device and bar stop. Service tools come with the machine, as well as the machine's manual and steel pedestal.
-
2 Speeds: 40 - 80 R.P.M.
-
Weight: 217 lbs. (98 kg.)
-
Maximum Vice Opening: 4.1¢â‚¬Â (105mm)
-
Overall Dimensions: 33¢â‚¬Â Width x 36¢â‚¬Â Length x 41¢â‚¬Â Height (830 x 900 x 1025mm)
-
The TRS 275 DV is to be equipped with a 275 x 2 x 32mm Bore HSS Blade. (Cost per Blade: $80)
Options (Options are at an additional cost):
-
(+$100) Alternate Electrical: 220V / 1 PH, instead of 220V / 3 PH
TRS 275 DV COLD SAW CUTTING CAPACITIES:
Round Tube Cutting Capacities:
-
Round Tube Cutting at 90° (Straight Cut): 3-1/8"
-
Round Tube Cutting at 45° Right: 3-1/8"
-
Round Tube Cutting at 45° Left: 3-1/8"
Square Tube Cutting Capacities:
-
Square Tube Cutting at 90° (Straight Cut): 3-1/8"
-
Square Tube Cutting at 45° Right: 2-3/4"
-
Square Tube Cutting at 45° Left: 2-3/4"
Solid Round Cutting Capacities:
-
Solid Round Cutting at 90° (Straight Cut): 1-3/4"
-
Solid Round Cutting at 45° Right: 1-1/2"
-
Solid Round Cutting at 45° Left: 1-1/2"
Rectangular Tube Cutting Capacities:
-
Rectangular Tube Cutting at 90° (Straight Cut): 2-3/4" x 3-7/8"
-
Rectangular Tube Cutting at 45° Right: 2-3/4" x 3-1/8"
-
Rectangular Tube Cutting at 45° Left: 2-3/4" x 3-1/8"
TRS 275 DV COLD SAW SPECIFICATIONS:
¢â‚¬â€ Blade Size Used: 275 x 2 x 32mm Bore HSS Blade
¢â‚¬â€ Cost Per 275mm Blade: $80 Each
¢â‚¬â€ 2 Speeds: 40 & 80 R.P.M.
¢â‚¬â€ Weight: 207 lbs. (94 kg.)
¢â‚¬â€ Maximum Vice Opening: 4.1¢â‚¬Â (105mm)
¢â‚¬â€ Overall Dimensions: 33¢â‚¬Â Width x 36¢â‚¬Â Length x 41¢â‚¬Â Height (830 x 900 x 1025 mm)
