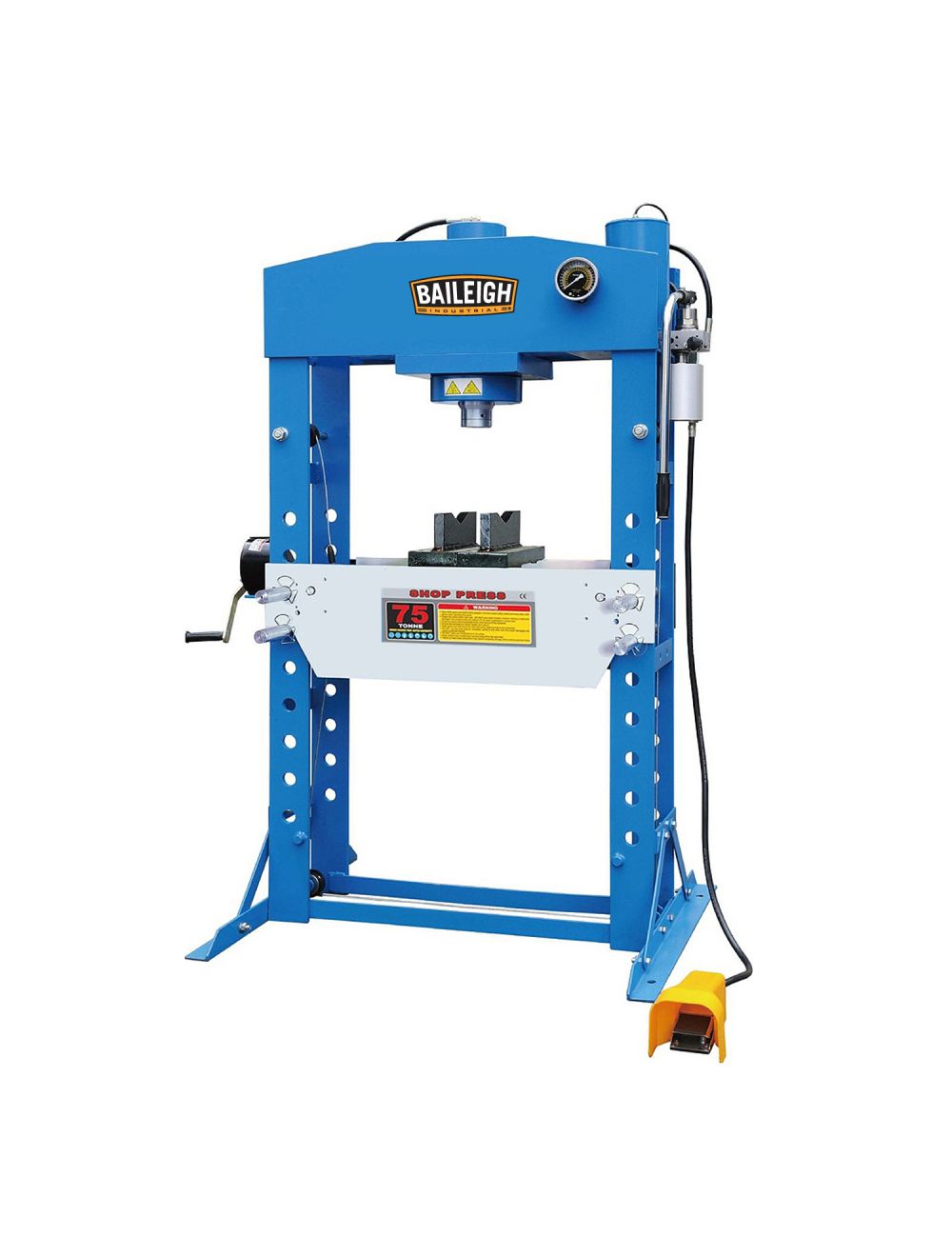

Baileigh PNEUMATIC SHOP PRESS HSP-75A
PNEUMATIC SHOP PRESS HSP-75A
This H-frame press maintains accuracy with fully-welded steel main frame. Go ahead and use its full 75 tons of force. This air-powered shop press won' t flex or buckle on you!
$4,195.00
Availability:
In stock
SKU
B1004859
This H-frame press maintains accuracy with fully-welded steel main frame. Go ahead and use its full 75 tons of force. This air-powered shop press won' t flex or buckle on you!
- 31.5' working width.
- Large 9' diameter cylinder with a 9.8' stroke.
- Requires a 90 to 115 psi compressor.
- Industrial-grade hydraulics help the machine last and run smoothly for many years of productivity.
- Integrated foot pedal makes this H-frame press easy to control.
- If you' d like more delicate control, you can choose the manual hand pump located on the side of the HSP-75A.
- Winch and pulley system will save time when lifting and lowering the working table. (It also saves strain on your back muscles.)
- Comes standard with a V-block set.
- You can count on Baileigh for a 1-year parts warranty as well as lifetime technical support by phone.
SPECIFICATIONS
| Item Number | HSP-75A |
|---|---|
| Piston Head Diameter | 3" |
| Movable Cylinder | Yes |
| Working Width | 31.5" |
| Maximum Capacity | 75 tons |
| Cylinder Stroke | 9.8" |
| Cylinder Diameter | 9" |
| Distance From Table To Ram | Min. 6.69" - Max. 34.80" |
| Power | Pneumatic / Manual |
| Shipping Weight | 1110lbs |
| Shipping Dimensions (Inches) | 83x44x16 |
* specifications subject to change without notice.
