Baileigh HYDRAULIC PRESS HSP-66M-HD

Weighing in at just over 1750 pounds, this motorized H-frame press is built to last. Its welded .375' plate steel structure can handle all the hydraulic system' s force without flexing.

• 66 tons of hydraulic force.
• 40.94' working width.
• 9.85' cylinder stroke.
• Runs on 220 volt 3-phase power.
• Robust 5.3 hp motor runs on has 2 working speeds: rapid descent and slow approach.

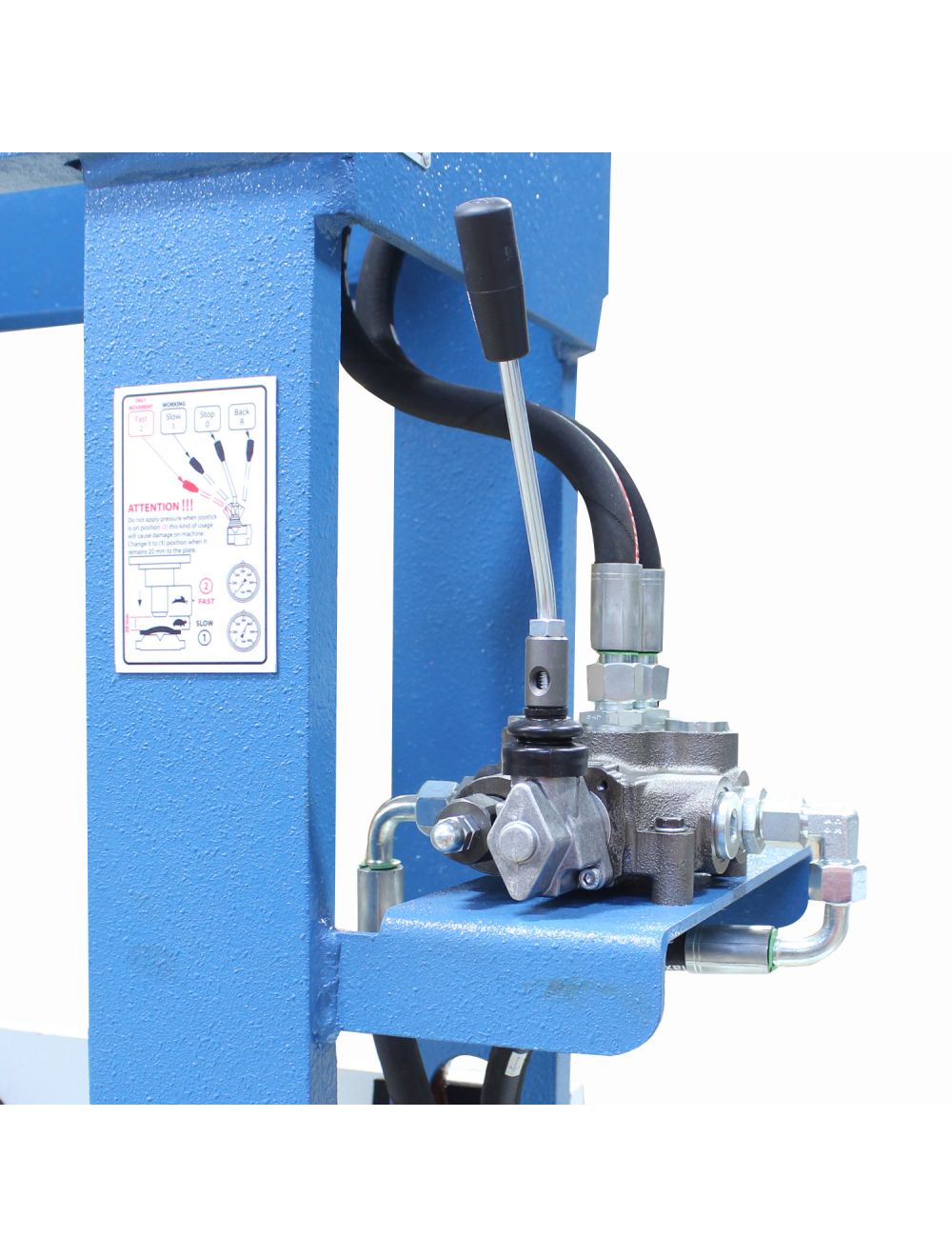

• Hand pump gives you the option for even finer control.
• Cylinder moves left or right within the framework to deliver pressure on off-center parts.
• 7.08' -diameter cylinder automatically returns to the toponce the job is done.
• 53.34' table fabricated to exacting tolerances.
• Table features 2 support pins that are 2' in diameter, letting you lock the table in at the correct working height.
• Lifting chainshelp with the placement of the table and save you muscle strain.
• Includes pressure regulator and ram cap.
• Baileigh covers this hydraulic shop press with a 1-year parts warranty as well as lifetime technical support by phone.
