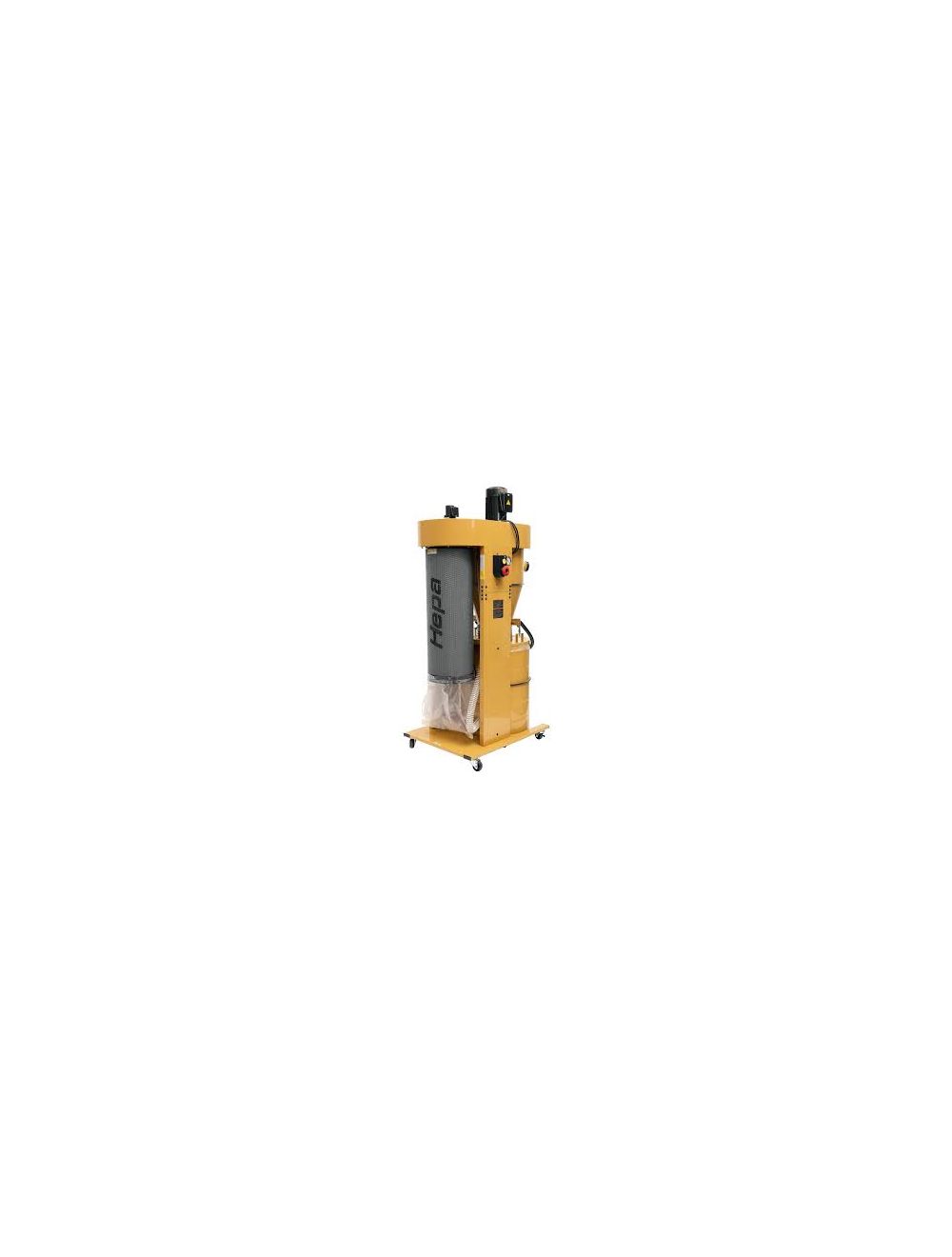

Powermatic PM2200 CYCLONIC DUST COLLECTOR - WITH HEPA FILTER KIT
Introducing the Powermatic PM2200 Cyclonic Dust Collector with HEPA filtration. The PM2200 pairs the benefits of cyclonic dust collection with the time honored legacy of the Powermatic standard. The all-metal construction provides a stable base for quiet operation and minimal vibration. The Powermatic Cyclone is only cyclonic dust collector on the market with an Auto-Cleaning HEPA filter. The included HEPA filter traps 99.97% of all particles at 0.3 micron. With other market leading features such as a one-handed drum release lever, vacuum pressure gauge, and frameless dust bag vacuum retention, the Powermatic PM2200 Cyclone Dust Collector is an innovative addition to the Powermatic family.
was
$4,791.42
Special Price
$3,899.99
SKU
1792200HK
FEATURES
- Proprietary auto-cleaning HEPA Filter technology for better filtration and longer filter life
- One-handed drum release allows for simple removal of the drum for bag changes
- Vacuum pressure gauge for greater user feedback
- HEPA Filter collects 99.97% of all particles passing through as small as 0.3 Micron
- Multiple hose mounting options: three 4" dust ports or one 8" dust port
- Integrated vacuum lines in the drum retain the bag without the need for a separate bag frame
- Powerful 3 HP motor moves 1,543 Cubic Feet of air per Minute
????
SPECIFICATIONS
| Style (Type) | Cyclonic |
| Air Flow @ 8" (CFM) | 1543 |
| Number of Air Inlets | 1(8") or 3(4") |
| Efficiency (Micron) | 0.3 |
| Static Pressure (WC) | 14.3 |
| Sound Rating (DB) | 78 |
| Collection Bag Capacity (Cu. Ft.) | 55 |
| Collection Bag Length (In.) | 31-3/8 |
| Impeller Diameter (In.) | 15-7/8 |
| Impeller Material | Steel |
| 1-Hose Connection Diameter (In.) | 8 |
| 3-Hoses Connection Diameter (In.) | 4 |
| Motor Power (HP) | 3 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Current (Amps) | 16 |
| Recommended Circuit Size (Amps.) | 30 |
| Shipping Calculation: | All Shipping Costs are calculated after order is placed |
|---|
