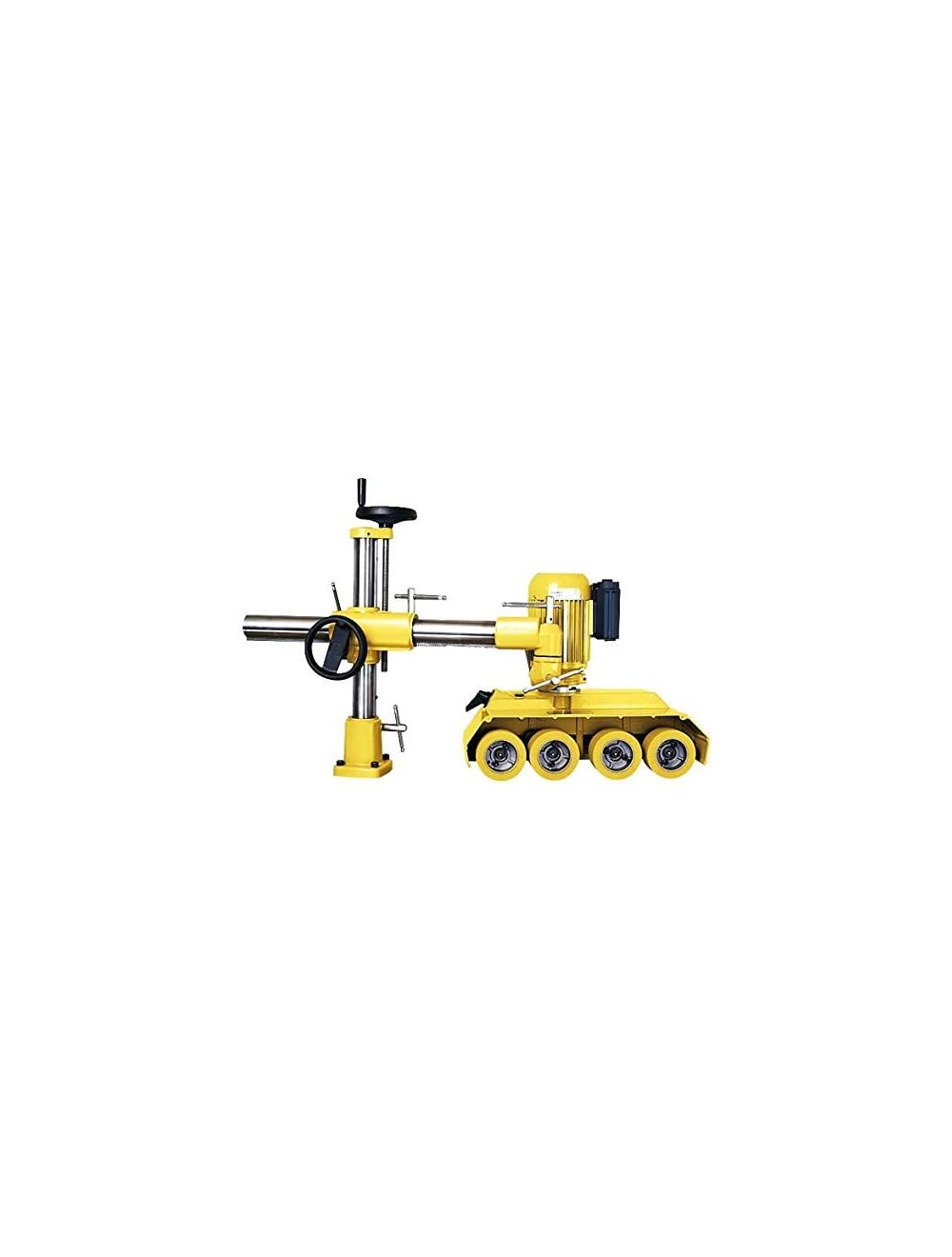

Powermatic PF-41 FEEDER, 1HP 1PH 115V, 4 SPEED
These rugged, heavy-duty stock feeders feature continuous-duty motors that transfer power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support columns feature moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of bodies, bases and universal joints provide stability with vibration-free feeding.
ÂÂÂ
$1,299.99
Availability:
In stock
SKU
1790812K
FEATURES
- Continuous duty motors transfer power from the gear box to the feed roller
- Solid cast iron construction of body pieces and base
- Moveable universal joints and locking mechanisms lock the feeder in horizontal, vertical, or angle feed positions
- Universal joints provide stability for vibration free feeding
- Roller chain and sproket design provide positive feeding for all types of materials
- Smart roller system allows for tire to be replaces with out replacing the assembly
- Support column is fully adjustable for horizontal, vertical or angled feeder position
- Rollers can be changed out easily and quickly
SPECIFICATIONS
| Number of Rollers | 4 |
| Distance Between Rollers - Center to Center (In.) | 5.23 - 5.93 - 5.00 |
| Number of Speeds | 4 Speeds |
| Range of Speeds | 13, 26, 33, 66 |
| Maximum Height of Rollers Parallel to Tabletop (In.) | 8-1/2 |
| Rotation | Forward/Reverse |
| Swing (Deg.) | 360 |
| Movement - Horizontal (In.) | 18-1/16 |
| Movement - Vertical (In.) | 9-3/4 |
| Column Diameter (In.) | 2-1/4 |
| Motor Power (HP) | 1 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 115 only |
| Prewired Voltage (V.) | 115 |
| Shipping Calculation: | All Shipping Costs are calculated after order is placed |
|---|
