Powermatic PF3-JR FEEDER, 1/4HP 1PH 115V

Powermatic PF3-JR FEEDER, 1/4HP 1PH 115V

Powermatic PF-33 FEEDER, 1HP 3PH 230V, 4 SPEED

Powermatic PF-33 FEEDER, 1HP 3PH 230V, 4 SPEED

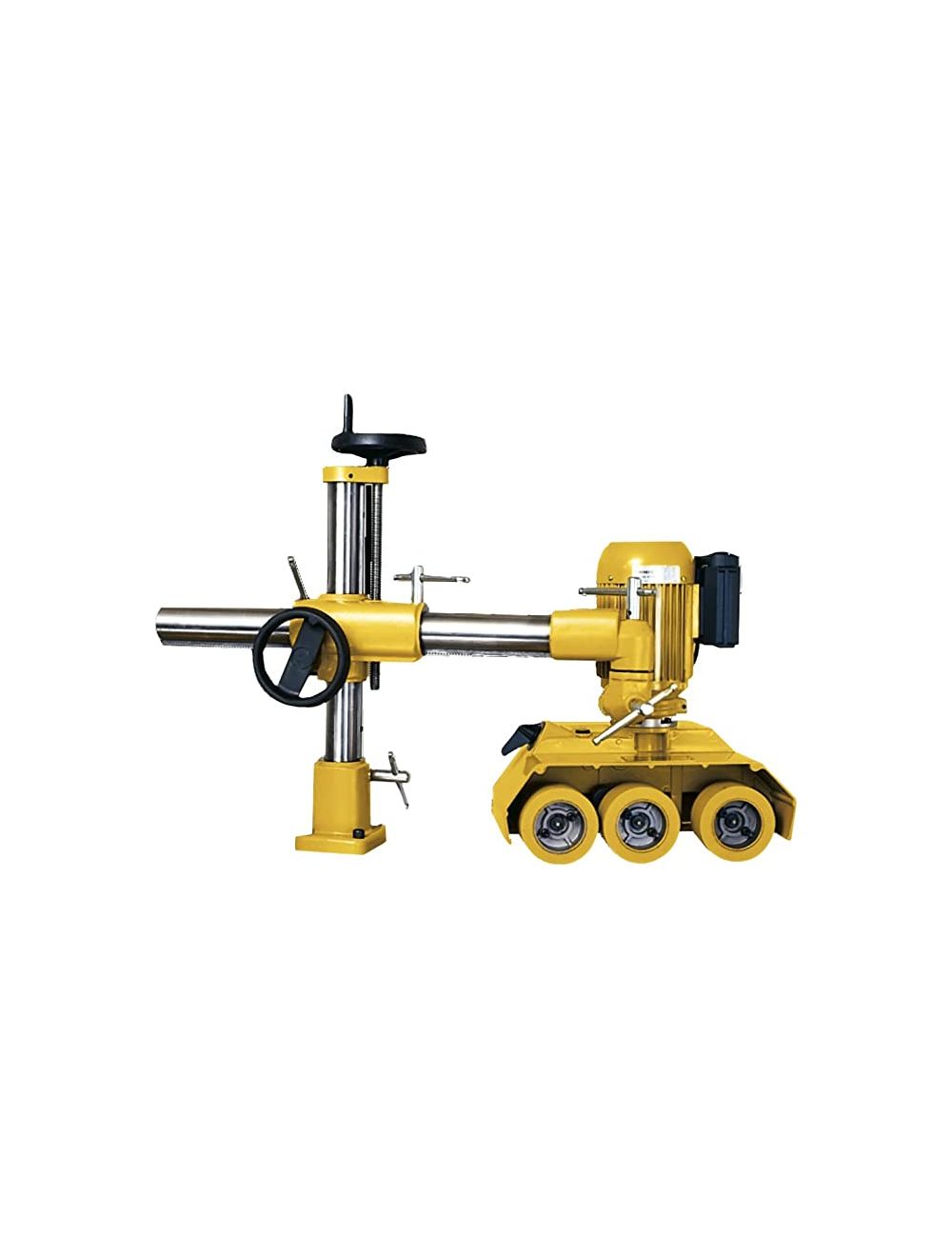

Powermatic PF-31 FEEDER, 1HP 1PH 115V, 4 SPEED

Be the first to review this product
These rugged, heavy-duty stock feeders feature continuous-duty motors that transfer power from the gear box to the feed roller through the roller chain and sprockets, providing superior positive feeding for all types of materials. The fully adjustable support columns feature moveable universal joints and heavy locking mechanisms that lock the feeder in horizontal, vertical, or angle feed positions. Solid cast iron construction of bodies, bases and universal joints provide stability with vibration-free feeding.
’???????????’??????????ƒ?????????????????????????
was $1,941.13 Special Price $1,579.99
SKU
1790807K
Add to Wish List Add to Compare

FEATURES

  • Continuous duty motors transfer power from the gear box to the feed roller
  • Solid cast iron construction of body pieces and base
  • Moveable universal joints and locking mechanisms lock the feeder in horizontal, vertical, or angle feed positions
  • Universal joints provide stability for vibration free feeding
  • Roller chain and sproket design provide positive feeding for all types of materials
  • Smart roller system allows for tire to be replaces with out replacing the assembly
  • Support column is fully adjustable for horizontal, vertical or angled feeder position
  • Rollers can be changed out easily and quickly

SPECIFICATIONS

’???????????’??????????ƒ?????????????????????????
Number of Rollers 3
Distance Between Rollers - Center to Center (In.) 5.07 - 5.90
Number of Speeds 4 Speeds
Range of Speeds 13, 26, 33, 66
Maximum Height of Rollers Parallel to Tabletop (In.) 8-1/2
Rotation Forward/Reverse
Swing (Deg.) 360
Movement - Horizontal (In.) 18-1/16
Movement - Vertical (In.) 9-3/4
Column Diameter (In.) 2-1/4
Motor Power (HP) 1
Motor Phase 1
Motor Voltage (V.) 115
Prewired Voltage (V.) 115
