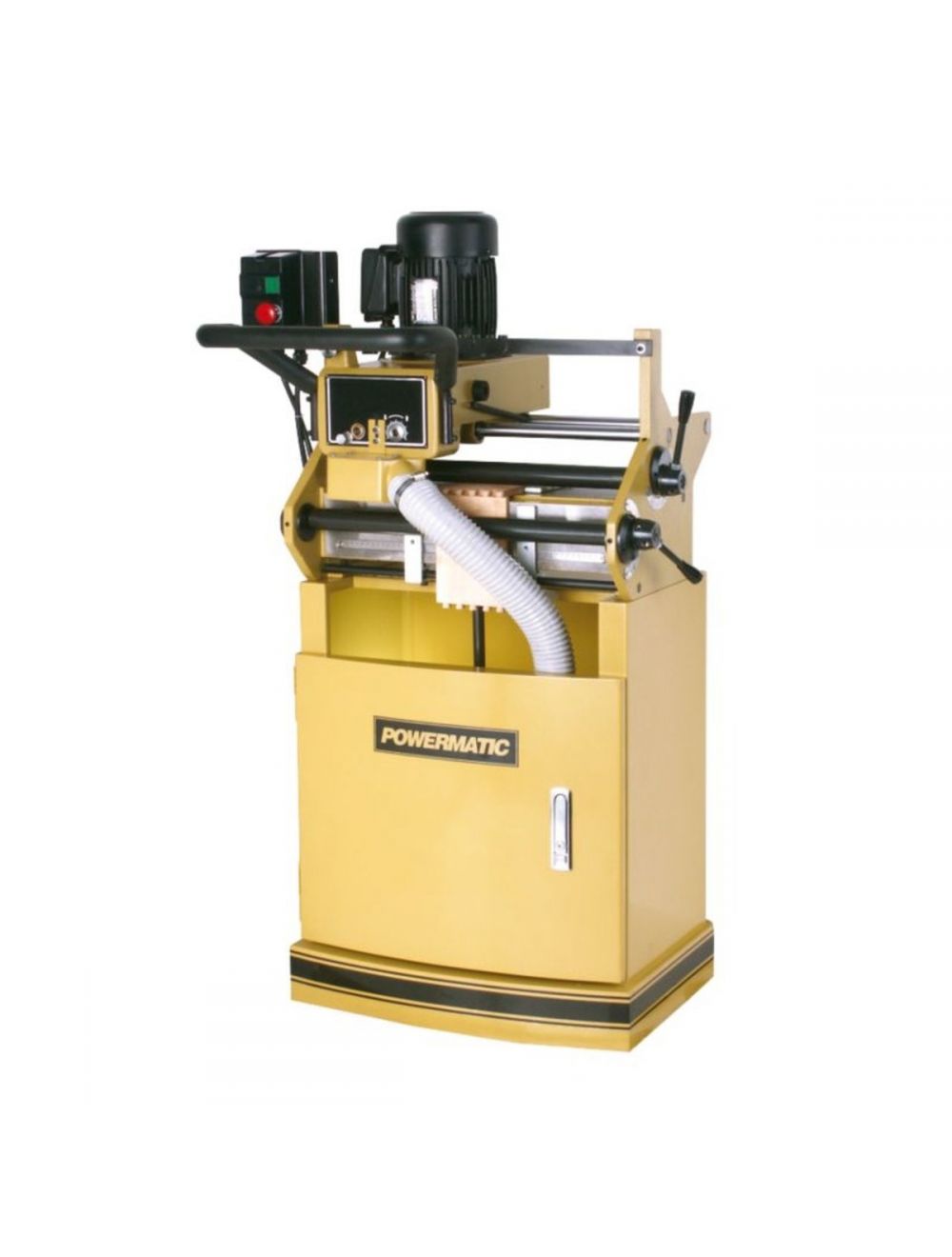

POWERMATIC DT45 DOVETAILER, 1HP 1PH 115/230V
????The POWERMATIC?? DT45 manual dovetail machine is used to cut dovetails for drawers and various furniture components. The machine is equipped with a router spindle which allows cutting dovetails of adjustable height. The DT45 can machine four types of dovetails with different pitches. Locking and unlocking of pieces takes place manually by an eccentric clamp.
????
was
$7,248.56
Special Price
$5,899.99
SKU
1791304
FEATURES
- Four dovetail centerlines at 1", 1-1/2", 2" and 2-1/2" create a custom appearance
- Eccentric spindle collet for resharpened cutters
- Manual clamping will keep boards firm
- The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
- Visual stylus and template aid in guiding the carriage
- Spring loaded carriage makes for smooth, effortless dovetail cutting
- Material stops provide convenient positioning of the workpiece
- Cast iron and steel construction for added stability and durability
- Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
- Extra large soft grip handle provides positive control and comfort
????
SPECIFICATIONS
| Style (Type) | Manual |
| Number of Dovetail Center Lines | 4 |
| Minimum Work Piece Size (L x W)(In.) | 7-7/8 x 2-3/8 |
| Maximum Work Piece Size (In.) | 31 x 11 |
| Minimum Dovetail Height (In.) | 3/16 |
| Maximum Dovetail Height (In.) | 3/4 |
| Minimum Front Thickness (In.) | 9/32 |
| Maximum Front Thickness (In.) | 1-3/16 |
| Minimum Side Thickness (In.) | 9/32 |
| Maximum Side Thickness (In.) | 1-3/16 |
| Center to Center Dovetail Spacing (In.) | 1, 1-1/2, 2, 2-1/2 |
| Number of Spindles | 1 |
| Spindle Speed (RPM) | 18,500 |
| Table Height From Floor (In.) | 35 |
| Dust Collection Minimum CFM Required (CFM) | 500 |
| Dust Port Outside Diameter (In.) | 2-1/2 |
| Motor Power (HP) | 1 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 115/230 |
| Prewired Voltage (V.) | 115 |
| Shipping Calculation: | All Shipping Costs are calculated after order is placed |
|---|
