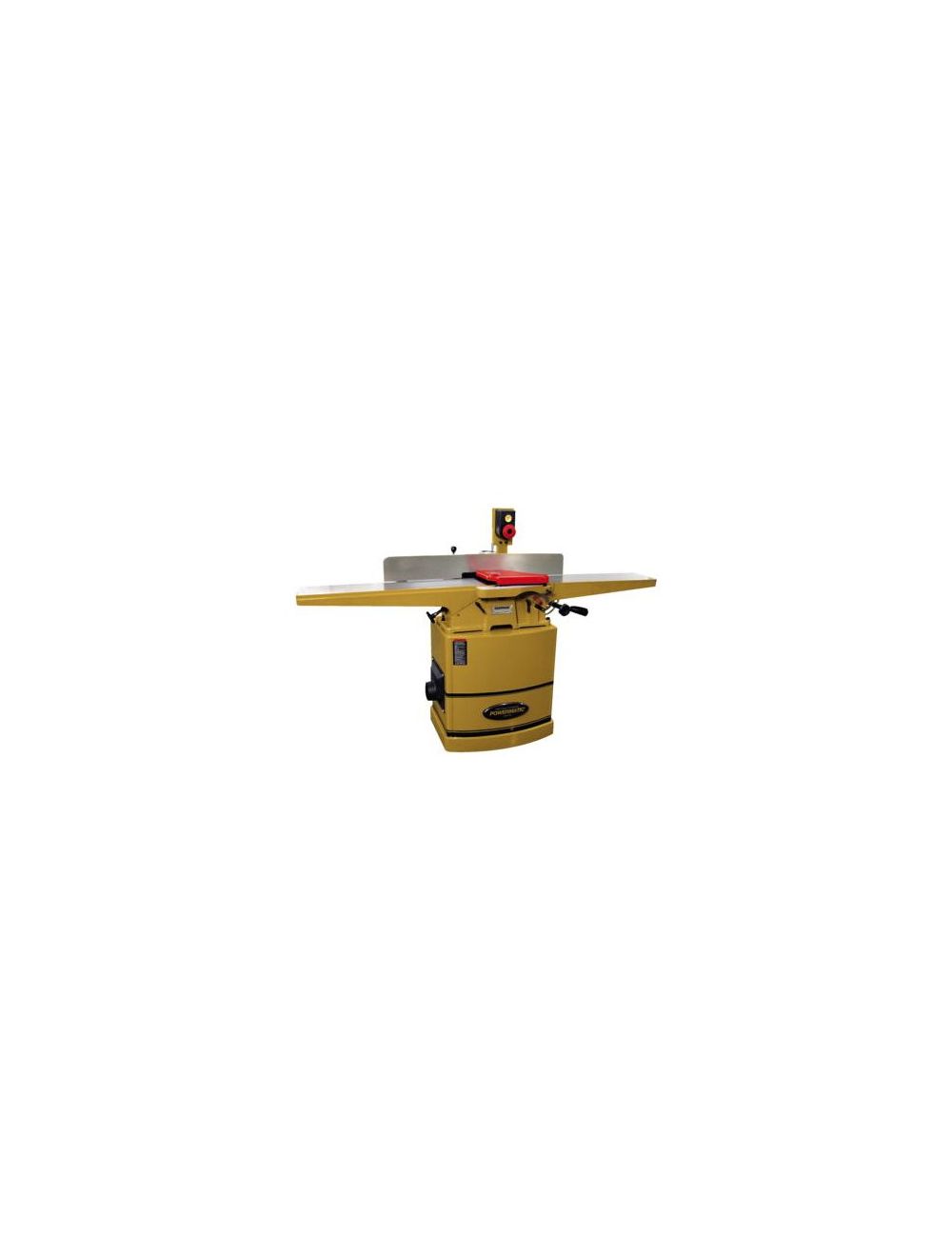

POWERMATIC 60HH 8" JOINTER, 2HP 1PH 230V, HELICAL HEAD
This 8" jointer meets the demand for accuracy while combining unique, user-friendly functions. The infeed table lever can be used to rapidly position table height, then the handle rotated for fine-adjustment of cut depth. Fence tilting is accomplished by a worm gear system, smoothly operated by a simple handwheel. The tables provide 73’?????????????’???????????’???????????’??????????ƒ?????????????????????????????????? long extended support. A non-mar insert in the fence protects the table from scratches during adjustments. The jointer is available with a three high speed steel knife cutterhead, or a helical cutterhead with 54 four-sided knife inserts. The operating switch is high mounted for easy reach, and the push blocks have a magnetic base - store them on any metallic surface for instant access.
was
$4,299.99
Special Price
$3,499.99
SKU
1610086K
FEATURES
- The helical cutterhead with 54 four sided carbide inserts provides smoother, quieter cutting and a superior finish
- Extra long tables are mounted on dovetailed ways for extended workpiece support
- Adjustment lever offers quick infeed table positioning and fine-tuning of cut depth
- High mount switch for operator convenience
- Handwheel operated worm gear system for smooth fence tilting
- Magnetic push blocks can be stored on the machine within constant reach
- Non-mar fence insert protects table surface
’???????????’??????????ƒ?????????????????????????
SPECIFICATIONS
| Type of Cutterhead | Helical |
| Number of Knives |
54 Four-Sided Carbide Helical Inserts
|
| Cuts Per Minute | NA |
| Cutterhead Diameter (In.) | 3 |
| Cutterhead Speed (RPM) | 7,000 |
| Cutting Capacity (W x D) (In.) | 8 x 1/2 |
| Table Size (L x W) (In.) | 73 x 8-1/2 |
| Table Height from Floor (In.) | 32 |
| Infeed Table Length (In.) | 35-1/4 |
| Outfeed Table Length (In.) | 35-1/2 |
| Rabbeting Capacity (In.) | NA |
| Rabbeting Ledge (In.) | 1/2 |
| Fence Size (L x H) (In.) | 38 x 4-3/4 |
| Fence Tilt (Deg.) |
45 Forward, 45 Backward
|
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Dust Collection Minimum CFM Required (CFM) | 450 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 2 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 230 only |
| Prewired Voltage (V.) | 230 |
| Motor Current (Amps) | 9 |
| Recommended Circuit Size (Amps.) | 20 |
| Shipping Calculation: | All Shipping Costs are calculated after order is placed |
|---|
