Powermatic 209 PLANER, 5HP 1PH 230V

Powermatic 209 PLANER, 5HP 1PH 230V

,,

Powermatic 209HH, 20" PLANER, 5HP 1PH 230V

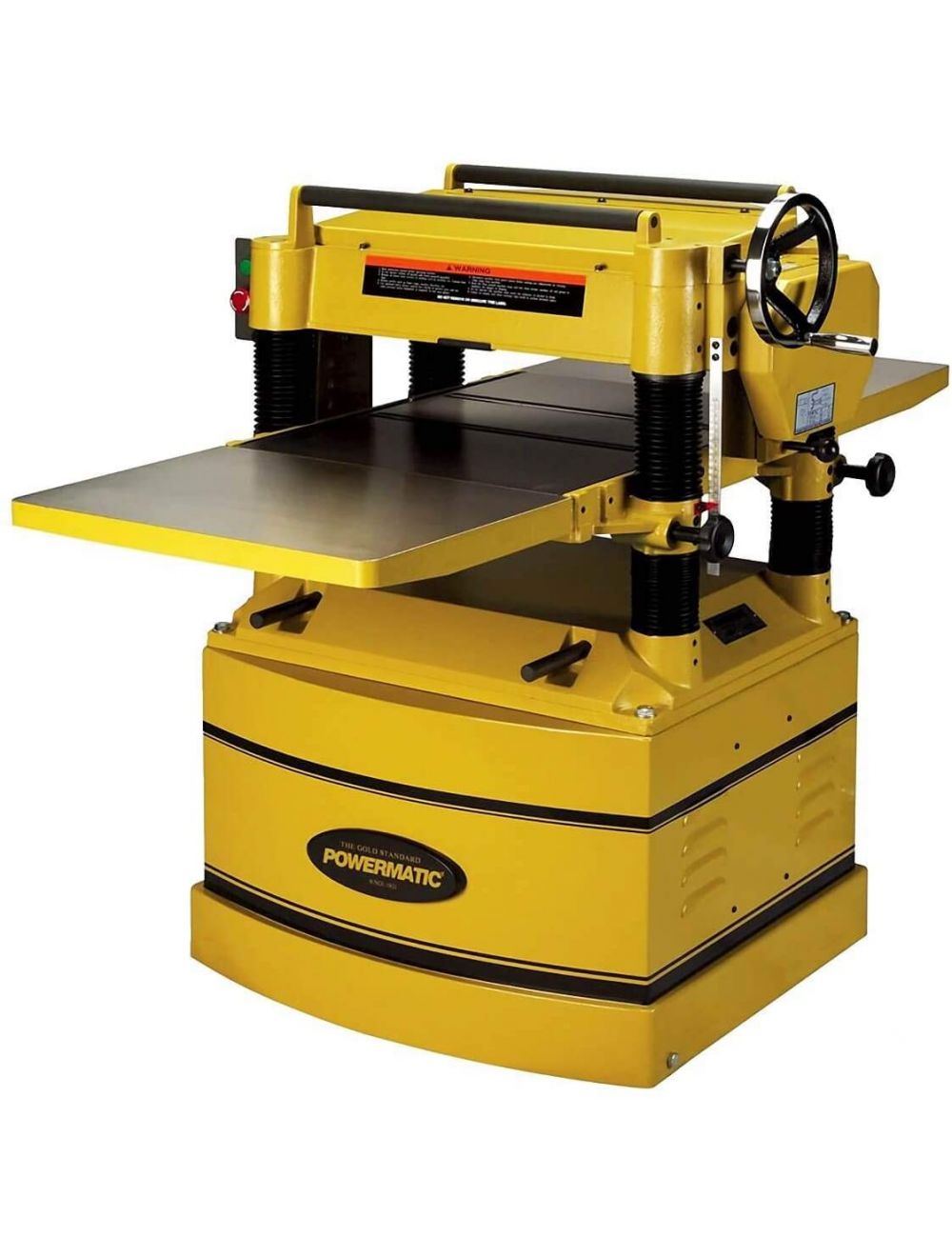

Powermatic 209 PLANER, 5HP 3PH 230/460V

’???????????’??????????ƒ?????????????????????????

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The 5" dust port connects easily to any dust collector. The cutterhead has four high speed steel knives and turns at 5,000 RPM producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.

’???????????’??????????ƒ?????????????????????????
was $5,467.13 Special Price $4,449.99
SKU
1791297

FEATURES

  • Cutterhead contains 4 high speed steel straight knives for a clean, smooth cut
  • Chip breaker and pressure bar assists to reduce snipe
  • Fully enclosed base cabinet with integrated casters for shop mobility
  • Chrome-plated, ergonomic handwheel makes adjustments smooth and easy.
  • Cast iron table with extensions creates a big 55-1/2" x 20" working area
  • Serrated steel infeed roller and smooth steel outfeed roller allows for 1/8" maximum depth of cut and trouble-free operation
  • Feed rollers and cutterhead supported by full cast iron head assembly for rigidity
  • 460V operation requires an additional 460V magnetic switch: 209-5016G

SPECIFICATIONS

’???????????’??????????ƒ?????????????????????????
Style (Type) Floor
Type of Cutterhead Straight Knife
Cutterhead Speed (RPM) 5,000
Cutterhead Diameter (In.) 3-3/16
Cuts Per Minute 20,000
Number of Knives 4 Straight High Speed Steel Knives
Maximum Depth of Cut (In.) 3/32
Maximum Full Width Depth of Cut (In.) 3/32
Maximum Planing Width (In.) 20
Maximum Planing Thickness (In.) 8
Minimum Planing Length (In.) 6-3/4
Feed Rate (FPM) 24/31 & 16/20
Number of Speeds 4
Table Size (L x W) (In.) 25-3/4 x 20
Table Support 4 Column
Digital Readout Inch / Metric
Dust Collection Minimum CFM Required (CFM) 900
Dust Port Outside Diameter (In.) 5
Motor Power (HP) 5
Motor Phase 3
Motor Voltage (V.) 230/460
Prewired Voltage (V.) 230
Wiring Remarks
460V requires additional magnetic switch
Motor Current (Amps) 14/7
Recommended Circuit Size (Amps.) 20/10
