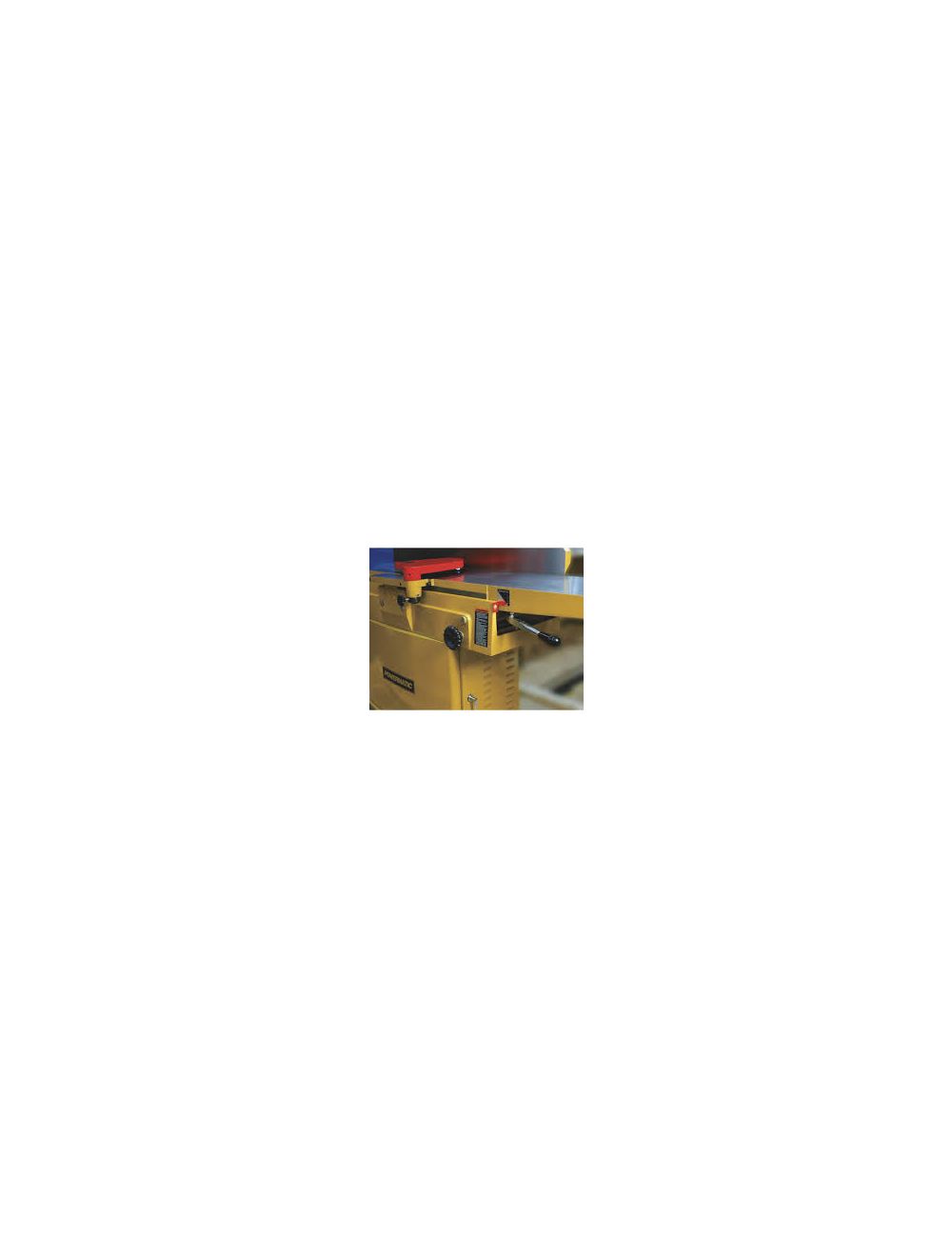

POWERMATIC 1285 JOINTER, 3HP 3PH 230/460V, HELICAL HEAD
This 12" jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily via rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45’???????????’??????????ƒ???????????????????????? in and out, and a positive stop for perfect 90’???????????’??????????ƒ???????????????????????? angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. Choose either the standard straight knife cutterhead or the helical cutterhead.
was
$10,811.42
Special Price
$8,799.99
SKU
1791308
’???????????’??????????ƒ?????????????????????????
SPECIFICATIONS
| Type of Cutterhead | Helical |
| Number of Knives |
42 Four Sided Carbide Helical Inserts, 2 Rabbet
|
| Helical Knife Size (L x W x T) (In.) | 1.18 x .472 x .079 |
| Cutterhead Speed (RPM) | 5,000 |
| Cutting Capacity (W x D) (In.) | 11-3/4 x 3/4 |
| Table Size (L x W) (In.) | 84 x 12 |
| Table Height from Floor (In.) | 31-5/8 |
| Rabbeting Capacity (In.) | 3/4 |
| Fence Size (L x H) (In.) | 47-1/4 x 5-1/4 |
| Fence Tilt (Deg.) | 45 Forward, 45 Backward |
| Fence Positive Stops (Deg.) | 45, 90, -45 |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Power (HP) | 3 |
| Motor Phase | 3 |
| Motor Voltage (V.) | 230/460 |
| Prewired Voltage (V.) | 230 |
| Recommended Circuit Size (Amps.) | 15/10 |
| Shipping Calculation: | All Shipping Costs are calculated after order is placed |
|---|
