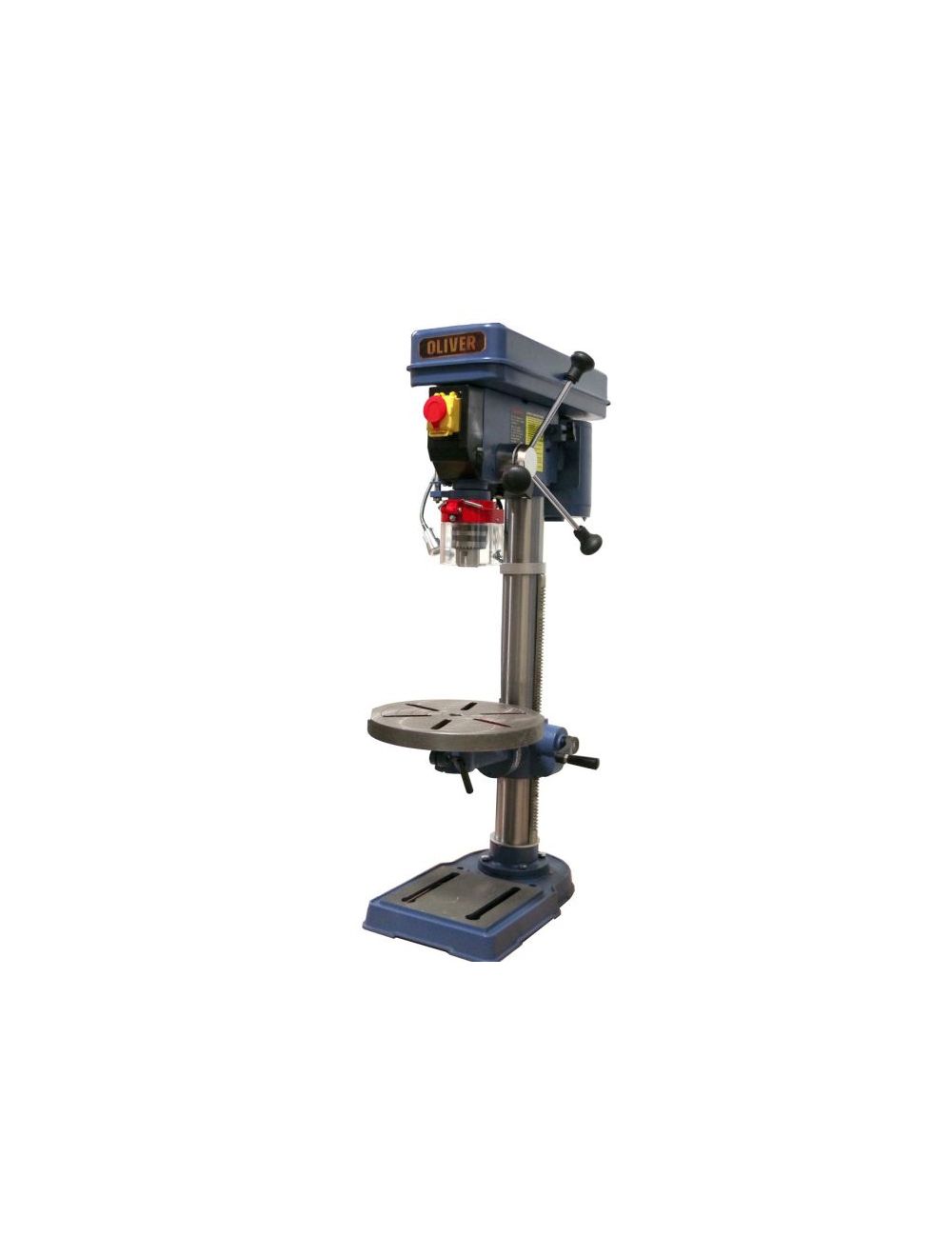

Oliver Machinery 14" Swing Bench Model Drill Press
| Model Number | 10060 |
|---|---|
| Stock Number | 10060.001 |
| Type | 14¢â‚¬Â Bench |
| Swing | 13-1/4¢â‚¬Â |
| Drilling Capacity | 3/4¢â‚¬Â |
| Chuck Capacity | 5/8¢â‚¬Â |
| Chuck Taper | JT-3 |
| Table Size | 11-1/2¢â‚¬Â Round |
| Table Tilt | +/- 45° |
| Spindle Taper | MT-2 |
| Spindle Travel | 3-1/8¢â‚¬Â |
| Spindle Speeds | 12 |
| Speed Range RPM | 280 to 3,000 |
| Spindle to Table | 17-3/4¢â‚¬Â |
| Spindle to Base | 25-1/4¢â‚¬Â |
| Column Diameter | 2-7/8¢â‚¬Â |
| Base Size | 9-5/8¢â‚¬Â x 16-3/4¢â‚¬Â |
| Overall Height | 38-1/2¢â‚¬Â |
| Motor | 1/2HP, 1Ph 115V (8 Amps) |
| Net Weight | 105 lbs. |
| Gross Weight | 120 lbs. |
$484.00
Availability:
In stock
SKU
O10060
- Available in bench or floor model version.
- Line interrupt switch requires manual start in the event of a power loss.
- Spindle is supported by high quality sealed ball bearings.
- LED lamp provides a well lit work area.
- Table rotates 360° and tilts 45°.
- Crank operation moves table up and down with locking clamp.
- Laser pointer is built-in for precise repeat drilling.
- Drill chuck guard included.
- 5/8¢â‚¬Âchuck and key holder included.
- Cast iron pulleys reduce vibration.
- Positive depth stop allows repeated operations with ease.
- Powerful 1/2 HP Motor.
| Shipping Cost | 170.00 |
|---|
