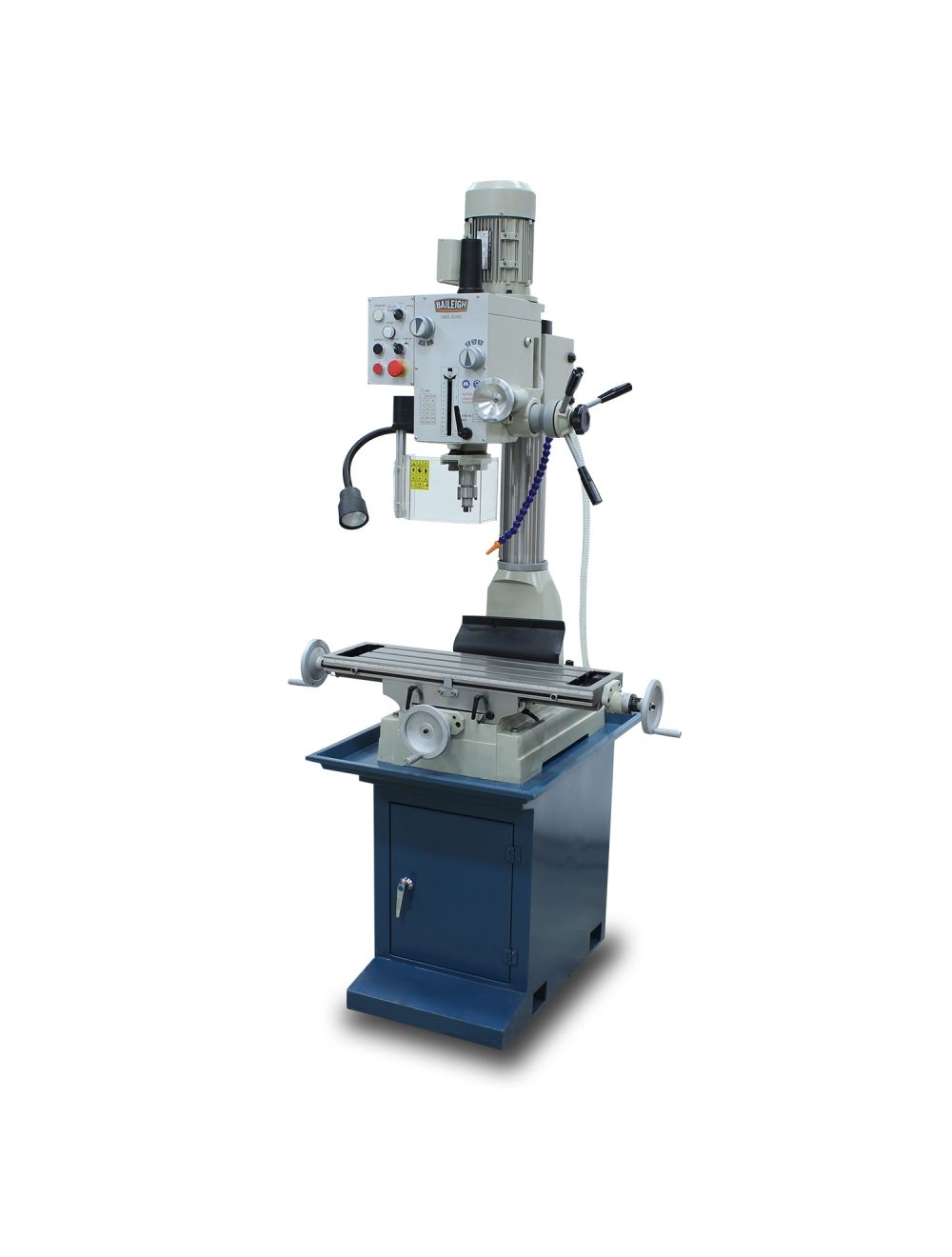

Don' t have the space for both a gear-driven drill press and a milling machine The VMD-828G combines 2 functions in 1 space-efficient machine. This mill drill lets you set the right speed for a given application, providing greater control and extending tooling life.
Don' t have the space for both a gear-driven drill press and a milling machine The VMD-828G combines 2 functions in 1 space-efficient machine. This mill drill lets you set the right speed for a given application, providing greater control and extending tooling life.
| Item Number | VMD-828G |
|---|---|
| Spindle Speeds | 90, 210, 345, 670, 1180, 1970 RPM |
| Table Size | 28.75" x 8.25" |
| Motor | 2 hp |
| X Axis Travel | 19-1/2" |
| Y Axis Travel | 9" |
| Spindle Nose to Base | 16.14" |
| Spindle Stroke | 4-3/4" |
| Spindle Taper | R8 |
| T Slots | .550" |
| Coolant Pump | 1/8 hp |
| Power | 110V |
| Shipping Weight | 815lbs |
| Drill Capacity | 1.5" |
| Spindle Travel | 4.75" |
| Shipping Dimensions (Inches) | 60x44x51 |
* specifications subject to change without notice.
