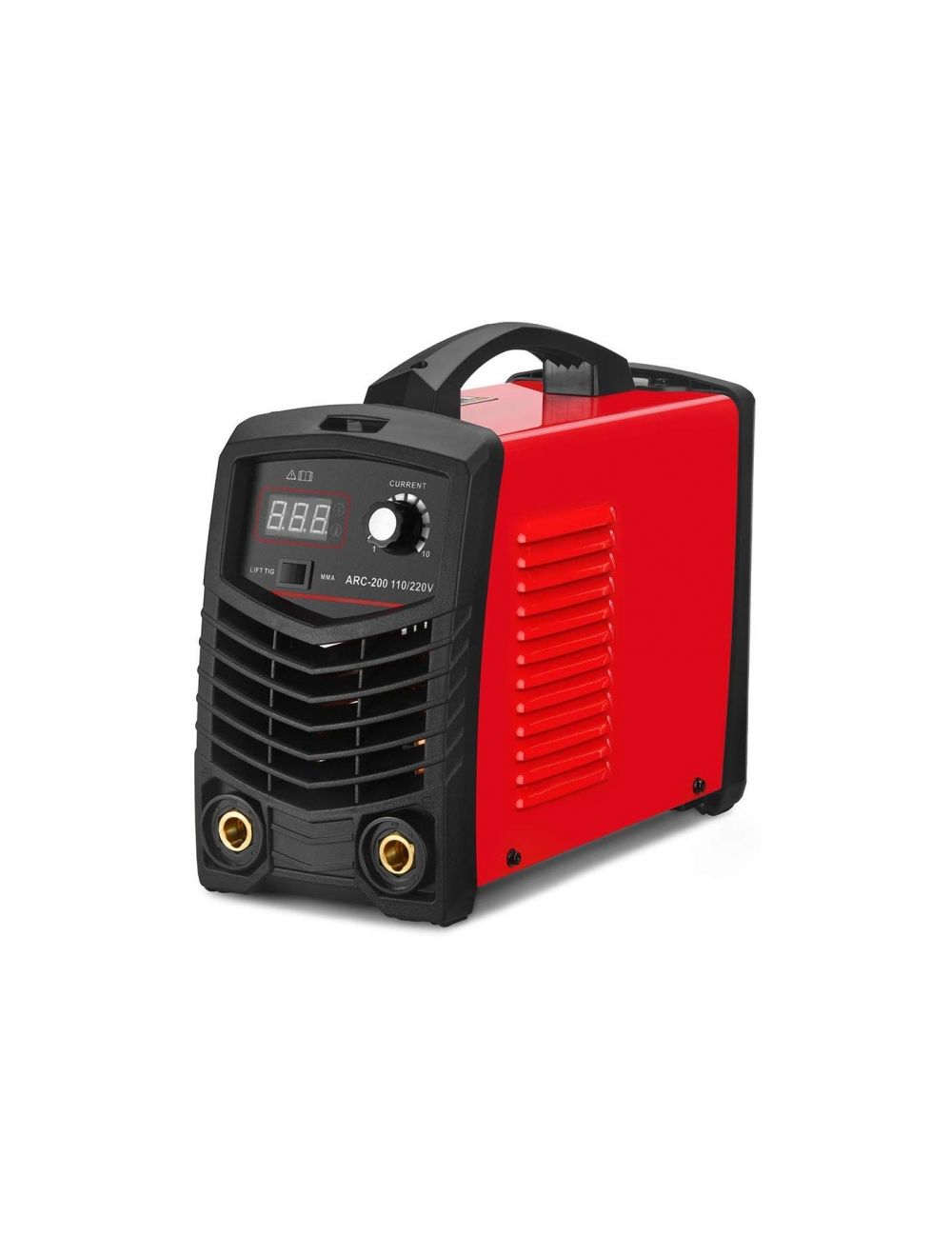

SGP ARC-200( MMA Welder, Lift TIG, Dual Voltage 110V 220V IGBT Digital Inverter Welder)

ARC MMA Welder 200A Lift TIG Welding Machine Dual Voltage 110V 220V

Description:

1.IGBT full bridge inverter technology, excellent Arc stability, hot arc start, anti-sticking, will help to get rid of the inconvenience during welding. Compatible with generator.

2.Lift TIG function: ARC200 has a TIG function, when touch the tungsten to the work pieces, the lift electric arc, which prevents the tungsten electrode from being contaminated with materials.

3.Powerful welder capable of welding mild steel, weld steel, stainless steel and cast iron. IGBT power device with unique control mode improves the reliability of welding machine.

4.Overload protection: Perfect self-protective function in cases of over-voltage, low-voltage, over-current, over-heat; safe and reliable.

5.Efficiency, energy saving, portable, stable arc, high no-load voltage, and with good compensation of arc force, easy arc starting, less spatter, stable current and good shaping.

Features:

1.Compact, light Weight, portable, digital display

2.Smooth welding current adjustment 20-200A

3. IGBT full bridge DC inverter technology

4. Hot arc start, anti-sticking,welding Current and arc force

5. DC MMA, Lift-TIG function, VRD

6. Compatible with generator

7. Can weld 1.6- 4.0mm electrode, It can be widely used in acid and basic electrode welding

8. Intelligent protection: Over-voltage, Low-voltage, Over-current, Over-heat

Specification:

Model:ARC-200 110V/220V

Rated Input Voltage(V):AC110/220V,50/60Hz

Rated Input Power(KVA):110V:6.8,220V:9

Rated Input Current(A):110V:62,220V:41

Rated Input Current&Voltage:160A/26.4V,200A/28V

Output Current(A):110V:20-160,220V:20-200

No-load Voltage(V):75

Rated Duty Cycle¯Â¼Ë†%¯Â¼â€°¯Â¼Å¡60

Efficiency(%):90

Power Factor(cosƒËœ):0.73

Protection Class:IP21S

Insulation Class:F

Package Size(Inch):18.5*13.4*7.9

Package Weight(LB):16
