Quantum Machinery 10 Foot Hydraulic Vertical Cut Shears with CNC Control

Quantum Machinery Roll Bender (Bend up to 3

Quantum Machinery Roll Bender (Bend up to 3" O.D. Round Tube)

Quantum Machinery Roll Bender (Bend up to 2" O.D. Round Tube) Regular price

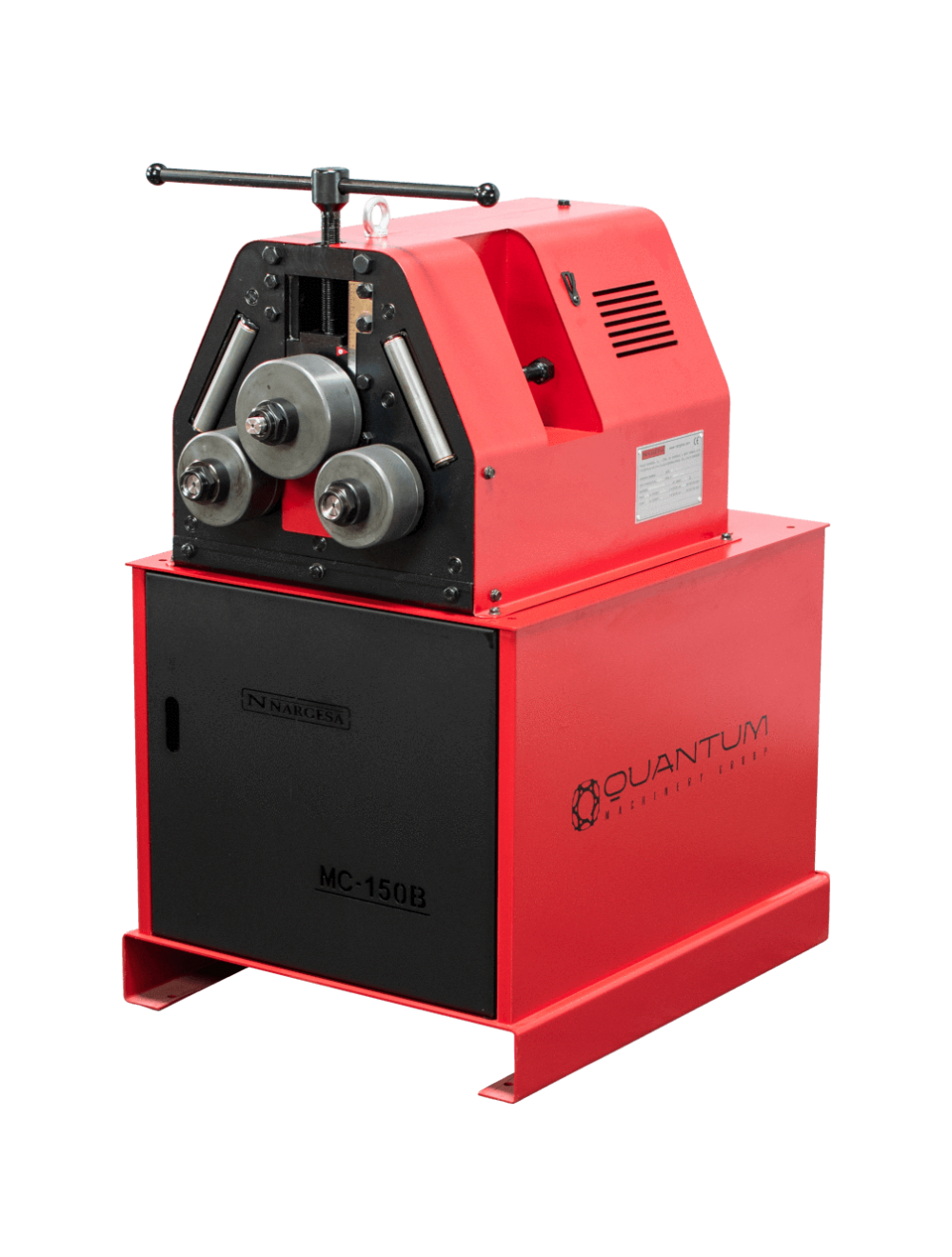

The NARGESA MC150B Section and pipe bending Roll Bender. Our pipe bender MC150B is designed to minimize the manufacturing cost and provide maximum performance when bending pipes and profiles. It has been manufactured for different profiles such as flat bar or bar section, T-profile, rolling U-profile, bending angle, bending solid rod, both square and round types, spiral tube or even to perform square, rectangular or round pipe in different materials: iron, carbon steel, stainless steel, brass, copper, aluminum. The purpose of these bending operations varies from making greenhouses, tables, chairs, car guards, doors, windows, railings, fences up to countless metal products.

$7,200.00
SKU
MC150B-1

THE MC150B BENDING CAPACITIES

  • Round Tube: 2" x .120" with a Minimum Radius of 24" Inches
  • Square Tube: 1.5" x 1.5" x .120" with a Minimum Radius of 14" Inches
  • Angle (Leg-Out): 1.5" with a Minimum Radius of 20" Inches
  • Flat Bar (Easy Way): 2.25" x 0.75" with a Minimum Radius of 8" Inches
  • Flat Bar (Hard Way): 2" x 0.315" with a Minimum Radius of 12" Inches
  • Solid Round: 1" with a Minimum Radius of 8" Inches
  • Solid Square: 1" x 1" with a Minimum Radius of 8" Inches
  • C-Channel (Easy Way): 2" with a Minimum Radius of 8" Inches
  • C-Channel (Hard Way): 2" with a Minimum Radius of 10" Inches
  • T-Channel (Easy Way): 1.5" x 1.5" with a Minimum Radius of 8" Inches

TECHNICAL SPECS AND FEATURES

  • Rollers Speed: 6 RPM
  • Diameter of Axes: 1.5"
  • Useful Axes Length: 2.9"
  • Motor Power: 0.75 KW / 1 HP
  • Dimensions: 37"L x 27"W x 45"H
  • Center Distance between Lower Axes: 9"
  • Millimeter scale for bending in the upper shaft.
  • Maximum Capacity for Bending Round Tube: 2 inches or 50 mm
  • Two working positions, horizontal and vertical in the same workbench.
  • Two drive rollers. The two lower rollers are motorized and knurled for better grip.
  • Manufacturer's Warranty: 3 Years on All Parts (Fulfilled by Quantum Machinery Group.)
  • Lower bench palletized to easily transport the machine to the workplace or store it in case of lacking space.
  • Correction rollers on the sides to control the bending deformation when making spirals and spiral staircases.
  • Bending regulation by the upper shaft, which allows to curve tube and profile dimensions and profiles of large diameter without deformation.
  • Secure transmission by using flat hardened pinions.
  • Base cupboard for rollers and accessories.
