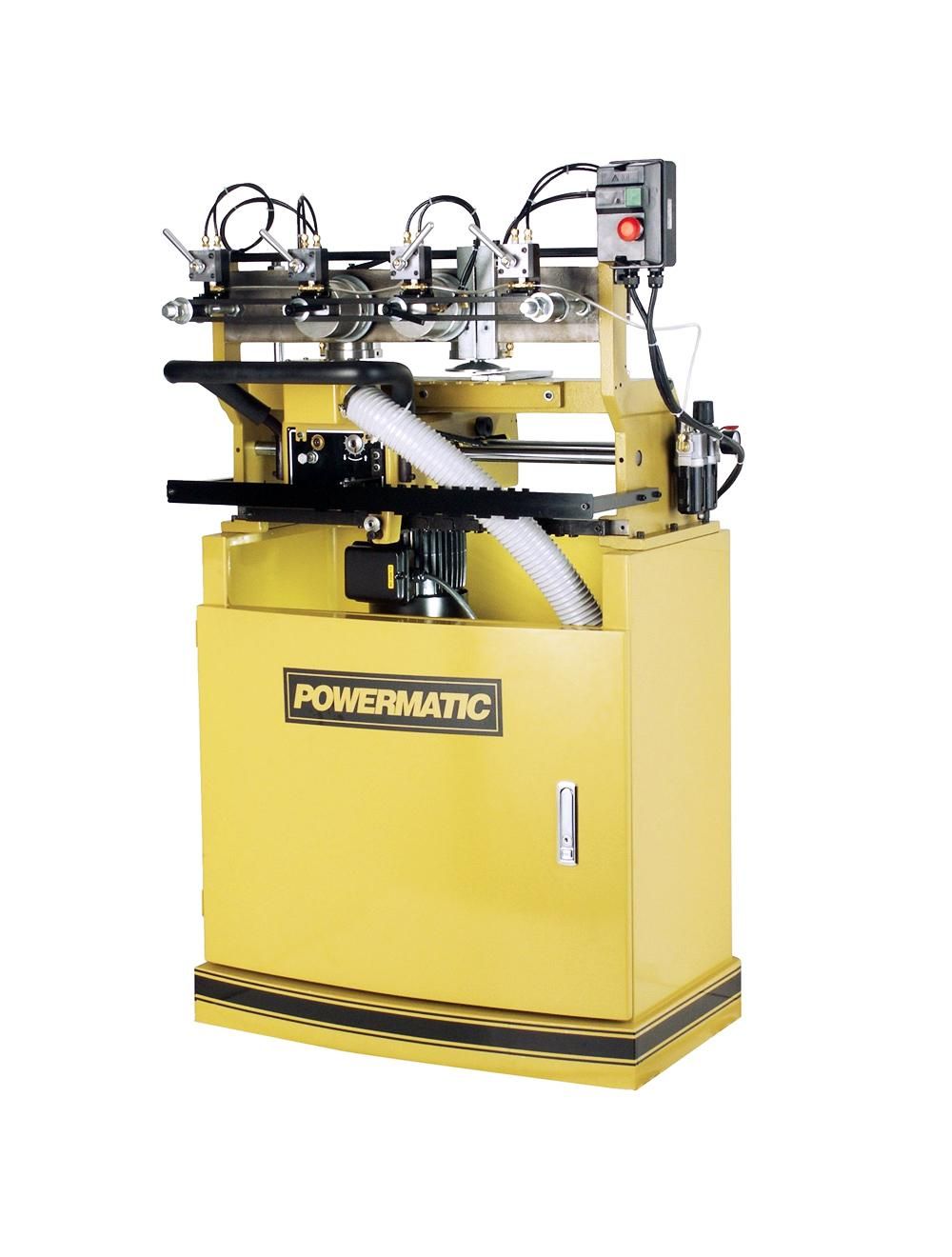

POWERMATIC DT65 DOVETAILER, 1HP 1PH 230V
The POWERMATIC® DT65 Single Spindle Dovetailer gives quality to the most popular joints of drawer construction. It provides an affordable way to produce cleanly cut, professional dovetails that will enhance your products. The DT65 is complete with 1HP 230V 1 phase motor, pneumatic clamping, magnetic starter, carbide tipped cutter, and a four-sided template that produces dovetails on 1", 1-1/2", 2", and 2-1/2" centerlines. The use of different dovetail centerlines gives a unique custom appearance.
$6,499.99
Availability:
Out of stock
SKU
1791305
FEATURES
- Pneumatic clamping provides quick locking and unlocking of the work piece
- Four dovetail centerlines at 1", 1-1/2", 2" and 2-1/2" create a custom appearance
- Eccentric spindle collet for resharpened cutters
- The precision linear carriage bearings are sealed on both ends to eliminate dust buildup
- Visual stylus and template aid in guiding the carriage
- Spring loaded carriage makes for smooth, effortless dovetail cutting
- Material stops provide convenient positioning of the workpiece
- Cast iron and steel construction for added stability and durability
- Cutter height of 3/16" to 3/4" accommodates different cutting depths and board thicknesses
- Extra large soft grip handle provides positive control and comfort
SPECIFICATIONS
| Style (Type) | Pneumatic |
| Number of Dovetail Center Lines | 4 |
| Minimum Work Piece Size (L x W)(In.) | 7-7/8 x 2-3/8 |
| Maximum Work Piece Size (In.) | 59 x 16-1/2 |
| Minimum Dovetail Height (In.) | 3/16 |
| Maximum Dovetail Height (In.) | 3/4 |
| Minimum Front Thickness (In.) | 9/32 |
| Maximum Front Thickness (In.) | 2-3/8 |
| Minimum Side Thickness (In.) | 3/8 |
| Maximum Side Thickness (In.) | 1-3/16 |
| Center to Center Dovetail Spacing (In.) | 1, 1-1/2, 2, 2-1/2 |
| Number of Spindles | 1 |
| Spindle Speed (RPM) | 18,500 |
| Table Height From Floor (In.) | 45 |
| Dust Collection Minimum CFM Required (CFM) | 500 |
| Dust Port Outside Diameter (In.) | 2-1/2 |
| Motor Power (HP) | 1 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 230 only |
| Prewired Voltage (V.) | 230 |
| Shipping Calculation: | All Shipping Costs are calculated after order is placed |
|---|
