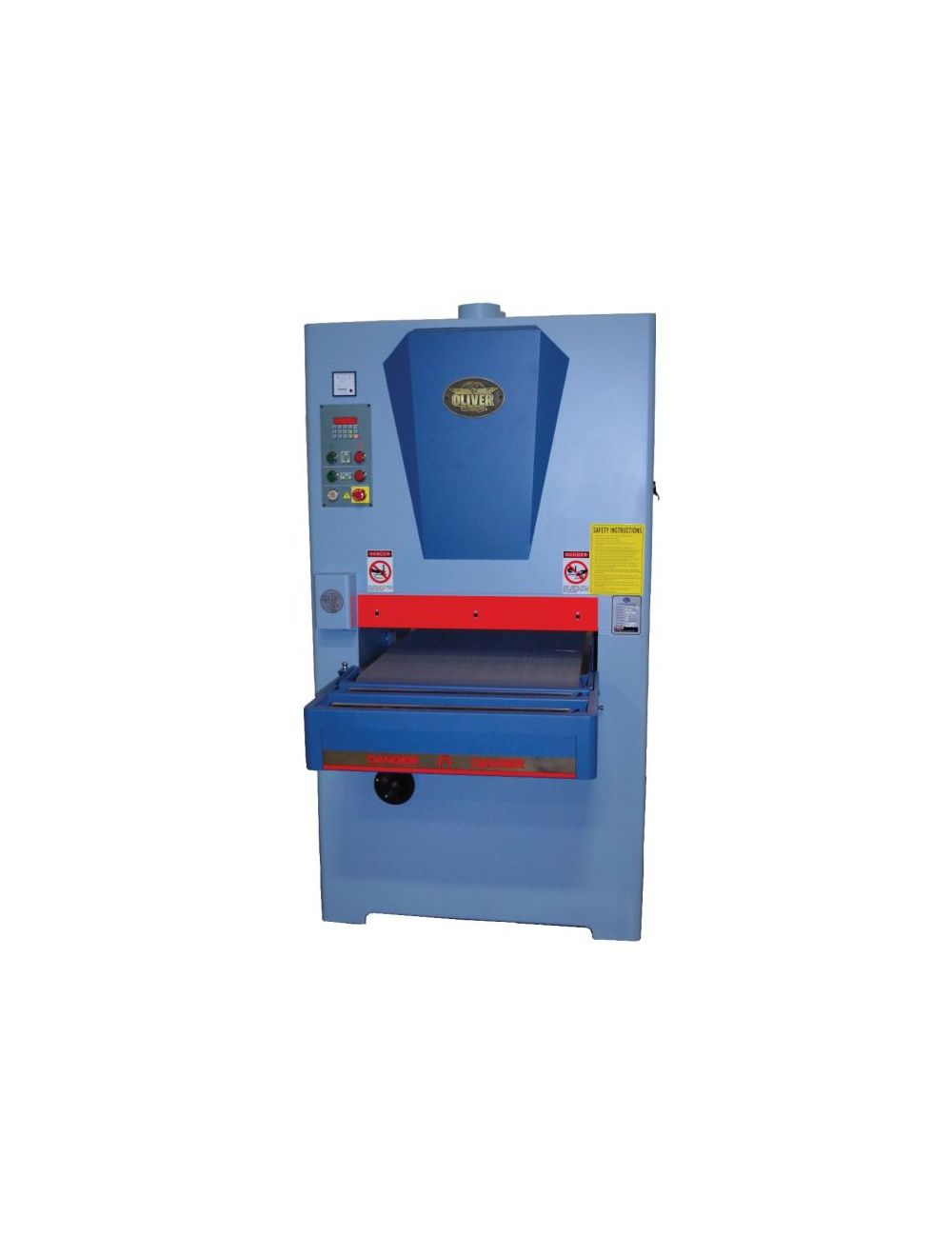

Oliver Machinery 25" Single-Head Wide Belt Sander
** CURRENTLY OUT OF STOCK TILL AUGUST 2020 **
$12,445.00
Availability:
In stock
SKU
O5355
- 75in belts give you longer life and less loading.
- Central control panel feature digital control for accurate stock height and removal.
- Heavy precision ground table gives a solid working surface.
- Power table height adjustment provides for a quick set-up.
- Variable speed feed motor allows precise adjustment for optimum results.
- Four post lift design assures accurate consistent results.
- Oscillating belt is controlled by an air sensor to prevent sanding lines.
- Platens are fully adjustable and can be removed.
- Multiple dust ports for efficient dust management.
- Independent motors run the sanding belt, feed conveyor, and table elevation for maximum power to each operation.
| Model Number | 5355 |
|---|---|
| Stock No. (15HP, 3Ph only) | 5355.002 |
| Maximum Stock Width | 25in |
| Maximum Stock Thickness | 5in |
| Minimum Stock Thickness | 1/8" |
| Air Requirements | 80 PSI |
| Exhaust Value Required | 800 CFM |
| Dust Port Diameter | 5" (x2) |
| Abrasive Belt Dimensions | 25inW x 75inL |
| Main Motor | 15HP, 3Ph, 220/440V* Prewired 220V (37/18.5 Amp) |
| Conveyor Motor | 1HP, 3Ph 220/440V Prewired 220V |
| Table Raising Motor | 1/4HP |
| Overall Dimensions | 53inL x 46inW x 85inH |
| Net Weight | 1,690 lbs. |
| Gross Weight | 1,985 lbs |
| Shipping Cost | 0.00 |
|---|---|
| Shipping Calculation: | All Shipping Costs are calculated after order is placed and inventory is confirmed |
