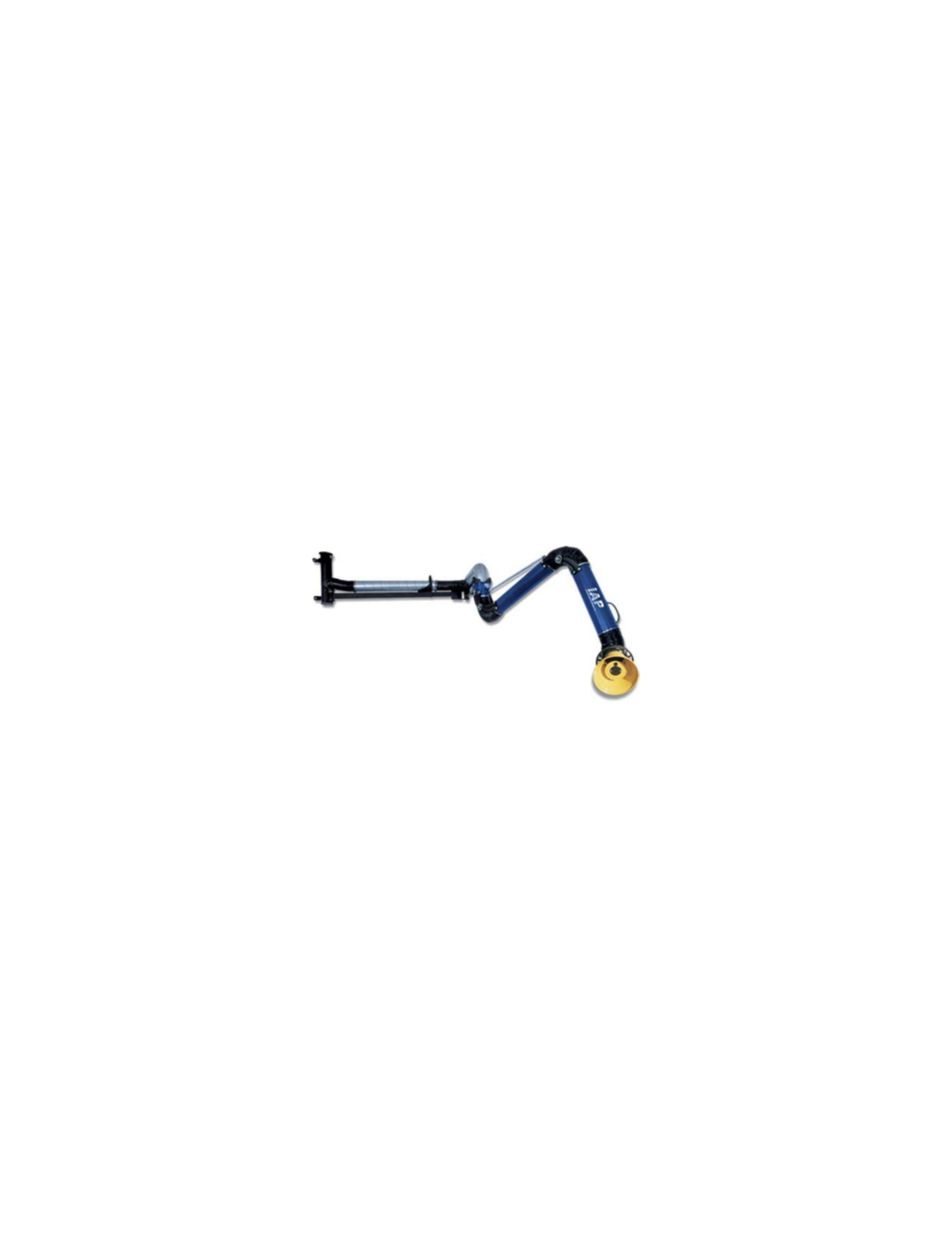

IAP Extension Booms
- Support Beam, steel, powder coated Black
- Spiral ductwork tube on support beam with black fire-retardant flexible hose joints
- Double pivot to aid in positioning (wall bracket and on horizontal boom)
- Adjustable friction swivel joints
Specifics:
- Support Beam, steel, powder coated Black
- Spiral ductwork tube on support beam with black fire-retardant flexible hose joints
- Double pivot to aid in positioning (wall bracket and on horizontal boom)
- Adjustable friction swivel joints
- Top outlet with straight inlet for duct connection. The straight outlet can be removed, and a 2 HP fan can sit on for the 6in boom; or a 3 HP fan can sit on for the 8in boom
- Boom inlet mates to IAP Fume Arms. Order mating arms in desired length to get total distance required
- All external adjustments
- Black hose, rated 195F (intermittent 260F)
- Recommend subtracting 3 of total equipment lengths to compensate for installation height variances. For example, if 30 is desired order 20 boom with 14 arm.
Lead Time: Stock (Request Quote for proper lead times)
| Part # | Diameter | Length | List Price |
| FA-EB-0610 | 6" | 10' | $4183 |
| FA-EB-0620 | 6" | 20' | $4708 |
| FA-EB-0810 | 8" | 10' | $5408 |
| FA-EB-0820 | 8" | 20' | $6283 |
Spare Parts:
| Description: | Part #: | List Price: |
| Hose, Standard Black, 6"arms | FA-HOS-0640-BLK/OM/EC | $41 per foot |
| Hose, Standard Black, 8" arms | FA-HOS-0800-BLK | $45 per foot |
| Friction Disc, 2 per 6" and 2 per 8" boom set, wall mount joint | FA-EB-FD-01 | $44 |
| Friction Disc, 2 per 6" and 2 per 8" boom set, middle joint | FA-EB-FD-02 | $40 |
| Shipping Cost | 0.00 |
|---|---|
| Shipping Calculation: | All Shipping Costs are calculated after order is placed and inventory is confirmed |
